77Expert(t) 2000
TM
Maintenance Manual
5. Using the joystick, extend the
Helping Hand
TM
along the hopper.
6. Raise the crusher panel (see
Figure 132. “Hopper”) using the
lever located on the main
hydraulic valve (see Figure 133.
“Crusher panel lever”);

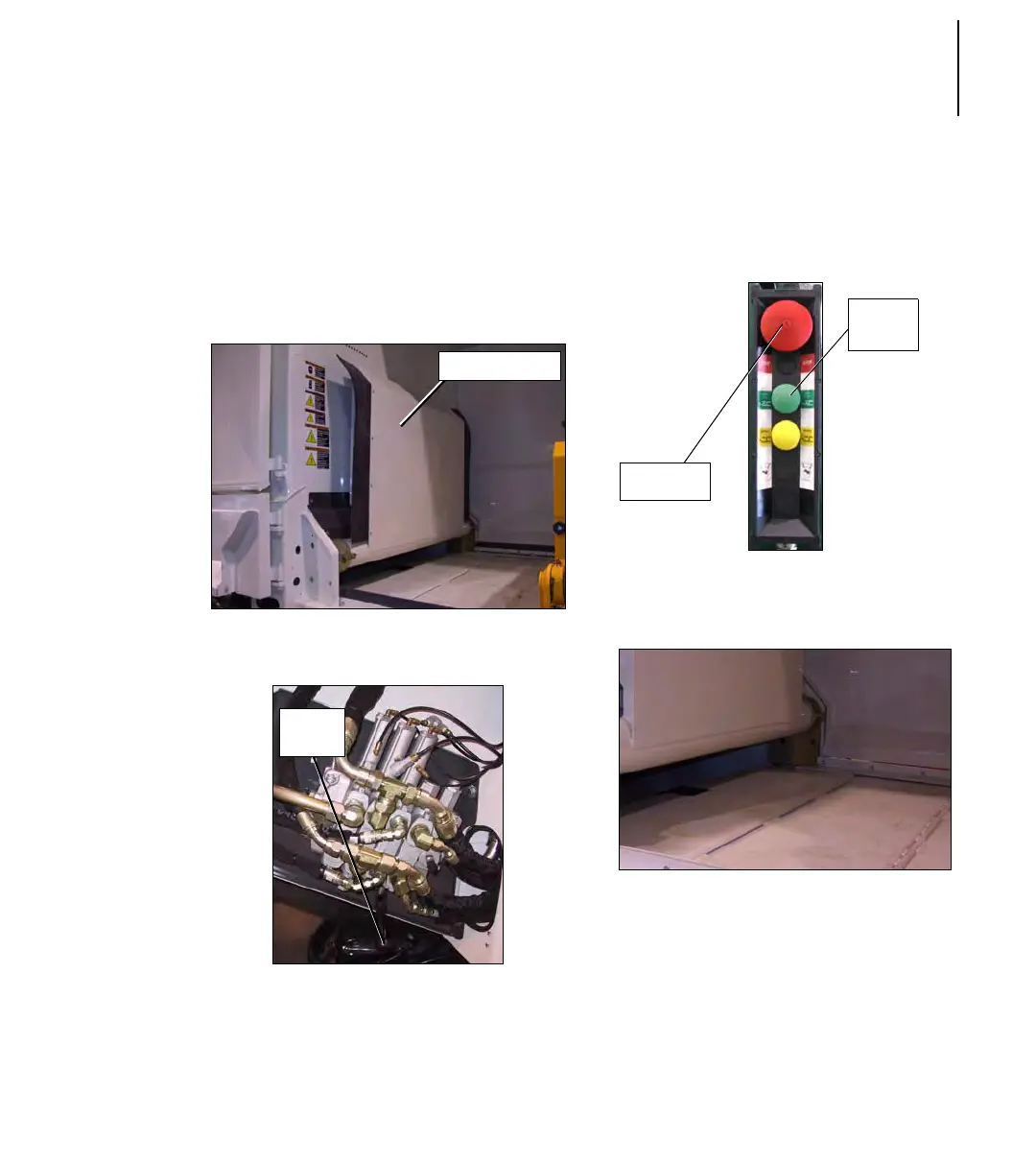

Figure 122. Hopper
Figure 123. Crusher panel lever
7. Push the green
START CYCLE
button to fully extend the packer,
then push the red emergency
STOP button when the packer is
fully extended.
Figure 124. Right-hand side control
station
Figure 125. Fully extended packer
8. Turn the engine and hydraulic
pump off;
Crusher Panel
Crusher
Panel
Lever
Emergency
Stop Button
Start
Cycle
Button
