Labrie MINIMAX Maintenance Manual

32 General Maintenance

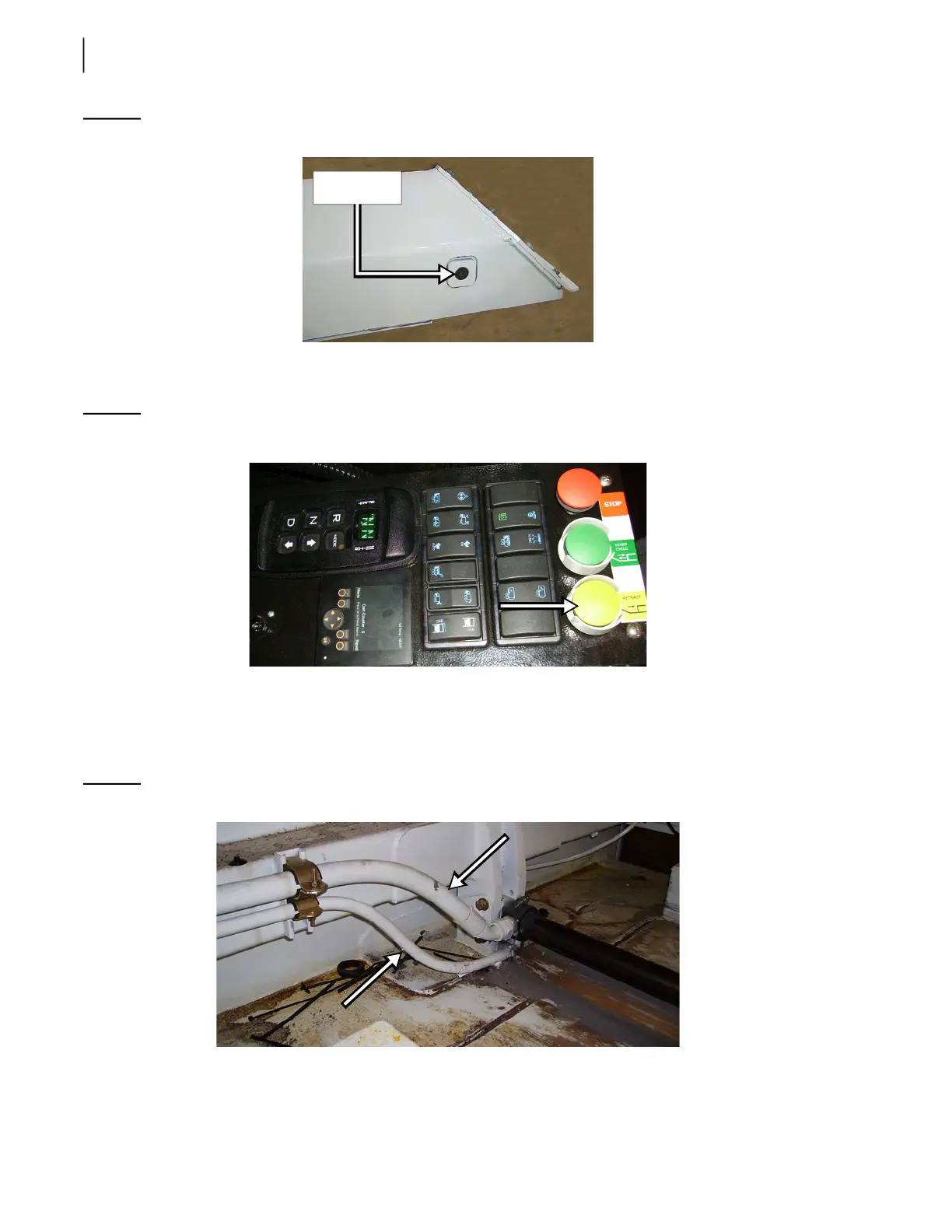

Figure 3-12 Removing the packer
8. On the packer control station, press the yellow PACKER RETRACT button to retract the cylinder
(see Figure 3-13).
Figure 3-13 Packer retract button
9. Disengage the pump and turn OFF the engine.
10. Proceed with the lockout/tagout procedure. Refer to “Locking Out and Tagging Out the
Vehicle” on page 20.
11. Disconnect both hydraulic hoses from the cylinder fittings.
Figure 3-14 Cylinder hoses
12. Cap each hose and cylinder fitting as soon as they are disconnected.
13. Remove all bolts that hold the cylinder in place.
Cylinder pin
