Labrie MINIMAX Maintenance Manual

36 General Maintenance

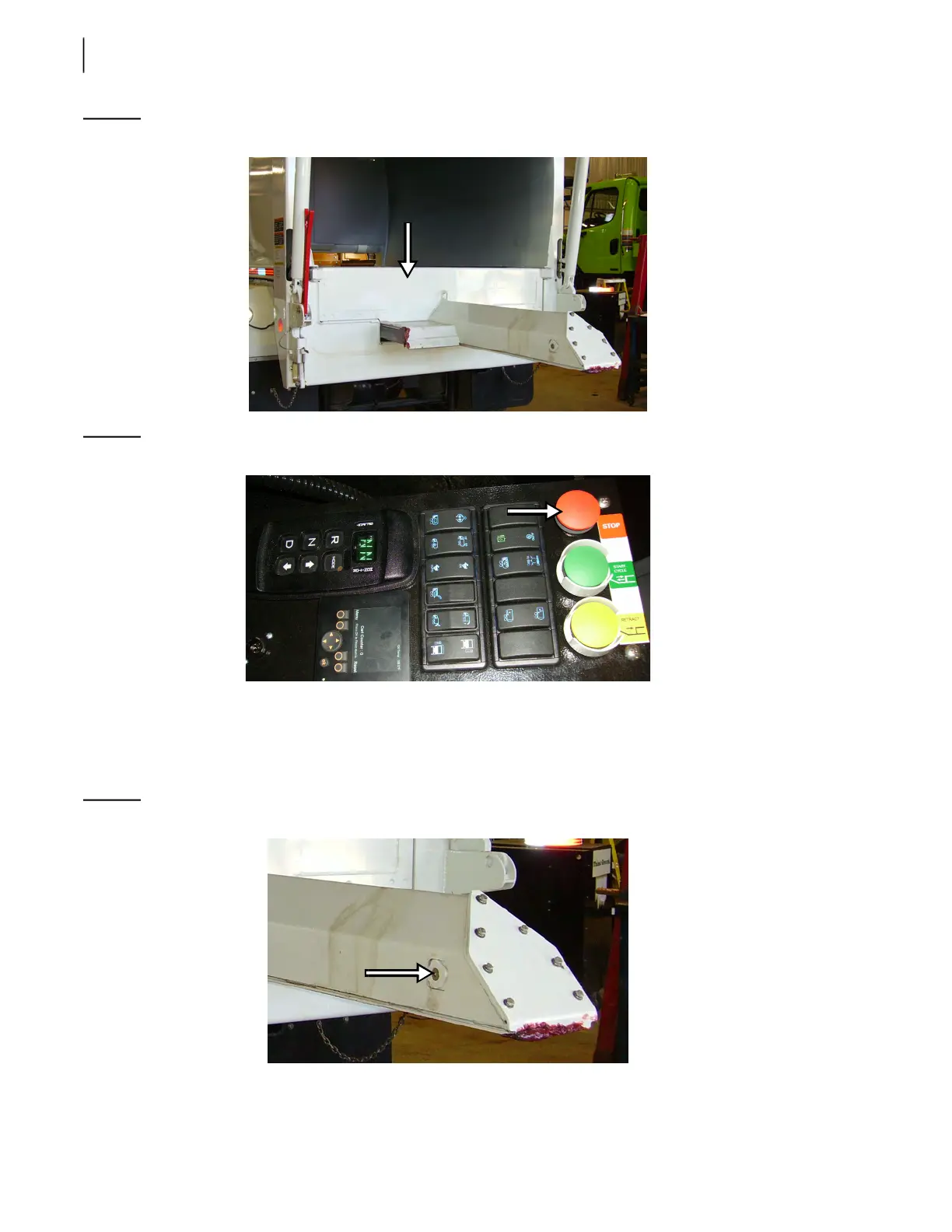

Figure 3-19 Packer in fully extended position
Figure 3-20 Emergency stop button
6. Proceed with the lockout/tagout procedure. Refer to “Locking Out and Tagging Out the
Vehicle” on page 20.
7. Unscrew the bolt (see Figure 3-21) at the left-hand side of the packer tip to remove the cylinder
pin.
Figure 3-21 Bolt to unscrew
8. Remove the cylinder pin (see Figure 3-22).
