3. INSTALLATION
12

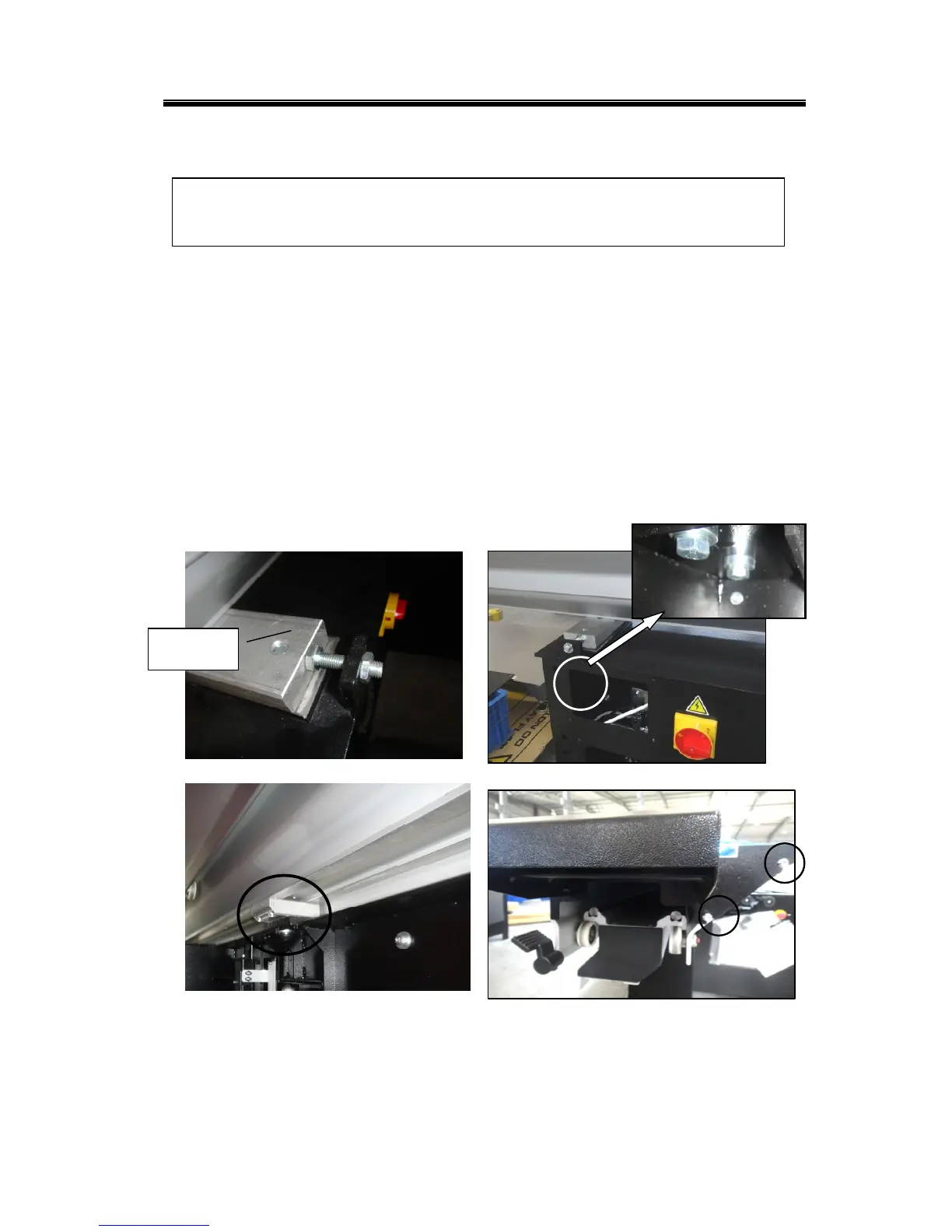

3-3.FITTING THE SLIDING TABLE
The accessories bag contains hex head bolts for fixing the sliding table
Note: The parallelism has been adjusted before shipping, users only need to
assemble by following the steps below. Then the position of sliding table will be
correct.
1. Put the sliding table on the machine frame
2. Po
sition the fix blocks on 2 sides set points as Fig. 3-3.1a
3. Lock the screws (2 sets on each side) on 2 sides to fix the sliding table on the
machine frame. (Fig. 3-3.1b)
4. Lock the middle fix block of sliding table on the machine frame. (Fig. 3-3.1c)
5. To assemble for the handle of sliding table, fit the screws in as Fig. 3-3.2 shows.
For packing and transport reasons, some machine members are removed.
All fitting operations in this section require approx. 4 people
Figure 3-3.2
Figure 3-3.1a
Figure 3-3.1b
Fix block
Figure 3-3.1c
