3. INSTALLATION
27
3-13. WIRING & TEST RUN
I. WIRING
1. Make sure that the electric system of the workshop may absorb the machine
power and the grounding system follows the prescriptions in force.
Notice: Comply with local codes to prevent fire accident.
2. The power cord section need to fit motor power rating
3. Please CUT OFF power source before open the terminal box for the electrical
connection. The connection terminals for the supply cables are marked with L1,
L2, L3, N and PE
4. Make sure all electrical circuits are grounded before y
ou connect them to the
machine.
5. If the motor wrong rotary, the power source is connected to the reverse phase.
Please change the incoming wire L2 and L3.
II. TEST RUN
1. Turn the main switch ON. (Fig.3.13.2)
2. Test run the main blade rise/fall
3. Test run the main blade tilting
4. Test run the main blade
5. Test run the scoring blade
※ Make sure machine operator is to be
trained for the use, adjust and operation.
※ All operations requiring the demounting of
machine components must be carried out only by suitable skilled and authorized
personnel. Keep the safety prescriptions as well as the general work safety
regulations.
※ If any problems happen, press the emergency STOP button. If you need help,
please take the troubleshooting section of this manual or contact your local
agent.
※ Always wear safety glasses, a respirator, and hearing protection and NO
smoking when operating this machine

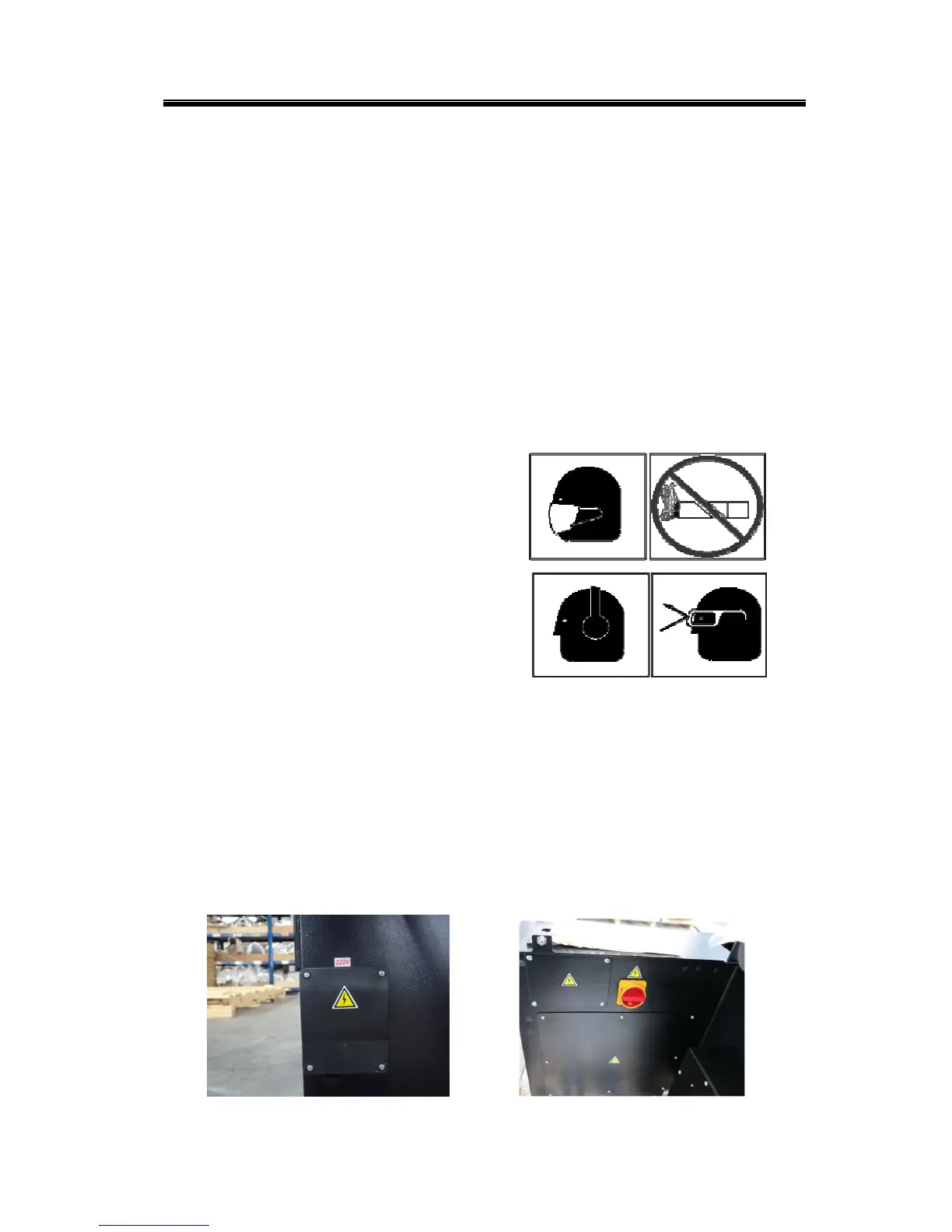

Figure 3-13.1 Figure 3-13.2
