4. OPERATION
26
4-1. SAW BLADE LIFTING AND TILTING
I. SAW BLADE LIFTING
1. Turn hand wheel B (Fig. 4-1.1) counter clockwise: the saw blade rises.
2. Adjust the saw blade height according to the work piece thickness.
3. The saw blade height must exceeds the piece thickness 1 ~ 1.5cm
4. Set the guard C (Figure 4-1.1a) to a max. Height 4 ~ 5mm from the work piece.
II. SAW BLADE TILTING
1. Turn hand wheel A(Fi
g. 4-1.1) to tilt the saw blade up to the demanded degree
based on scale

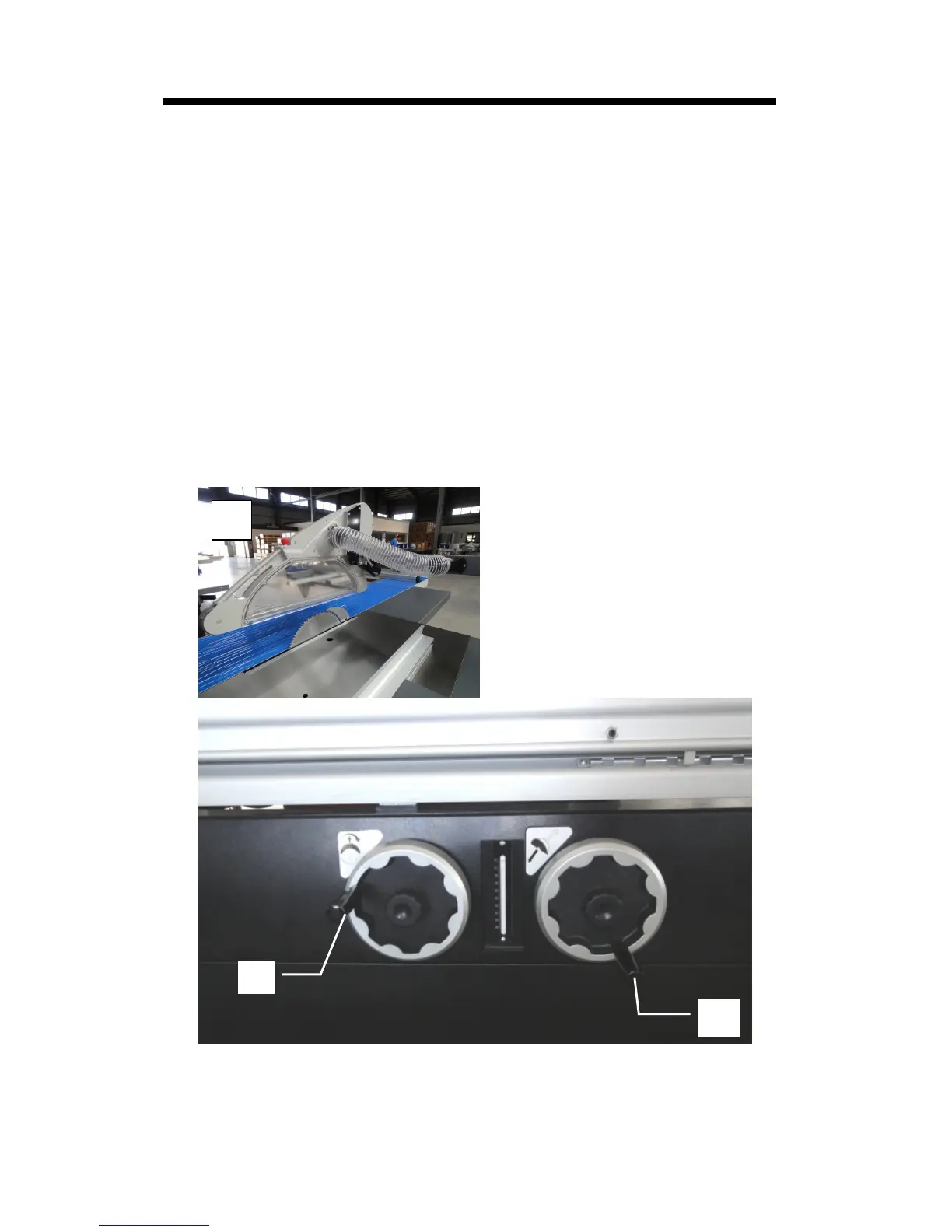

Figure 4-1.1
A
B
Figure 4-1.1a
C
