4-2. SCORING BLADE ADJUSTING
I. SCORING BLADE HEIGHT ADJUSTING
1. Loosen nut A (Fig. 4-2.1)
2. Turn the knob B (Fig. 4-2.1) till the scoring blade has reached to the height
desired, then tighten nut A (Fig. 4-2.1)
3. The projection adjusting range varies from 0 to 5mm
※ NOTE: When it is not necessary to use the scoring blade, make it lower than the
table.
II. ALIGHING THE SCORING BLADE WITH THE SAW BLADE :
1
. The operator has to do some cutting tests.
2. Loosen nut C (Fig. 4-2.1)
3. Turn draw bar D (Fig. 4-2.1) to the desired position, and tighten nut C (Fig. 4-2.1)
turn clockwise, the scorer move to left turn counter clockwise , the scorer move
to right
4. The range for traverse adjustment of the scorer is approx. +/-2mm
※ NOTE: Test cut to check the alignment is necessary.
CAUTION:
During the machine use with scoring unit, pay attention when the
sliding table is totally on the left, a part of the blades remains
uncovered. (Figure 4-2.2)

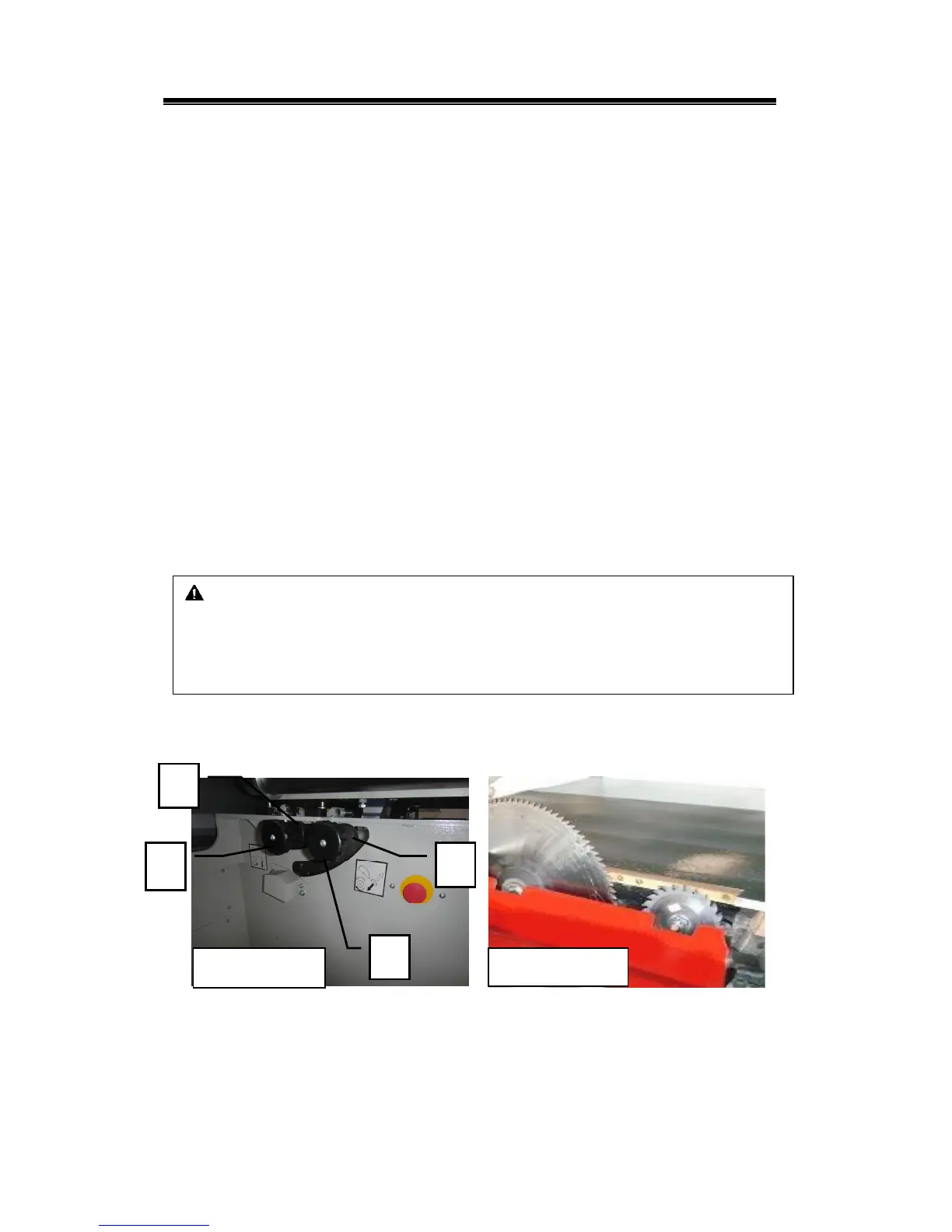

Figure 4-2.1
A
B
D
C
Figure 4-2.2
