5. MACHINE MAINTAINESS
41
5-3. REPLACING BELT
Disconnect the machine from the electrical and pneumatic system
I. REPLACING THE SCORER SPINDLE BELT
1. Remove the rear door

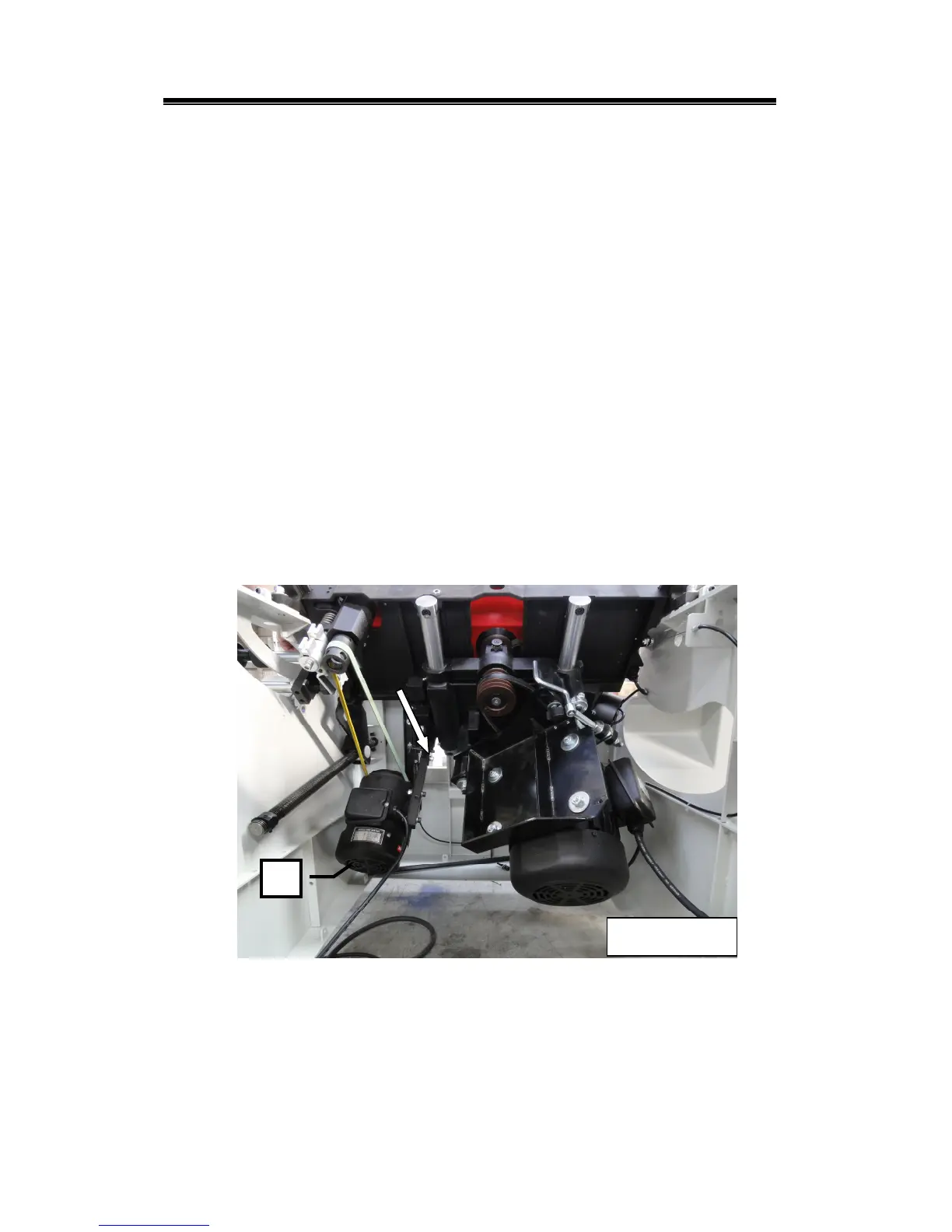

2. Lift the small motor A (Fig. 5-3.1). When the belt is slack, it can be replaced
3. Replace the new belt then lower the motor.
Note: Be aware of the arrow direction marked on the belt and follow it to fit
the belt.
4. Manually make the belt cover 2 or 3 complete turns, so
that it can get the right
settling.
5. Fit the rear cover again
※ The belt will always be stretched by the motor weight.
A
