III. RULE ADJUSTING FOR OBLIQUE CUTS

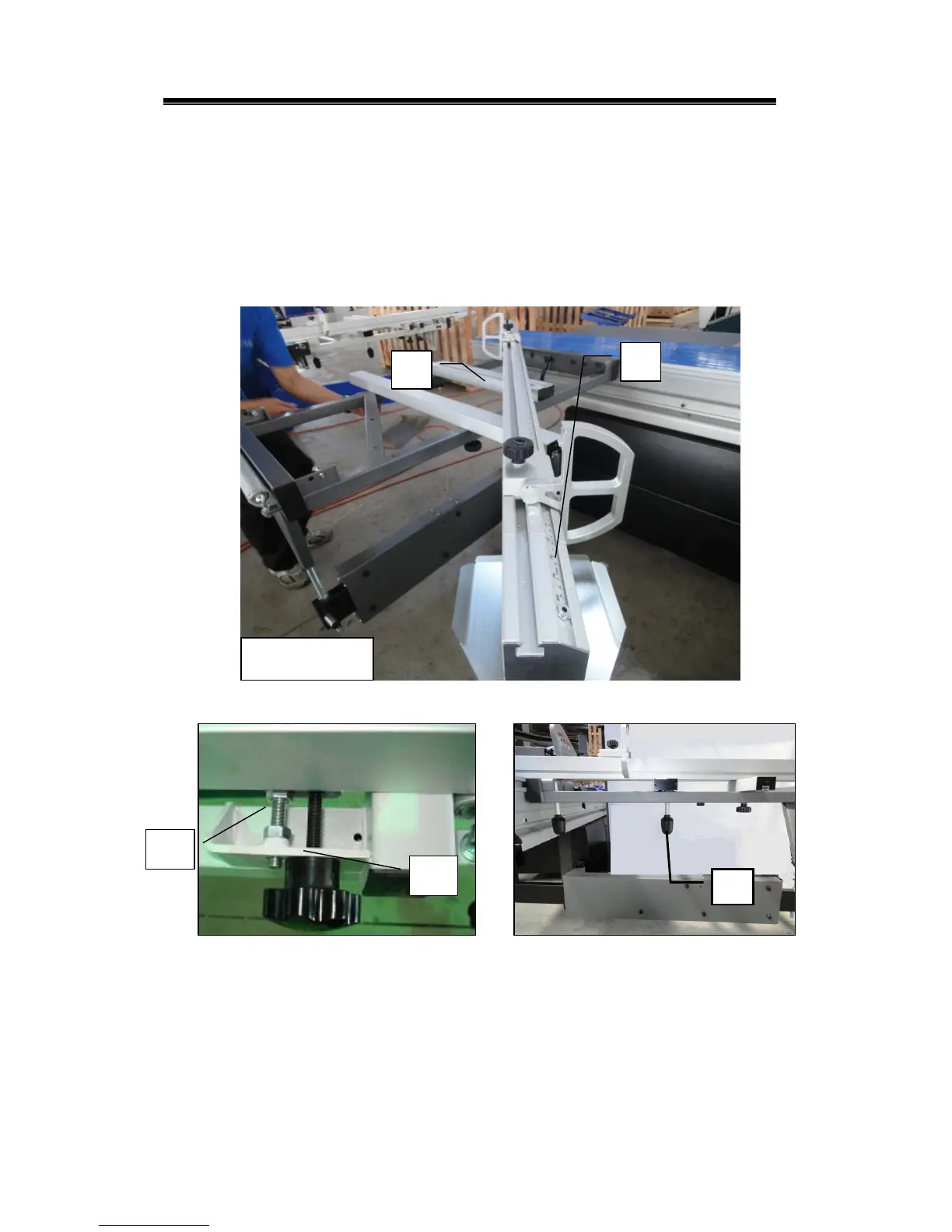

1. Loosen knob D(Fig. 4-7.4a)& F(Fig. 4-7.4b) to change position of crosscut fence
2. Adjust the position for making sure the right side of the fence A (Fig. 4-7.4)
aligning with the desired angle.
※ Note: B (Fig. 4-7.4) part indicates the angle value.
3. After adjust it to your desired angle, tighten the knob F(Fig. 4-7.4b).
C
D
Figure 4-7.4a
A
B
Figure 4-7.4
F
Figure 4-7.4b
