4-7 SETTING THE CROSSCUT FENCE
1. Turn threaded nut C (Fig. 4-7.1a) to make crosscut fence exactly vertical with
sliding table. Then lock knob D (Fig. 4-7.1a) to fix A (Fig. 4-7.1.
2. Turn on the machine, then trimming the panel with the crosscut fence.
B
A

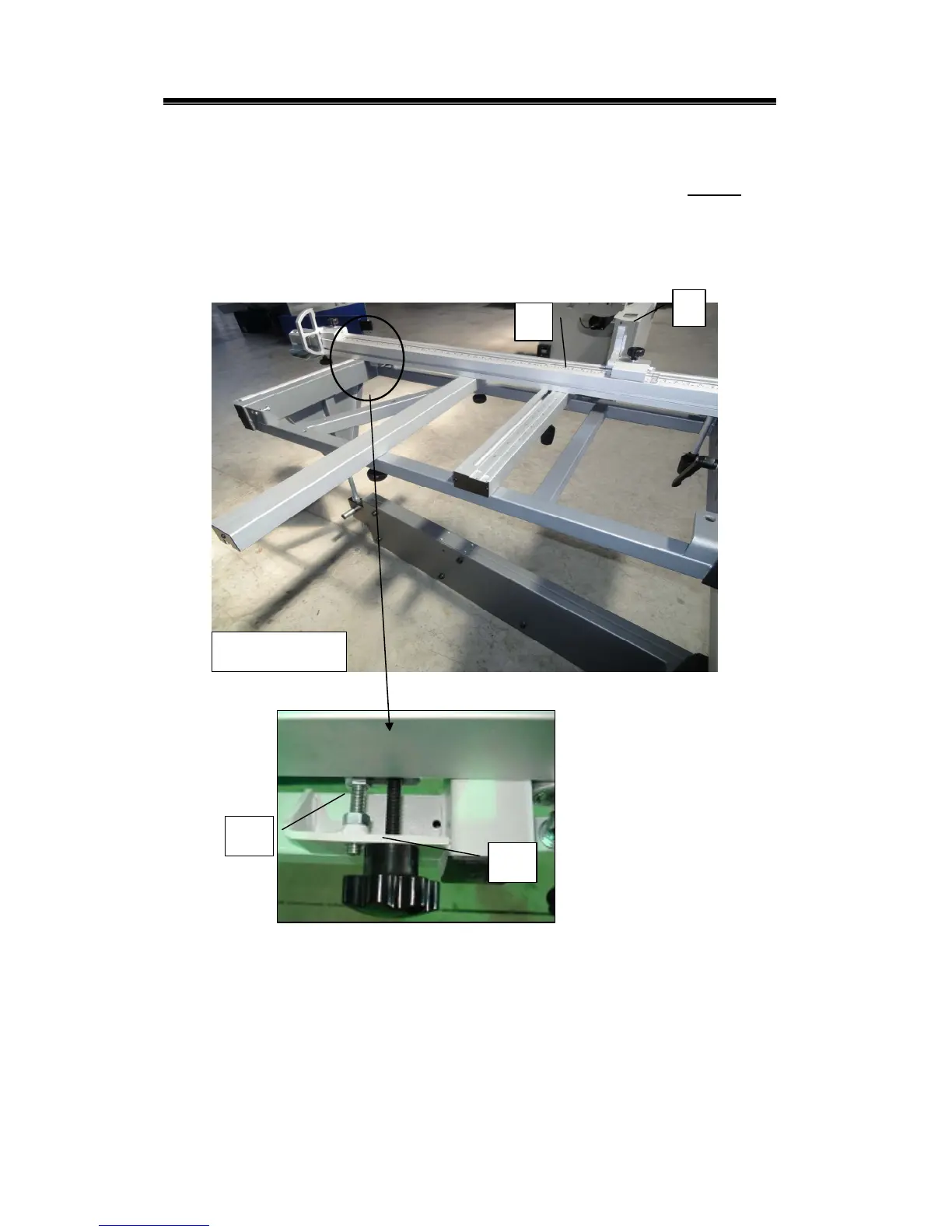

Figure 4-7.1
C
D
Figure 4-7.1a
