4. OPERATION
35
I. SQUARE CUTTING TEST
1. Lock all knobs for crosscut fence.
2. Lower the guard, then do test trimming to A, B, C & D (Fig. 4-7.2) of the testing
panel.
3. After cutting, measuring the cutting width of E & F (Fig. 4-7.2). As a test for
square cutting, the length of them MUST be the same.
- If they are not the same, operator must:
1. Make sure the crosscut fence and sliding table are exa
ctly vertical.
2. Readjust the screw C (Fig. 4-7.1a) and make crosscut fence and sliding table
exactly vertical.
- If they are the same, then the testing procedure finished.
II. EXTEND MILLIMETER RULE
For cutting panels of width exceeding 1860mm, you have to use the extension part A
(Fig. 4-7.3) and follow steps below:
1. Loosen knob B(Fig. 4-7.3)
2. Move extension part A (Fig. 4-7.3).
Note: point C (Fig. 4-7.3) indicates the width value.
3. After move the extended millimeter rule to your desired length by read out the
value from point F (Fig. 4-7.3), tighten the knob B(Fig. 4-7.3) for fixing.

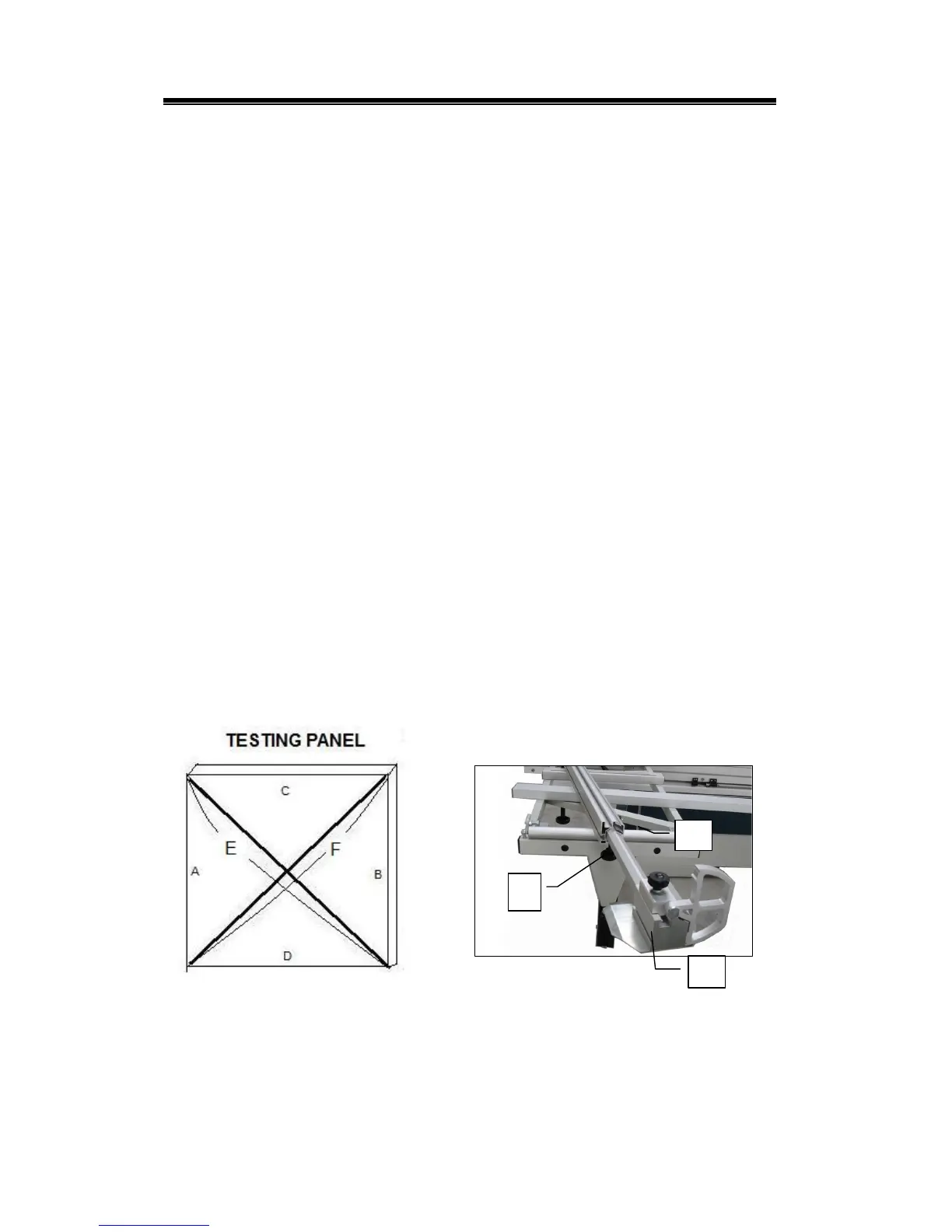

Figure 4-7.2 Figure 4-7.3
B
