112
9
Appendix
9.12

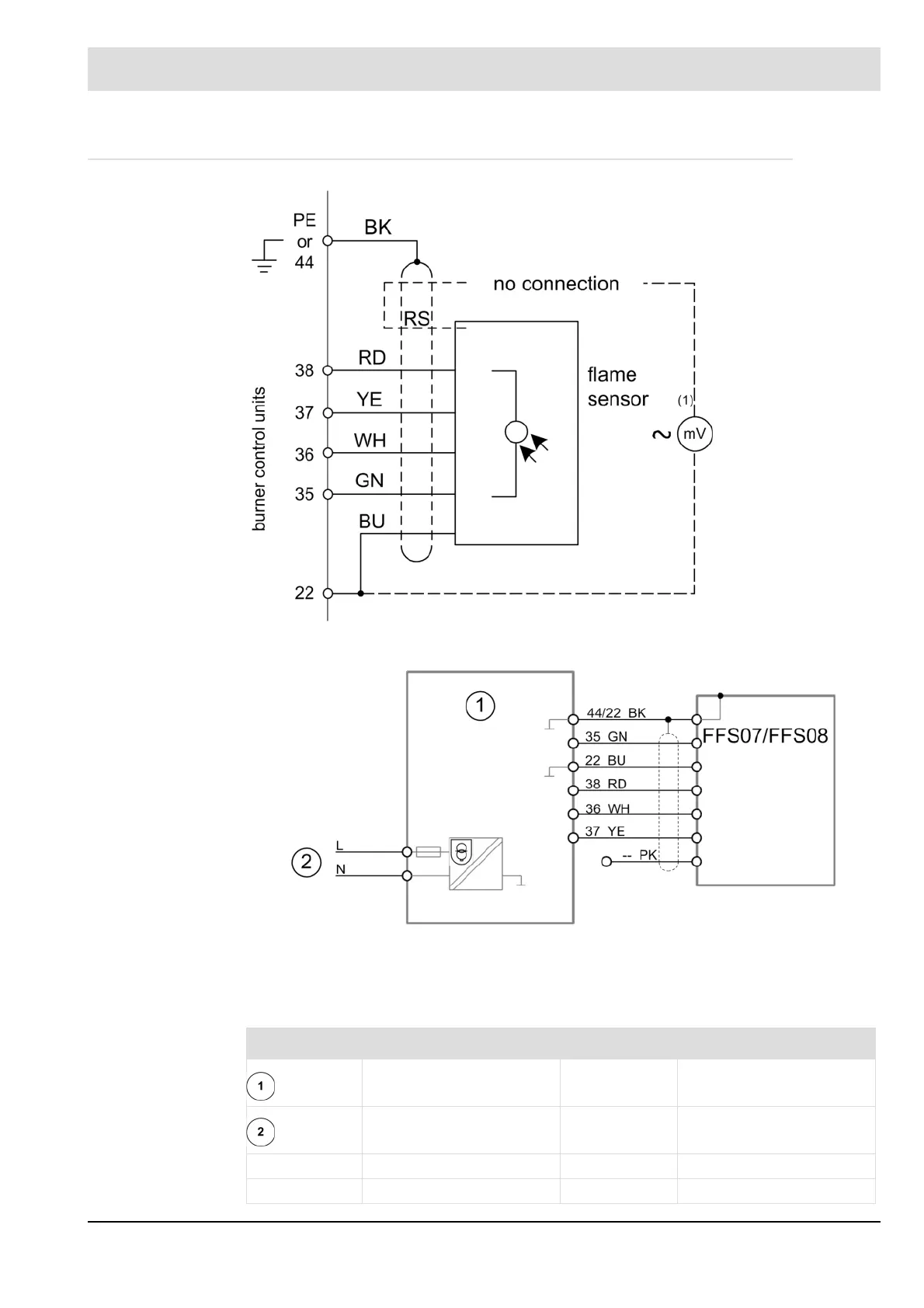

Connection Flame Scanner
Fig. 9-1
1 Connection flame scanner
Fig. 9-12 Connection flame sensor FFS07/FFS08
Flame intensity to align the flame sensor (not connected during operation) with delivery of
01.01.2003 on.
Abbreviation
Description
Abbreviation
Description
ET
AMA
TIC
Net
BK
Black
WH
White
PK
Pink
GN
Green
112
114
