9 Appendix
Selective list of Turck NAMUR sensors
9.18.3 Circuit proposal 3-Wired Speed Sensor with Higher Power Supplay Voltage

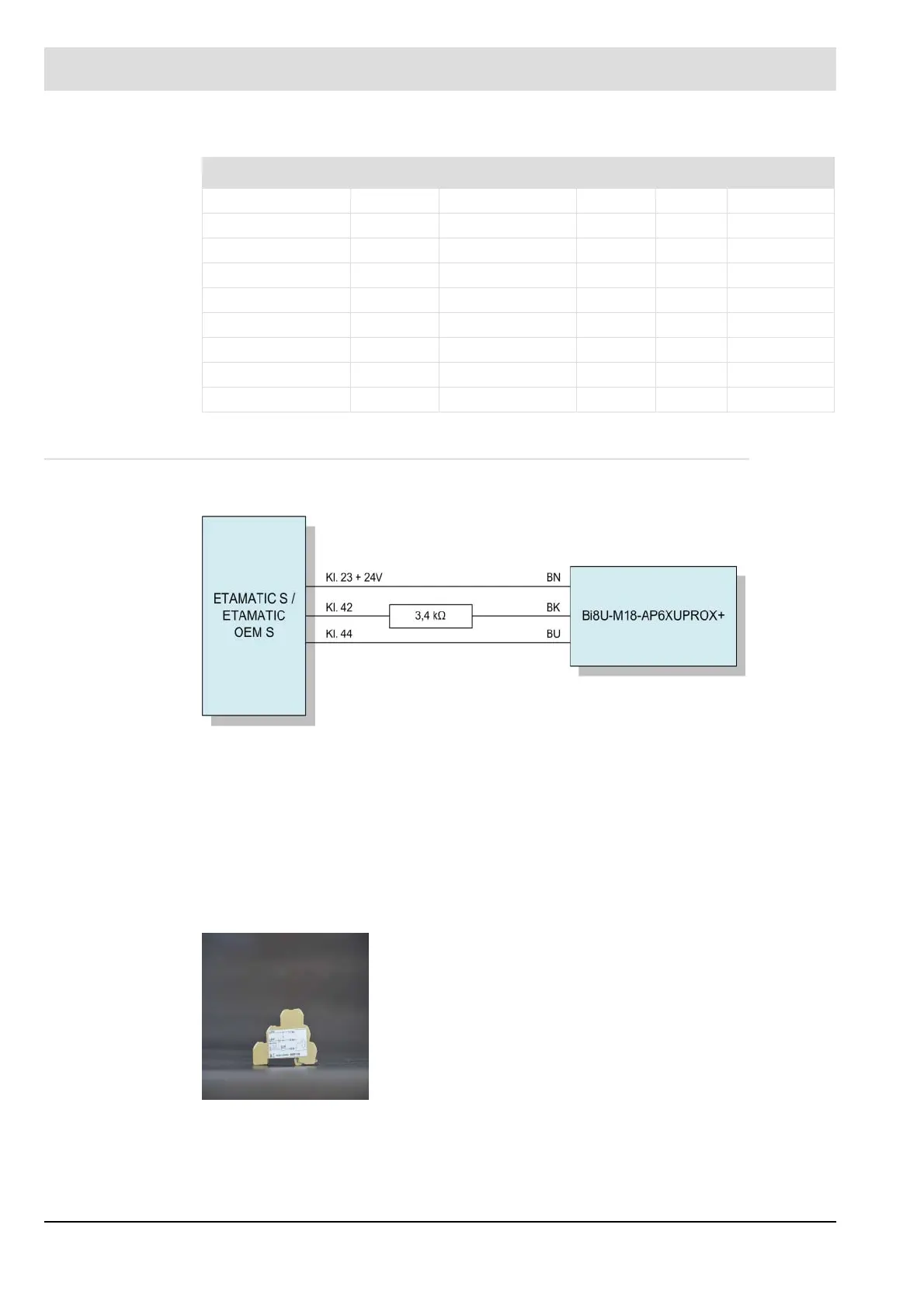

Fig. 9-35 3-wired sensor Turck Bi8U-M18-AP6X Uprox+ with modified power supply
Power supply: 24 V
Pulse voltage: ca. 11 V
ETAMATIC S is provided with a 3-wired pick up sensor with approx. 13 V voltage. This is suf-
ficient for Turck Bi4-M12-AP6X as it is tested and approved by LAMTEC. For pick up sensor
which requires a higher power supply voltage (e.g. Turck Bi8U-M18-AP6X UPROX+) the cir-
cuit should be as described in Fig. 9-35 3-wired sensor Turck Bi8U-M18-AP6X Uprox+ with
modified power supply
Suitable intermediate terminal : 663R1193
Type sn [mm] sn x 0,8 [mm] D [mm] f [Hz] Installation
Bi1-EG05-Y1 1 0,8 5 5.000 flush
Bi1,5-EG08K-Y1 1,5 1,2 8 5.000 flush
Ni3-EG08K-Y1 3 2,4 8 5.000 non-flush
Bi2-G12-Y1 2 1,6 12 5.000 flush
Ni5-G12-Y1 5 4 12 2.000 non-flush
Bi5-G18-Y1 5 4 18 1.000 flush
Ni10-G18-Y1 10 8 18 500 non-flush
Bi10-G30-Y1 10 8 30 500 flush
Ni15-G30-Y11 15 12 30 200 non-flush
