1 General Information
1.2 Variants - Device Configuration

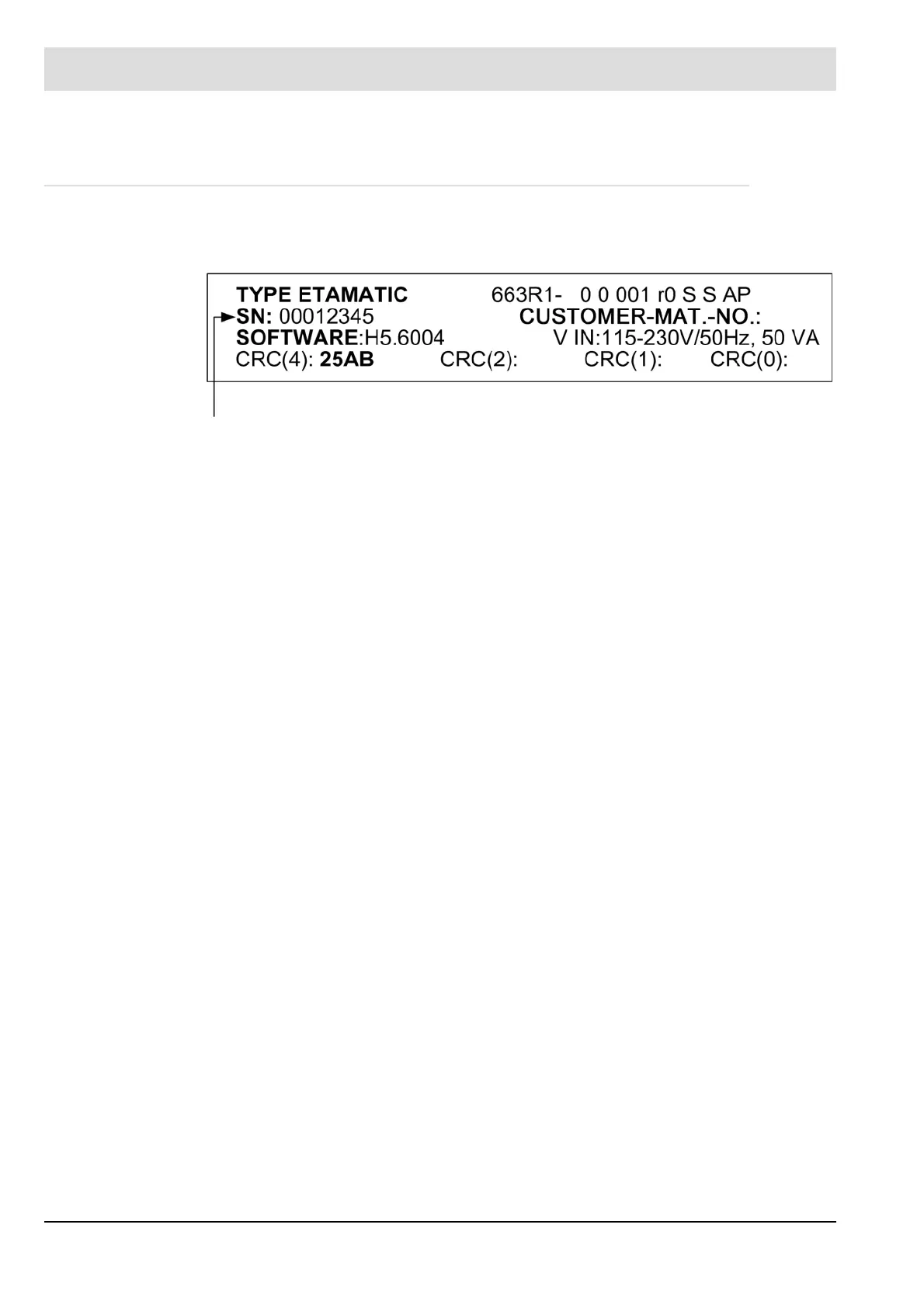

The variant number describes the device's variant. You will find the variant number on the side
of the housing. The variant number is based on the following key:
Example: ETAMATIC in variant no.: 0 0 001 r0 AM S AP
a: Flame monitoring
b: Control via atmospheric condition for PCU/standby operation
c: Analogue in-/output
Serial number
ETAMATIC 0 0 001 r0 AM S AP
abcde fg
0 without
1 Flame monitoring 50Hz
2 Flame monitoring 60Hz
0 without
1 control via atmospheric condition PCU current 4...20 mA passive
2 control via atmospheric condition PCU PT100 up to 320 °C
3 control via atmospheric condition PCU poti 5 k
4 Current correction
5 STANDBY-operation if firing rate controller integrated
6 STANDBY-operation, activation via fieldbus
7 STANDBY-operation, activation via LAMTEC SYSTEM BUS
0 4x DPS
1 3x DPS and 1x continues output, RF 4 ... 20 mA
4 2x DPS, 2x continues output SET
5 4x DPS and output of the firing rate
10 4x DPS with type switchover channel 1
21 3x DPS and 1x continuous output, FB (feedback) RPM-2L, 300-3600 I/min
22 3x DPS and 1x continuous output, FB (feedback) RPM-2L, 600-7200 I/min
23 3x DPS and 1x continuous output, FB (feedback) RPM-2L, 30-300 I/min
24 3x DPS and 1x continuous output, FB (feedback) RPM-2L, 60-600 I/min
