115
9 Appendix

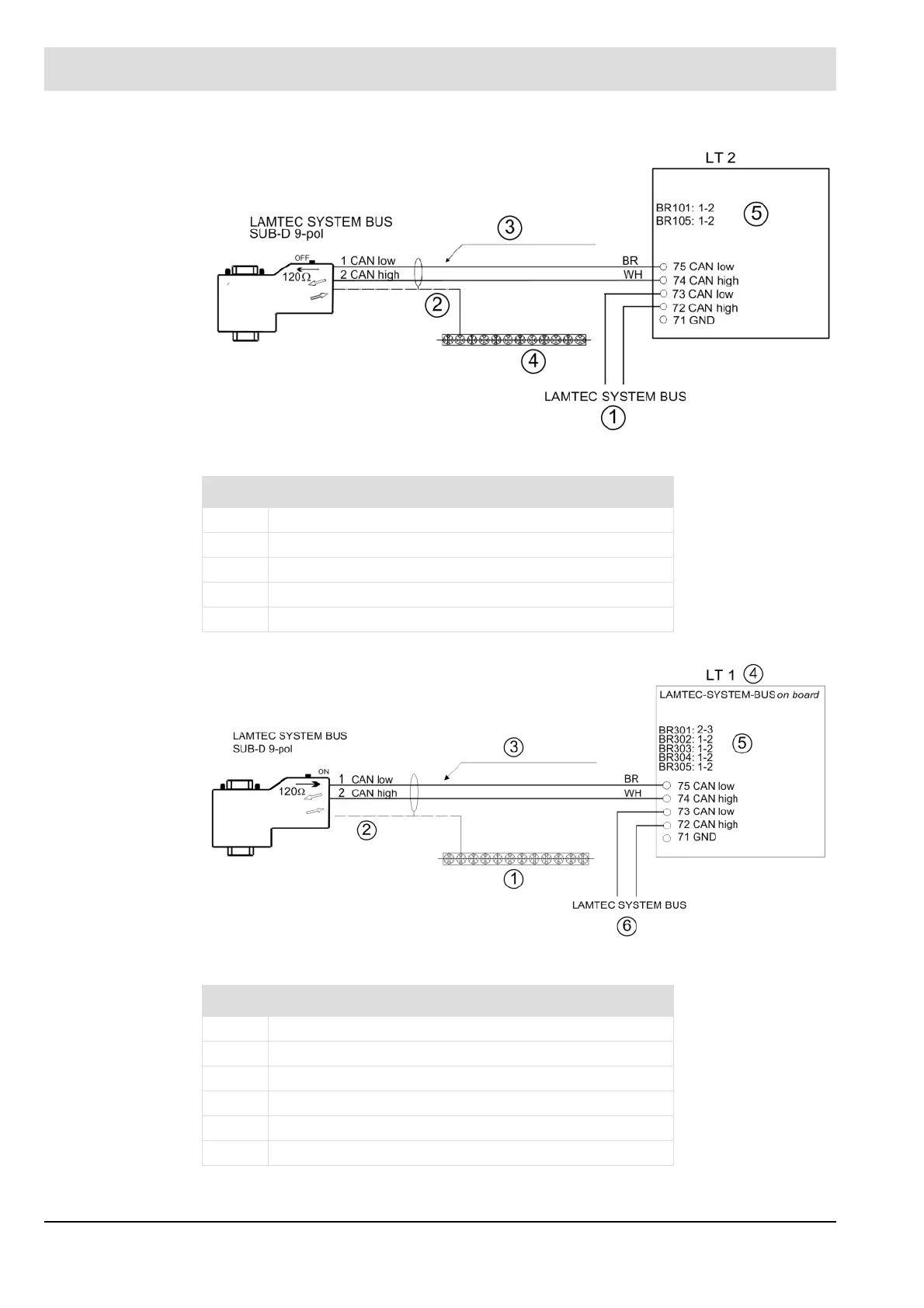

Fig. 9-15 LSB connection ETAMATIC - LT2 - other LAMTEC devices
Fig. 9-16 LSB connection ETAMATIC o LT1 from SN 600 on
No. Description
1 To other LAMTEC-devices
2 Housing
3 Pre-canned line 2 m
4 PE-bar in housing LT2
5 Terminal resistance passive
No. Description
1 PE-bar in housing LT1
2 Housing
3 Pre-canned line 2m, 663R0421N
4 LT1 from serial number 0600
5 Terminal resistance active
6 To other LAMTEC- devices
