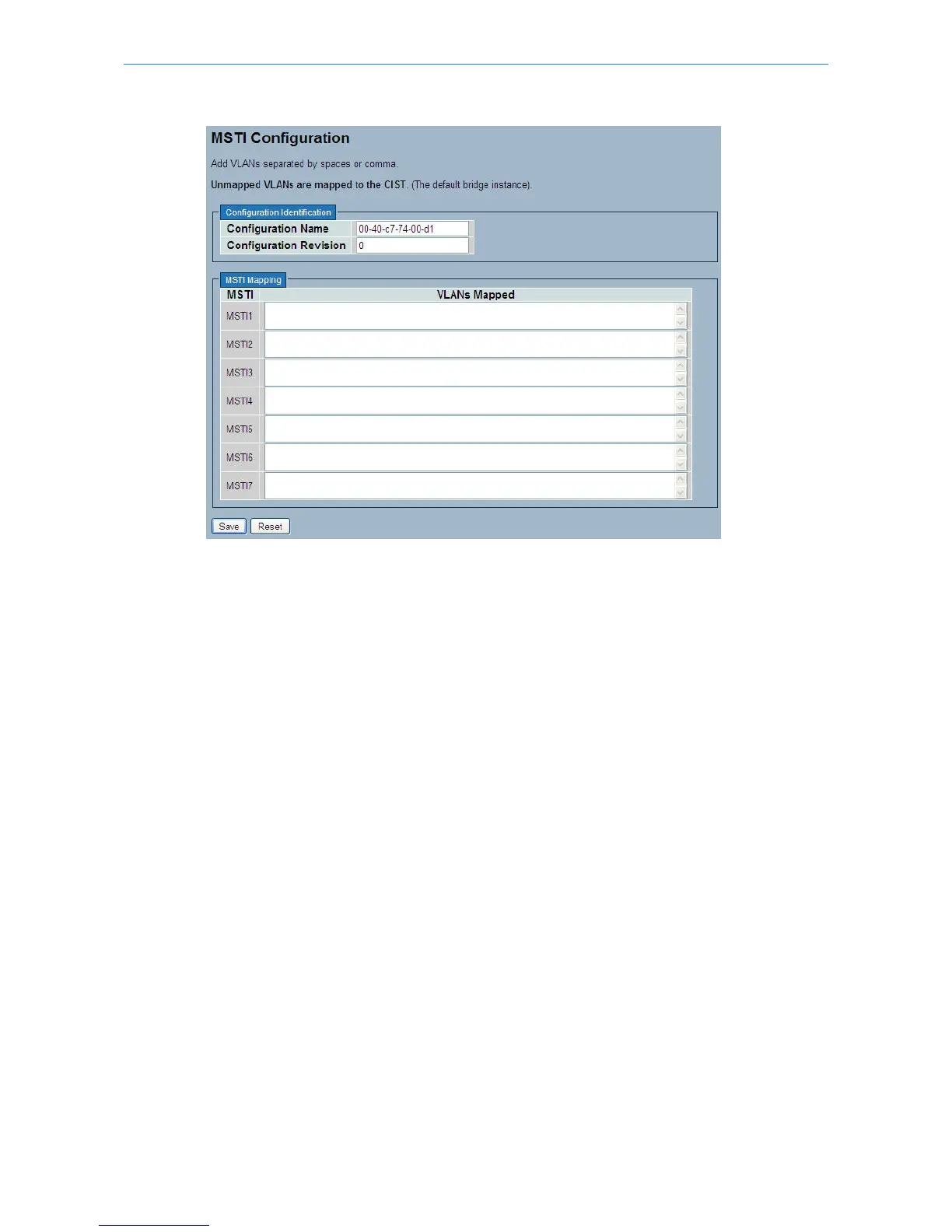

Lancom GS-2310P - MSTI Priorities

Parameter description:
Configuration Identification
Configuration Name:
The name identifying the VLAN to MSTI mapping. Bridges must share the name and revision (see below), as well as the
VLAN-to-MSTI mapping configuration in order to share spanning trees for MSTI's (Intra-region). The name is at most 32
characters.
Configuration Revision:
The revision of the MSTI configuration named above. This must be an integer between 0 and 65535.
MSTI Mapping
MSTI:
The bridge instance. The CIST is not available for explicit mapping, as it will receive the VLANs not explicitly mapped.
VLANs Mapped:
The list of VLANs mapped to the MSTI. The VLANs must be separated with comma and/or space. A VLAN can only be
mapped to one MSTI. An unused MSTI should just be left empty. (I.e. not having any VLANs
Buttons
Save – Click to save changes.
Reset – Click to undo any changes made locally and revert to previously saved values.
3.4.3 MSTI Priorities
When you implement a Spanning Tree protocol on the switch that the bridge instance. The CIST is the default instance
which is always active. For controls the bridge priority. Lower numeric values have better priority. The bridge priority
plus the MSTI instance number, concatenated with the 6-byte MAC address of the switch forms a Bridge Identifier
This section show how the user can inspect the current STP MSTI bridge instance priority configurations, and possibly
change them as well.
