3. Activate which port wants to become a Router Port or enable/ disable the Fast Leave function.
4. Set the Throttling parameter.
5. Click Apply to save the setting
6. If you want to cancel the setting then you need to click the Reset button. It will revert to previously saved values.

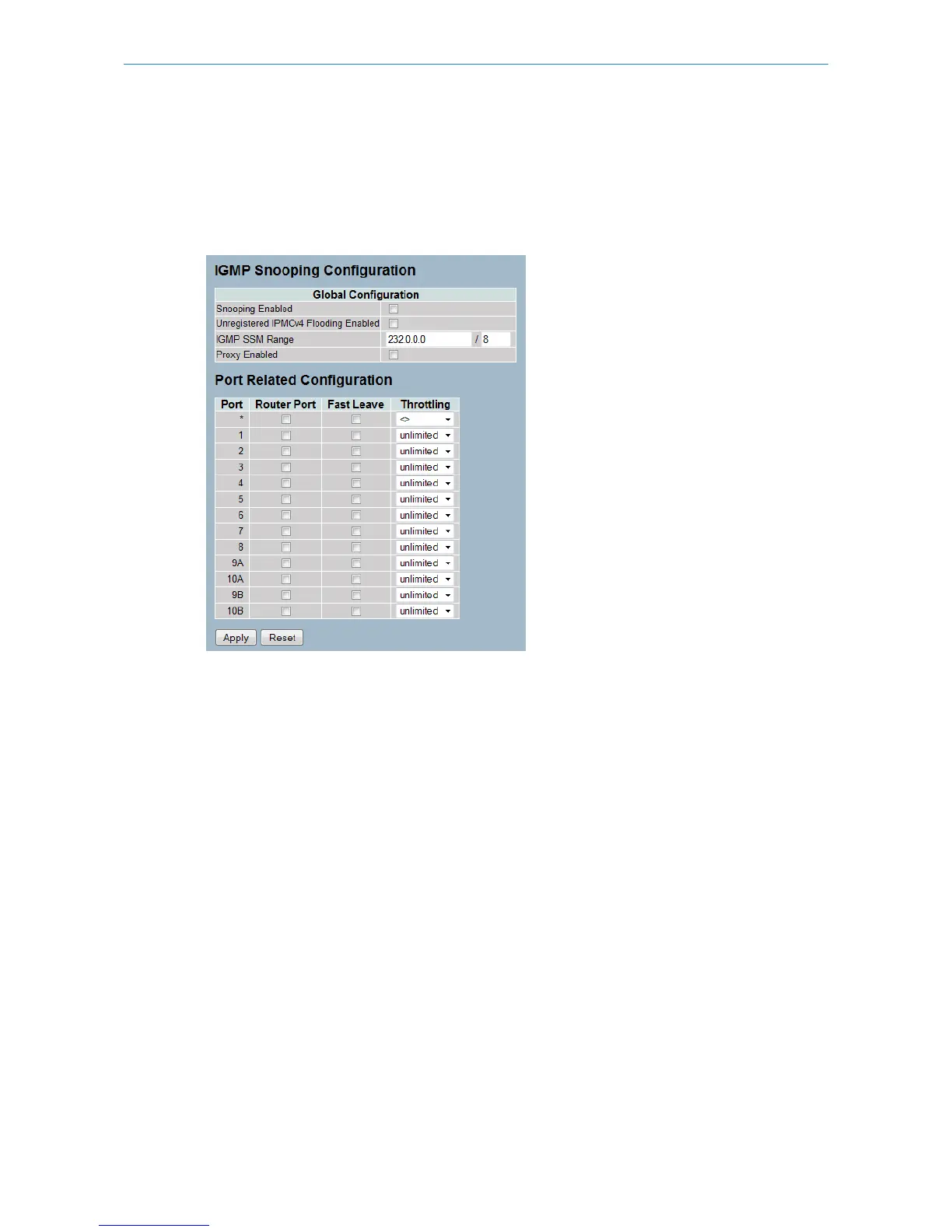

Figure 3-5.1: The IGMP Snooping Configuration (GS-2310P)
Parameter description:
Snooping Enabled:
Enable the Global IGMP Snooping.
Unregistered IPMCv4 Flooding enabled:
Enable unregistered IPMCv4 traffic flooding.
IGMP SSM Range:
SSM (Source-Specific Multicast) Range allows the SSM-aware hosts and routers run the SSM service model for the groups
in the address range. Format: (IP address/ sub mask)
Proxy Enabled:
Enable IGMP Proxy. This feature can be used to avoid forwarding unnecessary join and leave messages to the router
side.
Port:
It shows the physical Port index of switch.
Router Port:
Specify which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3
multicast device or IGMP querier.
If an aggregation member port is selected as a router port, the whole aggregation will act as a router port.
Fast Leave:
44
LANCOM GS-2310P/GS-2326(P) User Manual
3 Configuration
