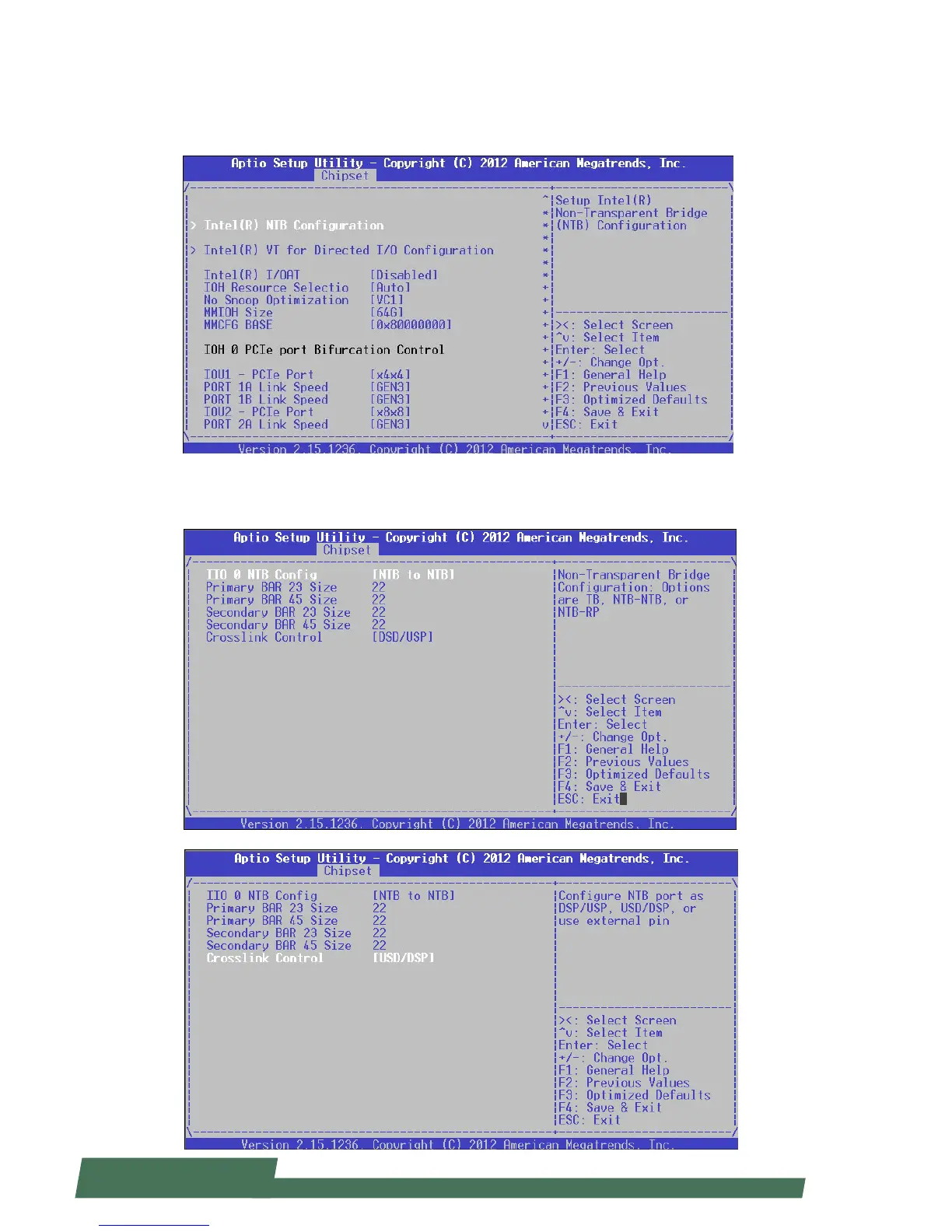

IOH Configuration
Intel(R) NTB Configuration: press “Enter” to access the sub-menu for Intel Non-Transparent Bridge (NTB)
configurations.
Then, you may select “TB”, “NTB-NTR” or “NTB-RP” for the NTB configuration. Remember to set different NTB ports for
“Crosslink Control” for the Upper Board and the Bottom Board. For instance, as the image below, the crosslink control
is DSD/USP for the Upper Board while setting “USD/USP for the Bottom Board.
