Lantech QL-400 - Tilting Roller

MAINTENANCE
82
7.6 Pallet Grip®
7.6.1 Tilting Roller

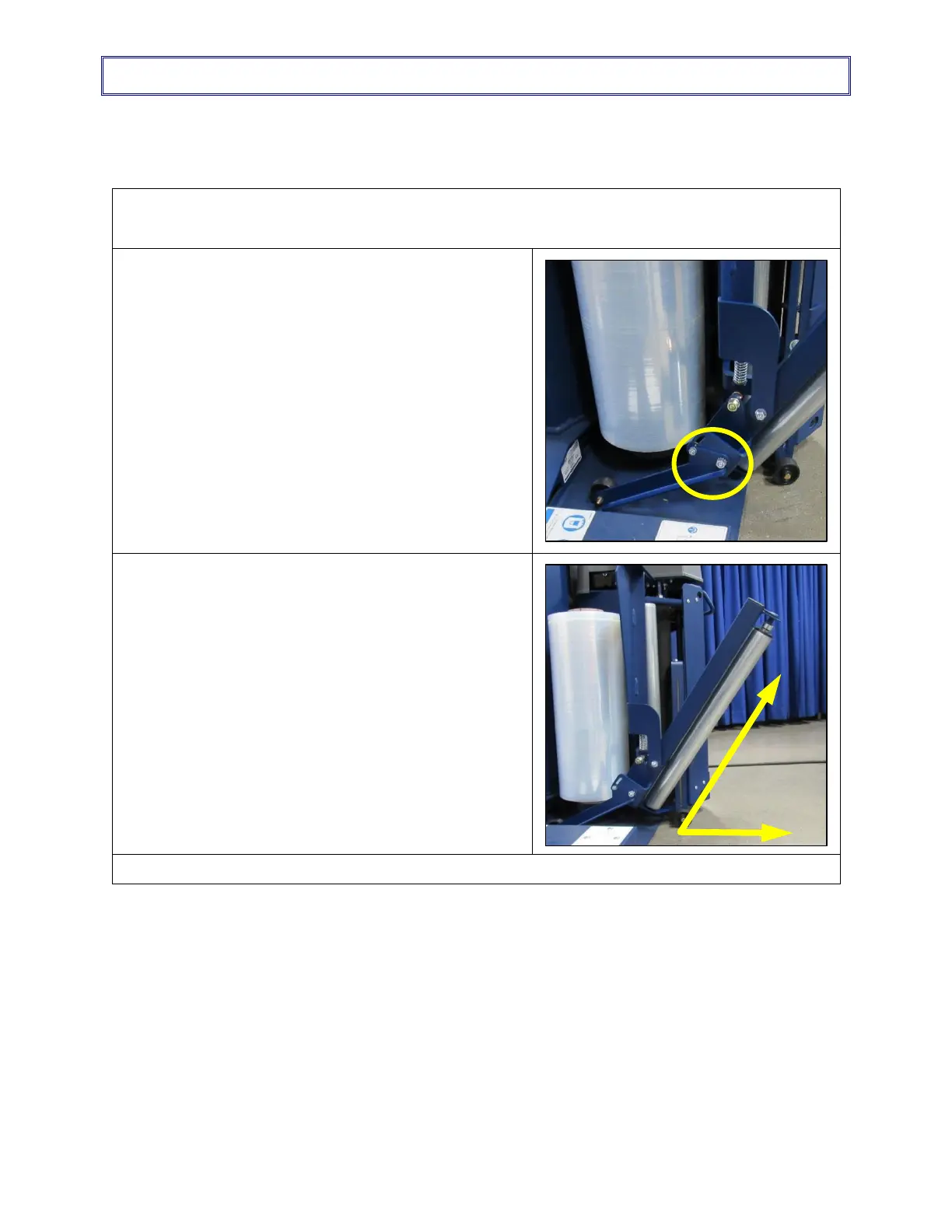

The Tilting Roller moves the cable of film down on the pallet.
• The Factory Setting is 61˚
1. Adjust the actuator to increase, decrease the angle of
the roller when it is engaged.
2. Increase the movement of the roller to lower the
position of the cable on the pallet.
The standard adjustment for the roller is 61° from
floor level.
3. Loosen the bolts to adjust.
61˚
