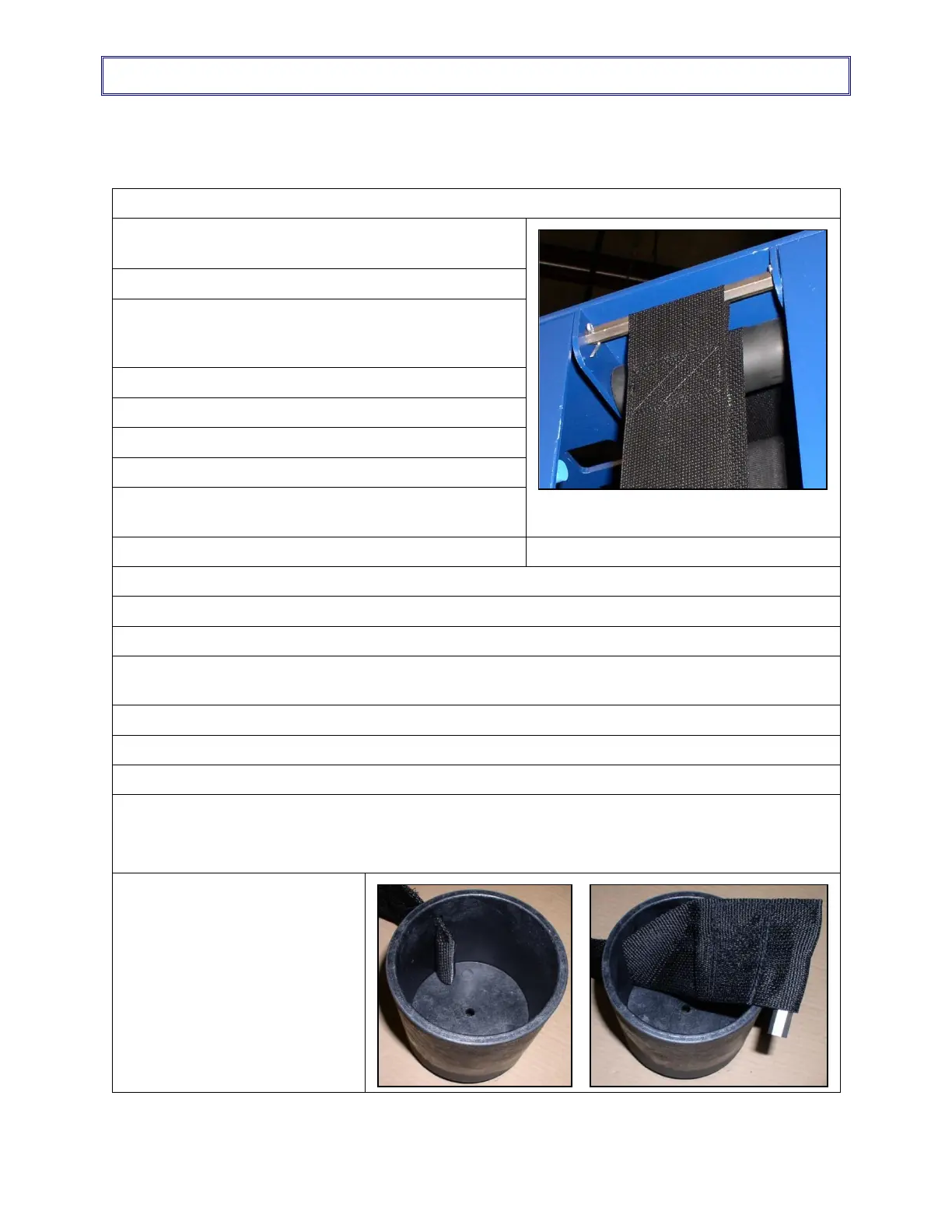

MAINTENANCE
77
7.5 Standard Parts Replacement
7.5.1 FDS Lift Belt
Replace the FDS Lift Belt
1. Move the FDS to the correct height to install the
shipping brackets.
2. Push the E-stop
3. Refer to the Installation Instructions and install the
FDS shipping bracket and the counterweight
brackets.
4. Reset the E-stop.
5. Push Reset.
6. Move the FDS down until the belt is slack.
7. Push the E-stop.
8. Move the Main Disconnect switch to the Off
position.
9. Obey the Lockout/Tagout procedures.
10. Look at the routing of the belt and the rollers in the mast.
11. Remove the cotter pins from the shaft at the top cap of the mast.
12. Remove the belt from the shaft.
13. Remove the belt from around the rollers in the mast, down
to the FDS lift drive.
14. Unwind the belt from the drum and count the number of revolutions.
15. Remove the pin from the pocket of the belt.
16. Pull the belt out of the slot in the drum.
17. Put the new belt through the slot in the drum.
Make sure that the open end of the pocket points to the
drum.
18. Put the pin in the pocket of
the belt.
