Lantech QL-400 - Groove Roller

MAINTENANCE
83
7.6.2 Groove Roller
The Groove Roller rolls the film into a cable.
It sets the quantity of film that makes the cable.
It sets the height of the cable on the pallet.
• The Factory Setting is 219 mm (8 5/8”)
Adjust the groove roller to increase, decrease the quantity of film that makes the cable.
To adjust:
1. Fully engage the tilting roller and loosen the 2 bolts on the groove roller.
2. Adjust the roller.

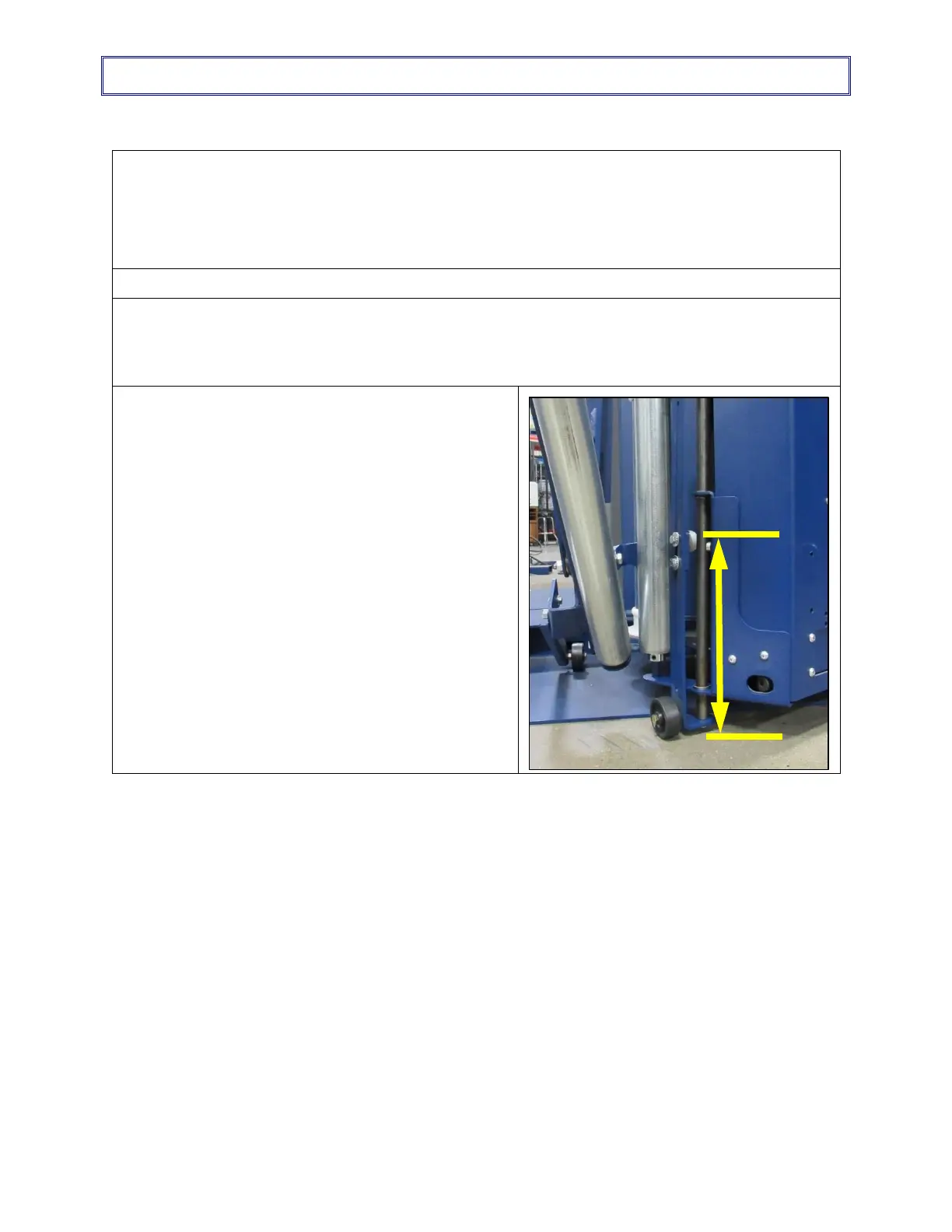

The standard adjustment for a standard height 127 mm
(5”) pallet:
• 219 mm (8 5/8”) from the floor to the top of the
groove in the guide roller.
219 mm
(8 5/8")
