3: Installation of xSenso
xSenso User Guide 23

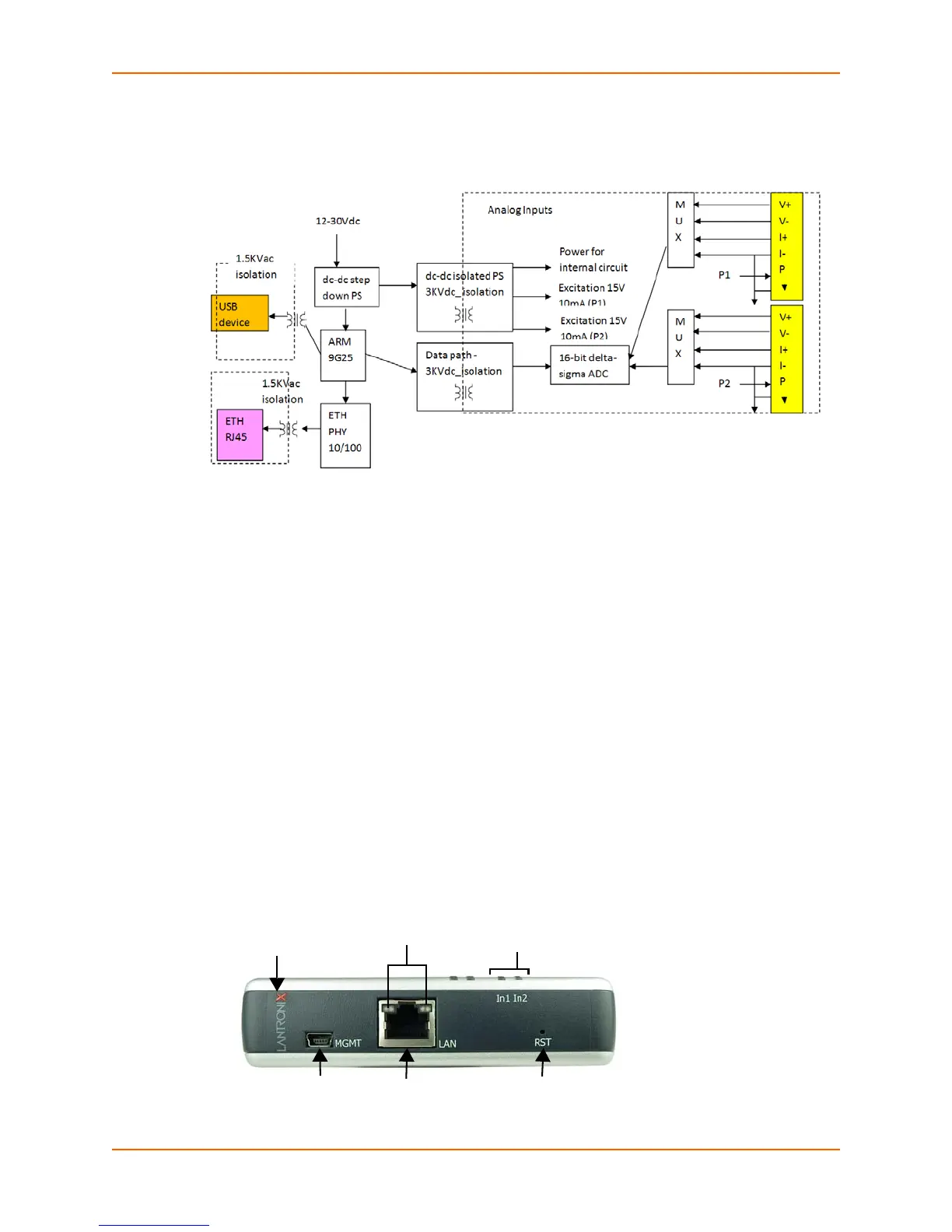

xSenso 2100 Isolation Block Diagram
Figure 3-1 xSenso 2100 Isolation Block Diagram
Hardware Components
Front/Top Panel
The following components are located on the front panel (Figure 3-2) of the xSenso :
 USB Port - for managing and configuring xSenso device.
 RJ-45 Ethernet Port (with Ethernet LEDs) - can connect to an Ethernet (10 Mbps) or Fast
Ethernet (100 Mbps) network.
 RST Button (the Reset Button inside the pin hole) - power cycles and restores factory default
settings.
 LED Indicators (2 Analog Input LEDs, 2 Ethernet LEDs, and 1 Diagnostic “X” LED)
- see Table 3-4 and Table 3-5.
LED Indicators
The Analog Input LEDs, the Ethernet LEDs, and the Diagnostic “X” LED are all located on the front
panel of the xSenso device (Figure 3-2).
Figure 3-2 xSenso , Front View
Analog
Input LEDs
USB Ethernet Reset Button
Port Port (pin hole)
Ethernet LEDs
L R
Note: Though there appear
to be four analog input
LEDs located on the front
panel, only the two right
Input LEDs are supported in
xSenso .
Diagnostic
“X” LED
