4: Installation of xSenso 21A2
xSenso User Guide 29

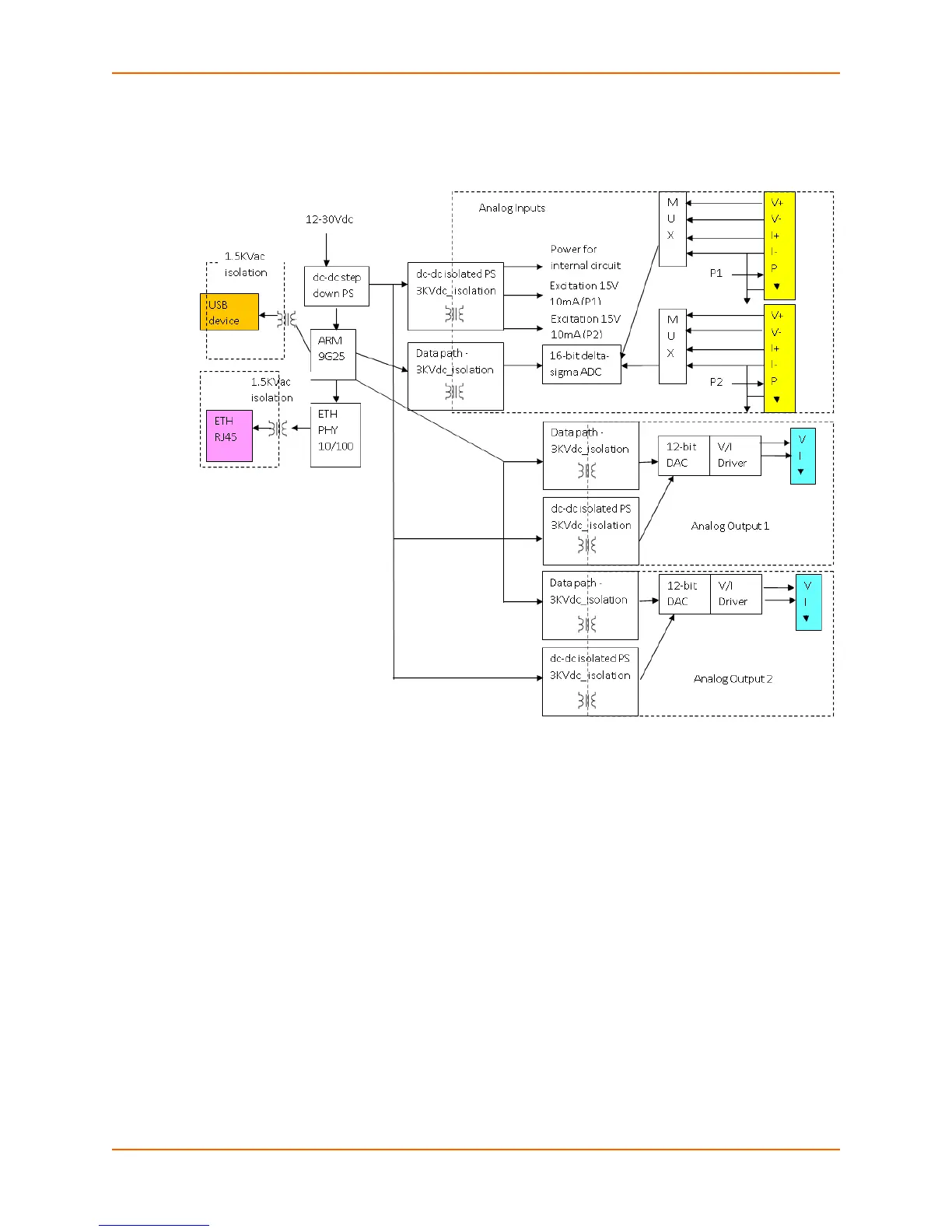

xSenso 21A2 Isolation Block Diagram
Figure 4-1 xSenso 21A2 Isolation Block Diagram
Hardware Components
Front/Top Panel
The following components are located on the front panel (Figure 4-2) of the xSenso 21A2:
 USB Port - for managing and configuring xSenso device.
 RJ-45 Ethernet Port (with Ethernet LEDs) - can connect to an Ethernet (10 Mbps) or Fast
Ethernet (100 Mbps) network.
 RST Button (the Reset Button inside the pin hole) - power cycles and restores factory default
settings.
 LED Indicators (4 Analog Input/Output LEDs, 2 Ethernet LEDs, and 1 Diagnostic “X” LED)
- see Table 4-4 and Table 4-5.
