5: Installation of xSenso 21R2
xSenso User Guide 38
To reboot the unit without resetting the unit to factory defaults:
1. Place the end of a paper clip or similar object into the RST (reset) opening (see Figure 5-2)
and press and hold down micro switch during a power cycle for 3 to 5 seconds.
2. Remove the paper clip to release the button. The unit will reboot.
Side Panels
The following are located on the side panels (Figure 5-6):
Left Side
Analog Input 1
Analog Input 2
9-30 VDC 3 Pin Terminal Block Power Input
9-30 VDC Barrel Locking Power Input
Right Side
Relay Output 1
Relay Output 2

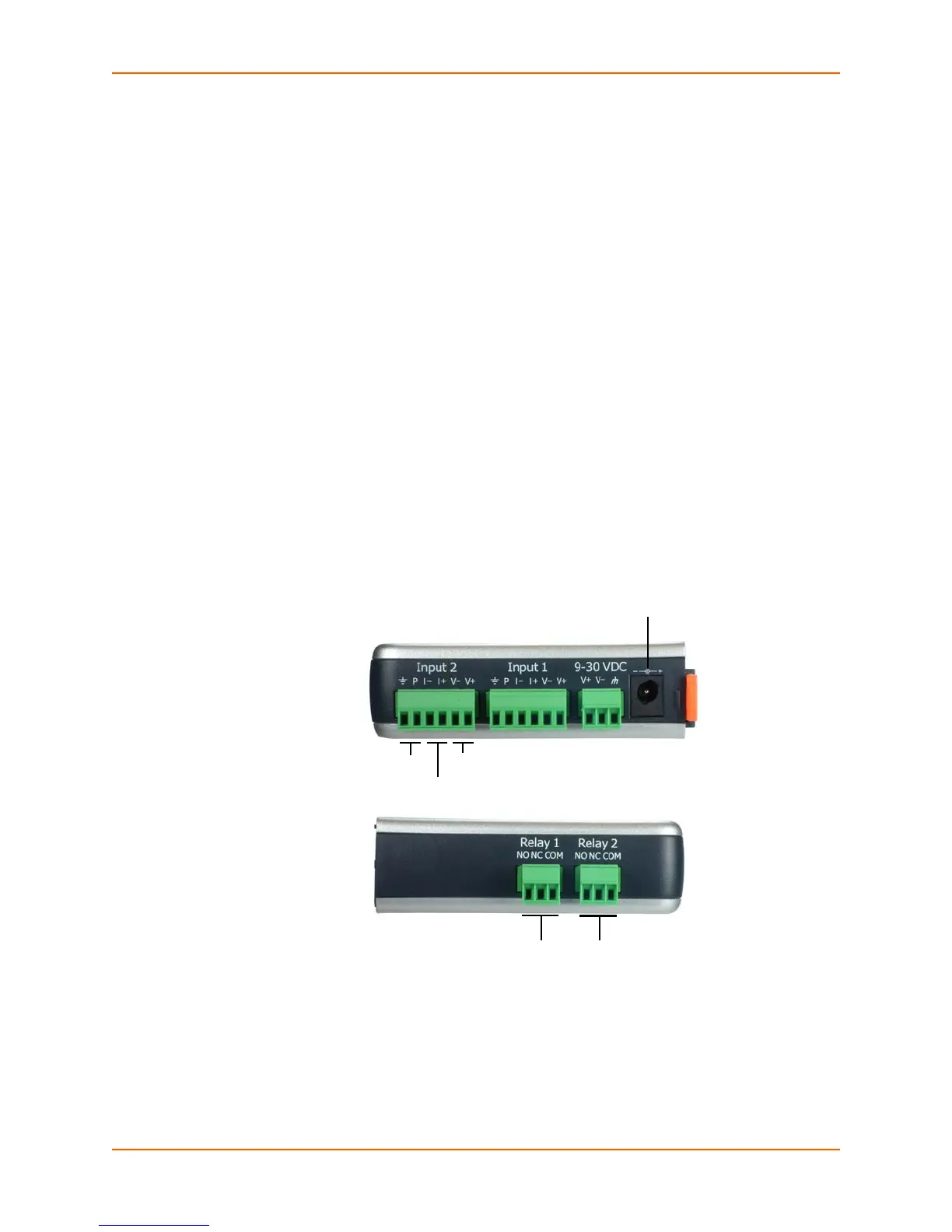

Figure 5-6 xSenso, Side Views
Back Panel
On the xSenso back panel, there is a mounting bracket with a sliding orange clip which allows you
to mount and dismount the device from a DIN rail, as shown in Figure 5-7. There are also four
rubber feet that can be attached to the bottom-side of the device, if the xSenso is to be placed on
a flat surface.
9-30 VDC Barrel
Locking Power Input
Excitation Voltage Input
Current Input
Relay 1 Relay 2
