xSenso User Guide 53
9: Analog Input, Output and Relay Settings
The xSenso supports two analog inputs (Figure 9-1) each of which may be configured to sense
one of four analog signal ranges (±100mV, ±1V, ±10V and ±20mA) with options for selecting
simple offset or scale and offset. xSenso 2100, xSenso 21A2 and xSenso 21R2 have the same
analog inputs but xSenso 21A2 additionally has two analog outputs and xSenso 21R2 has two
relay outputs.

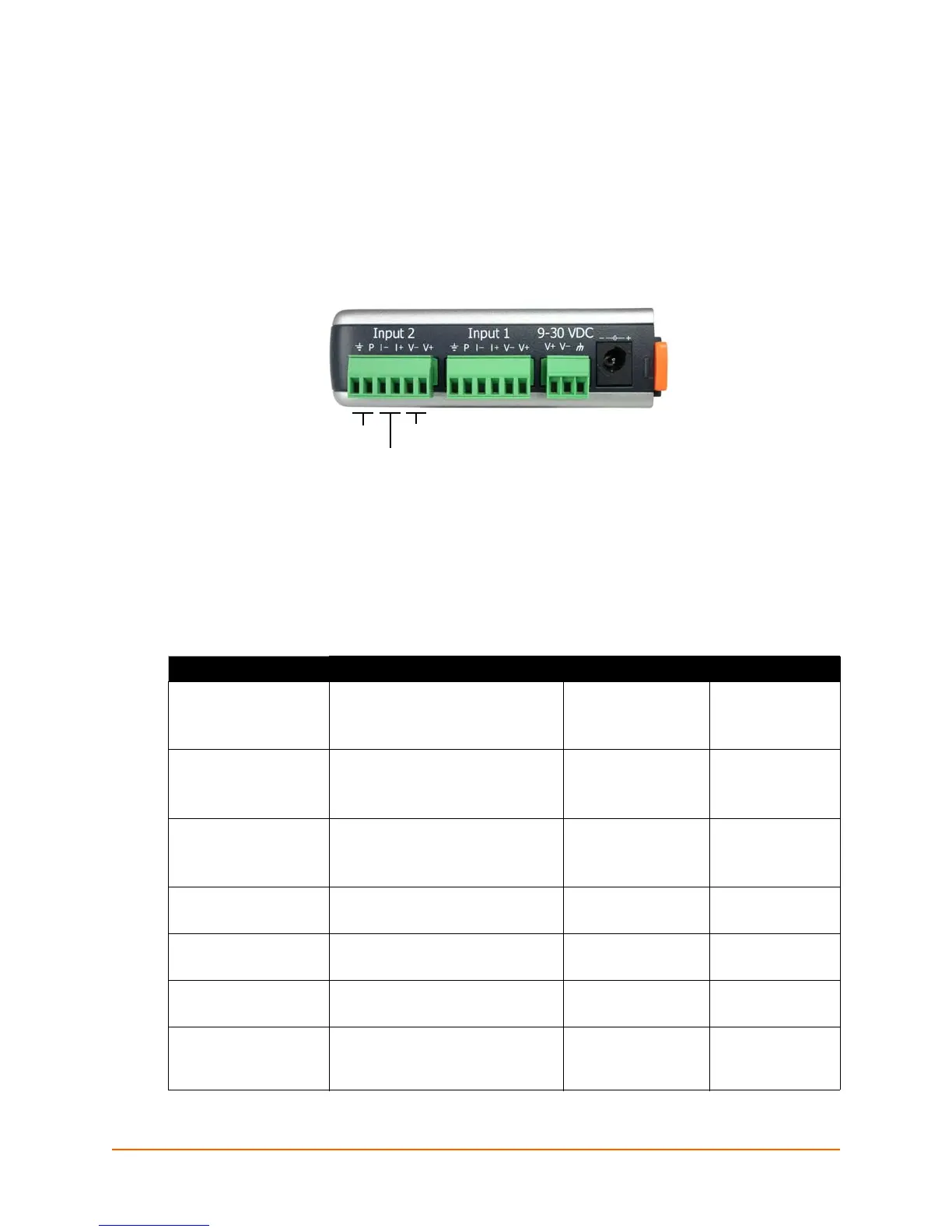

Figure 9-1 Analog Inputs 1 and 2 for xSenso
DAQ Format
DAQ (Data Acquisition) Format configuration applies to Tunnel Accept and Alarm Connect data
response.
Table 9-2 xSenso DAQ Command
Command Description Example xSenso Model
AIN1 Reads Input 1 value. AIN1\r
+10.0000
xSenso 2100
xSenso 21A2
xSenso 21R2
AIN2 Reads Input 2 value. AIN2\r
-0.00031
xSenso 2100
xSenso 21A2
xSenso 21R2
AIN* Reads all input values. AINA\r
+10.0000-0.00031
xSenso 2100
xSenso 21A2
xSenso 21R2
AOUT1 Reads Output 1 current value. AOUT1\r
+5.00000
xSenso 21A2
AOUT2 Reads Output 2 current value AOUT1\r
+10.0000
xSenso 21A2
AOUT* Reads all current output values. AOUT*\r
+5.00000+10.0000
xSenso 21A2
AOUT1 <value> Writes Output 1 value.
Value must have float format:
[+/-]<digits>.<digits>
AOUT1 +5.0\r
SUBMITTED
xSenso 21A2
Excitation Voltage Input
Current Input
