7: Configuration Using Web Manager
xSenso User Guide 44

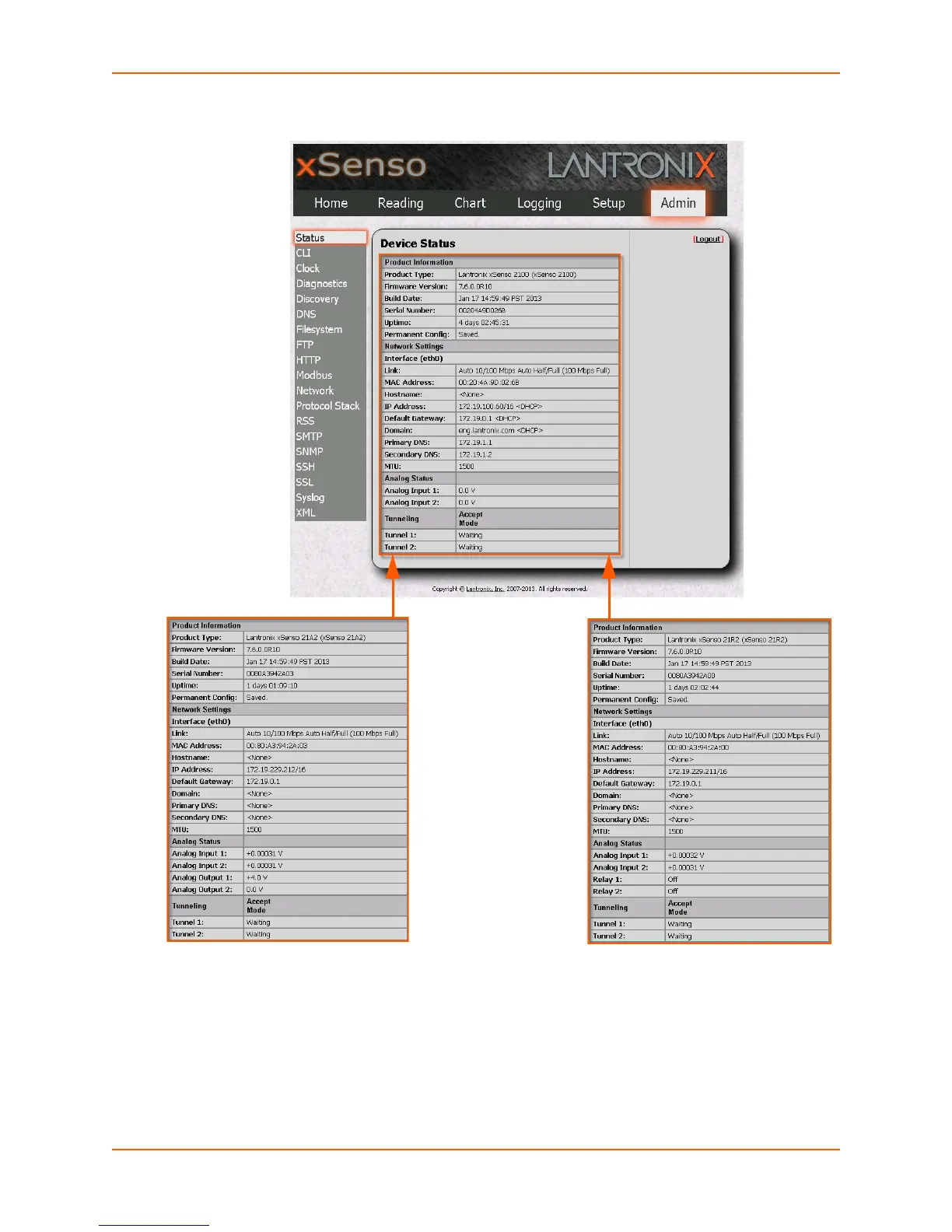

Figure 7-2 Device Status Pages
Note: The Logout button is available on any web page under the Setup and Admin Tab-
Pages when authentication is enabled (by default). Logging out of the web page would
force re-authentication to take place the next time the web page is accessed.
There are three
xSenso models. The
Device Status page for
each model is identical
except for these
differences:
1) The xSenso model
can be identified to the
right of the Product
Type in the Home
page.
2) xSenso 21A2 has
two additional output
status fields.
3) xSenso 21R2 has
two additional relay
status fields.
