7: Configuration Using Web Manager
xSenso User Guide 43

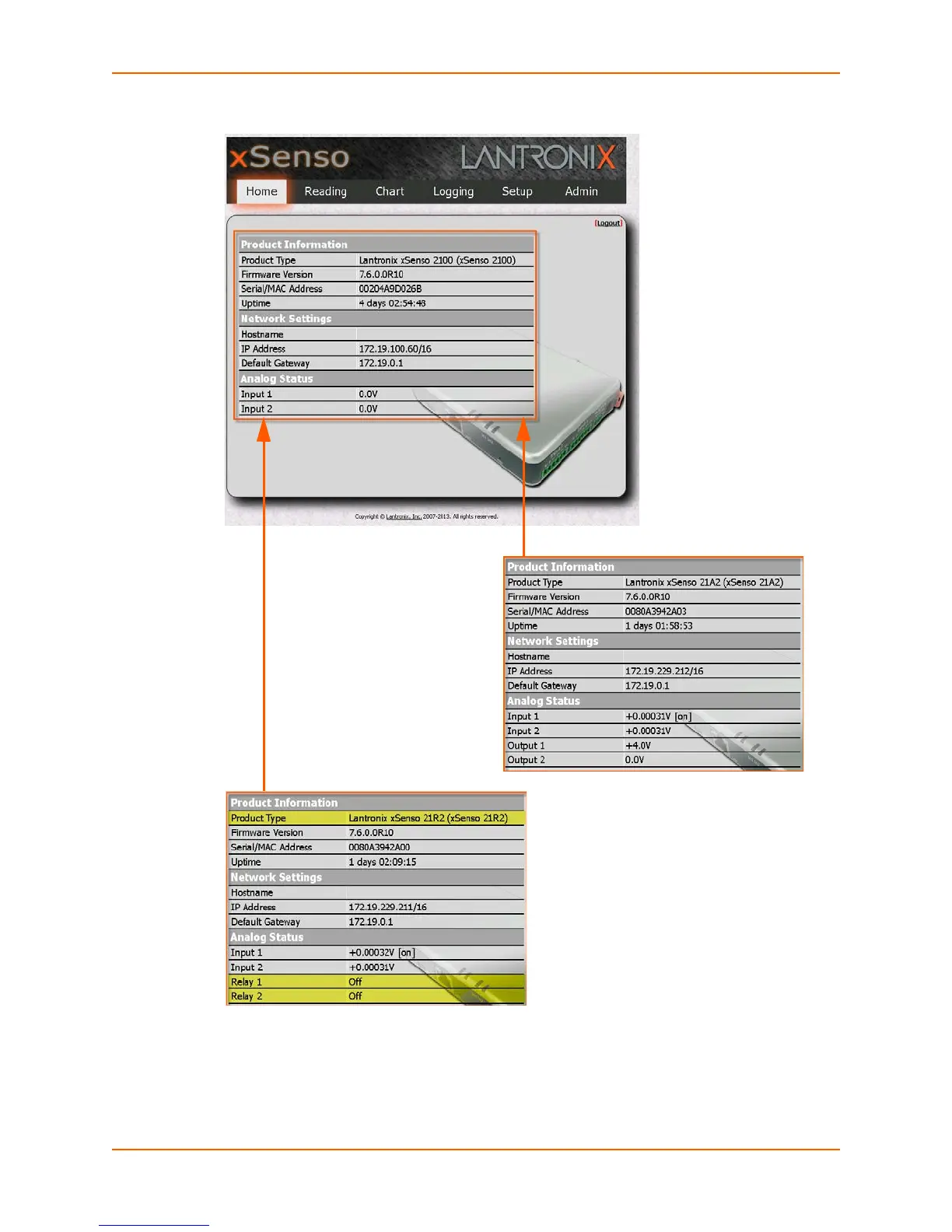

Figure 7-1 xSenso Home Pages
4. Click the Admin tab to get to the Admin > Device Status page. The Device Status web page
displays the same and more information than on the xSenso Home page: configuration,
network settings, analog status, tunneling settings, and product information.
There are three xSenso models.
The Home page for each model is
identical except for these
differences:
1) The xSenso model can be
identified to the right of the
Product Type in the Home page.
2) xSenso 21A2 has two additional
output status fields.
3) xSenso 21R2 has two additional
relay status fields.
