INSTALLATION OF EXPANSION RAM
DR I VE

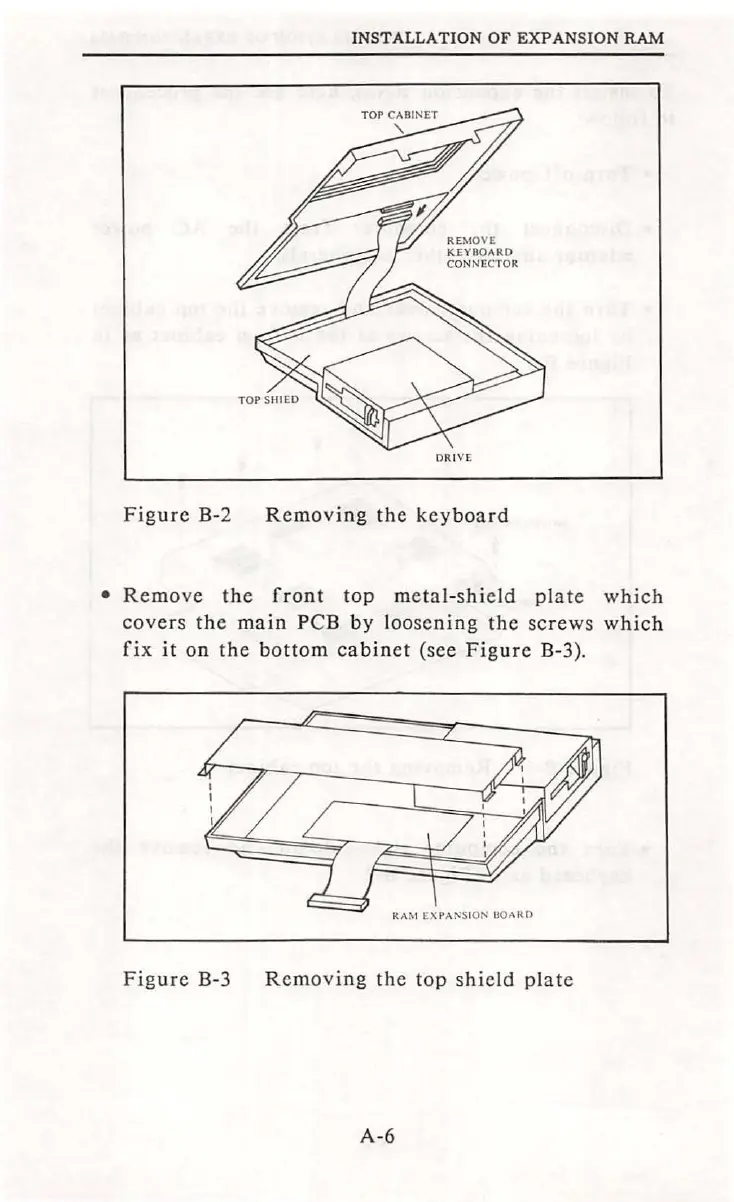

Figure B-2 Removing the keyboard
• Remove the front top metal - shield plate which
cove rs the main PCB by loosening the screws which
fix it on the bottom cabinet (see Figure B-3).
RA M CXPANSION UOAKO
Fig ure B-3 Removing the top shield plate
