Lauda RP 3090 C User Manual

Proline Kryomats
36 Starting up YAUE0007 / 2/26/2009

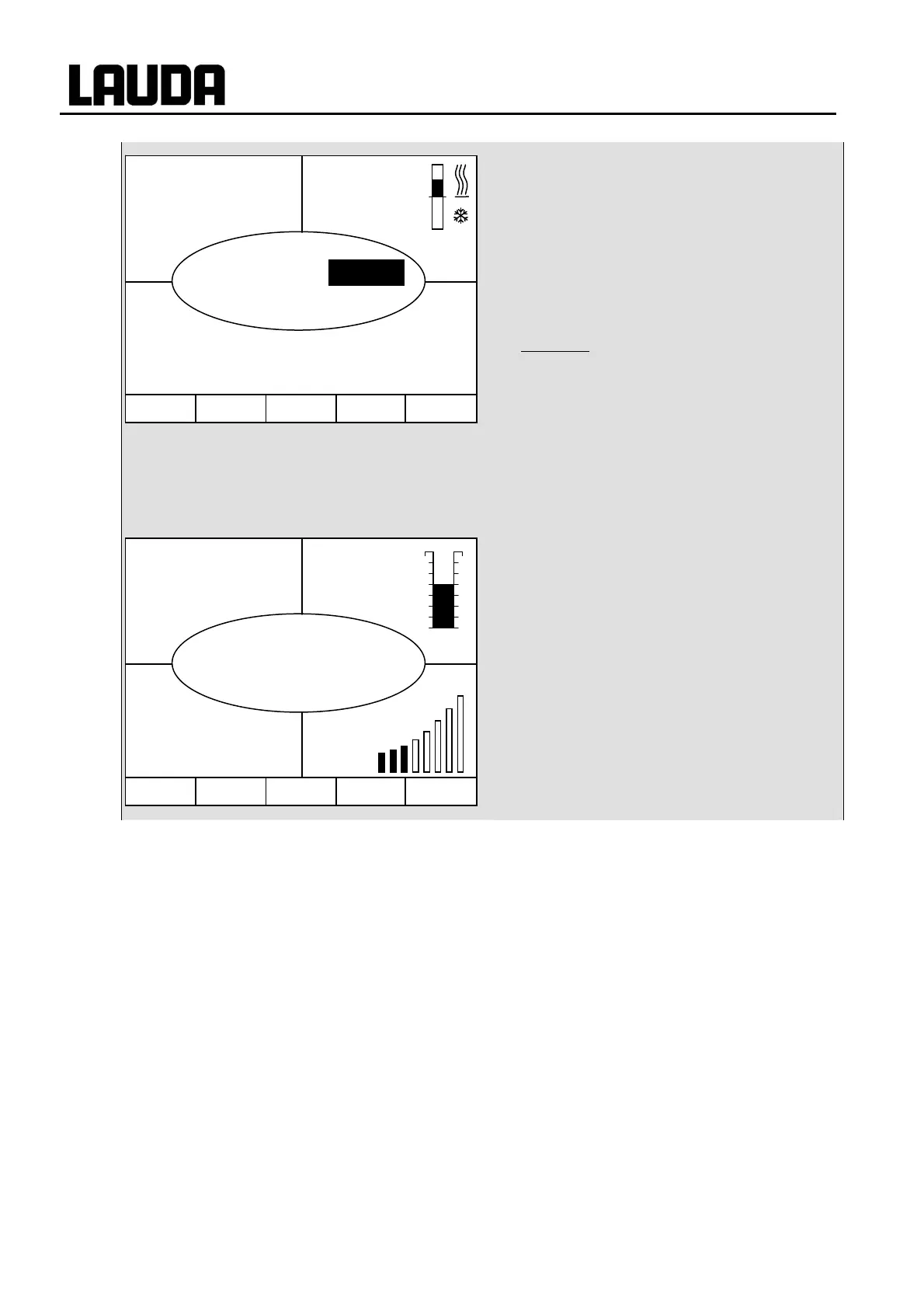

1. Basic window with the three most
important items of information:
− T
int
, current bath temperature,
− T
set
, setpoint of the bath or external
temperature,
− Information: Heating/ cooling. Here, e.g.
heating is taking place at 55.3% and
0.0% cooling.
Soft keys:
− Help: Help function.
− Menu: Set unit parameters.
− Screen: Changes between basic, normal,
super and graphics recorder windows.
− T
set
: Changes setpoint temperature.
− T
fix
: Calling and setting of saved
setpoints.
2. Standard window with five important
items of information:
− T
int
, current bath temperature,
− T
set
, setpoint,
− T
ext
, current temperature on external probe
(if connected),
− Level of heat transfer liquid in cm above
the minimum level,
− Pump level of the VarioFlex Pump.
− Soft keys like above.
Hel
p
Menu Screen T
set
T
fix
T
int
°C
25.01
T
set
°C
25.00
55.3
Y(%)
0.0
Hel
p
Menu Screen T
set
T
fix
T
int
°C
25.01
T
set
°C
25.00
Level
4
T
ext
°C
25.02
Pump
3
Standby
