26
LAUNCH PAD V
User's Manual

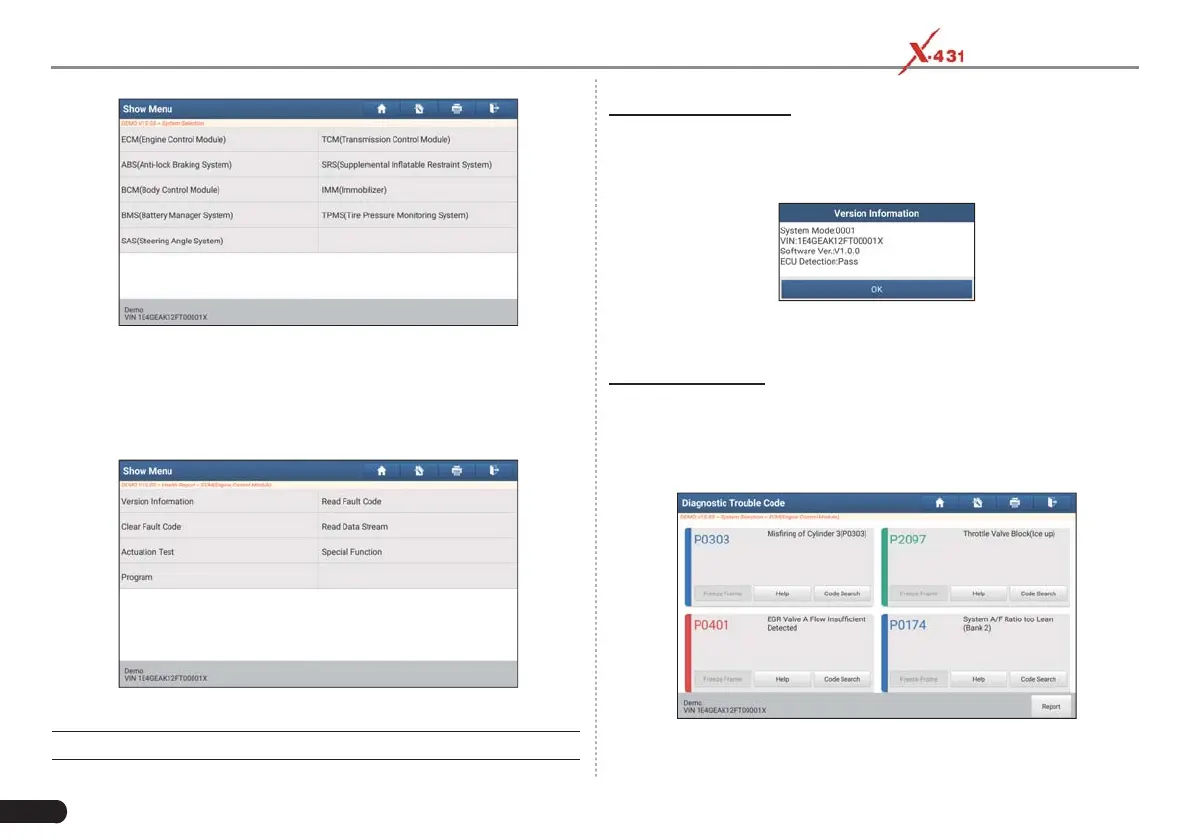

Fig. 5-24
Swipe the screen from the bottom to view the vehicle system on the
next page.
Tap the desired system (take “ECM” for example) to jump to the test
function page.
Fig. 5-25
*Note: Different vehicle has different diagnostic menus.
A. Version Information
This function is used to read the version information of system mode,
vehicle VIN, software and ECU.
In Fig. 5-25, tap “Version Information”, the screen displays as follows:
Fig. 5-26
Tap “OK” to con rm and exit.
B. Read Fault Code
This function displays the detailed information of DTC records
retrieved from the vehicle’s control system.
In Fig. 5-25, tap “Read Fault Code”, the screen will display the
diagnostic result.
Fig. 5-27
