LAUNCH PAD V
User's Manual
75
8

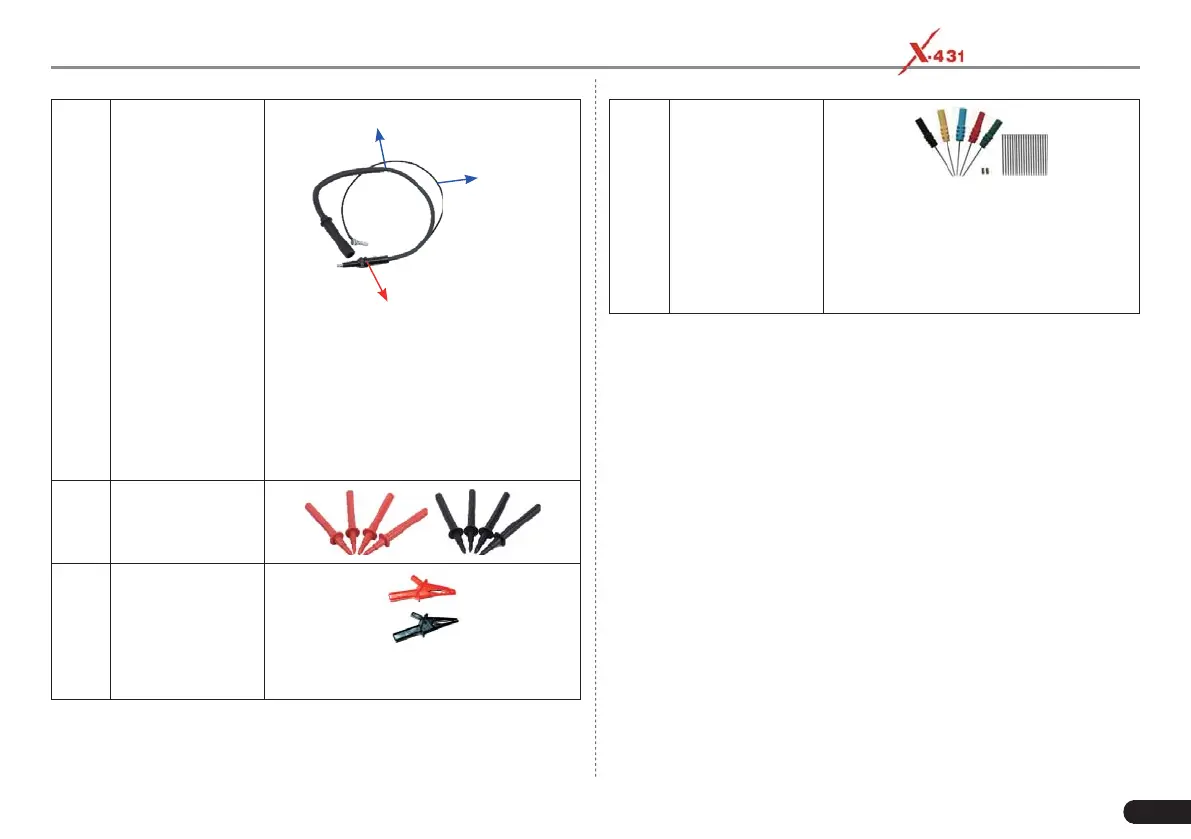

COP (Coil-on-
Plug) Extension
Cord
Earth Cord
Coil-on-Plug Extension Cord
Insulated Lead
Coil-on-Plug extension cord (including
earth cord) allows you to take accurate
secondary igniƟ on measurements on
secondary-direct (Coil-on-Plug) igniƟ on
systems. It can be applied in the condiƟ on
that there are no, or limited access to any
spark plug leads.
9
Multimeter
probes
10 Crocodile clips
Designed to connect the bare terminals or
leads.
11
Back Probe Pins
Suite
They are mainly used for piercing the
insulation of wires to allow for automotive
electrical measurements without causing
damage to the wires. Additionally they can
be used as pin-tip probes while working
with small circuit boards.
7.3.3 Connection & Initial Use
7.3.3.1 Probe Compensation
Perform this function to match the characteristics of the probe(optional)
and the channel input. The probe that has not been compensated may
cause measurement tolerance or error.
1. Set the switch to "X10" (the default is X1) on the probe and connect
it to the any Channel of the Scopebox.
2. Follow Steps 1-2 in Item 2 "Connection" mentioned below to
connect the Scopebox and diagnostic tool. Launch the App and
open "Scope" to run it.
3. From the "Vertical Setting" menu, select the corresponding channel
and set the Probe attenuation to 1:10.
4. Attach the probe tip to the Probe Compensator and the ground
nip of the reference lead to the ground connector. When using the
probe hook-tip, insert the tip onto the probe compensator fi rmly to
ensure a proper connection.
