2.1 Display Tablet

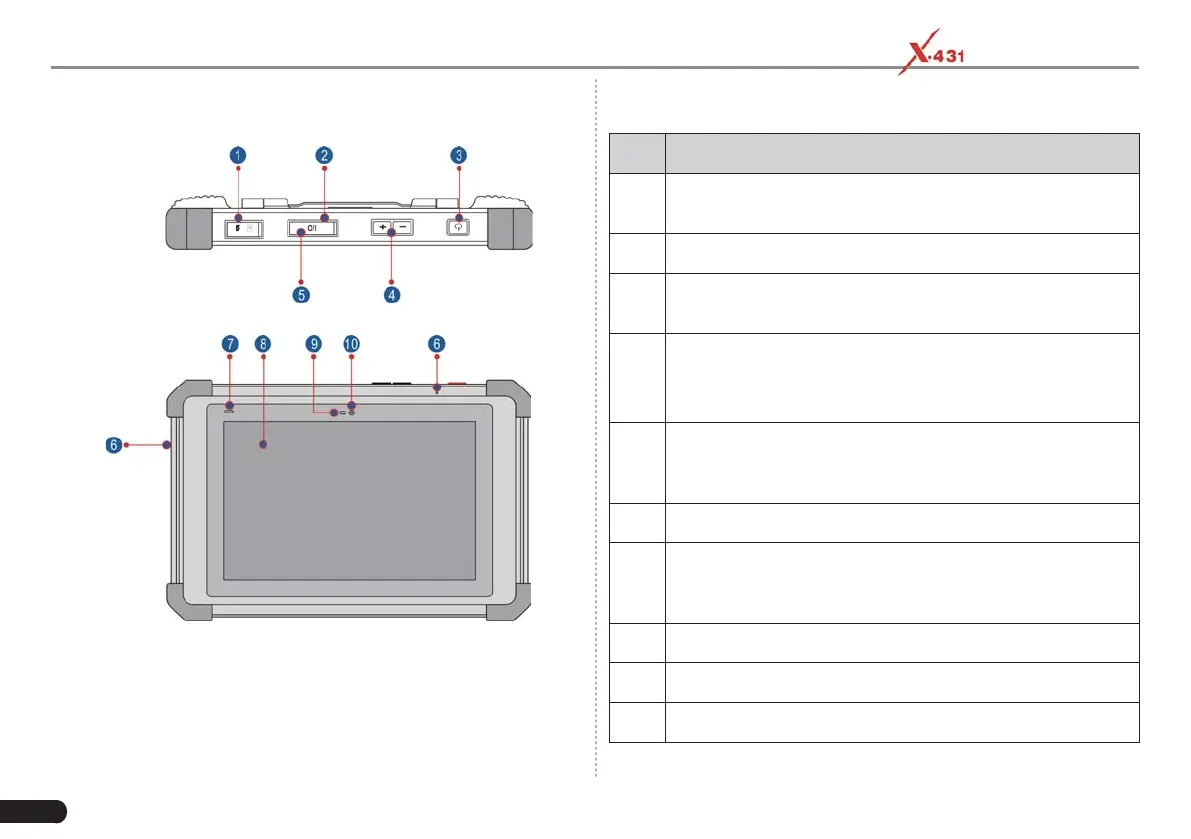

Fig. 2-4 Top & front views
Table 2-1 formulates ports and indicators of display tablet:
No. Name & Descriptions
1
Memory Card Slot -- To store the memory card for storage
expansion.
2 Type C Charging Port -- Reserved for charging the tablet.
3
Power/Screen Lock Button -- To turn the tablet on/off with
long press, or lock the screen with short press.
4
Volume Buttons -- To adjust the volume.
*Note: Press and hold [POWER] and [VOL -] key to capture the
current screenshot.
5
Data I/O Port -- Reserved for add-on modules (such as
Batterybox, Scopebox and Sensorbox), and other devices
with similar port.
6 Microphone
7
Charging indicator -- It illuminates red while the tablet is
charging. Once charging is finished, it will illuminate solid
green.
8 10.1" Capacitive Touch Screen
9 Ambient Light Sensor
10 Front Camera
