LAUNCH PAD V
User's Manual

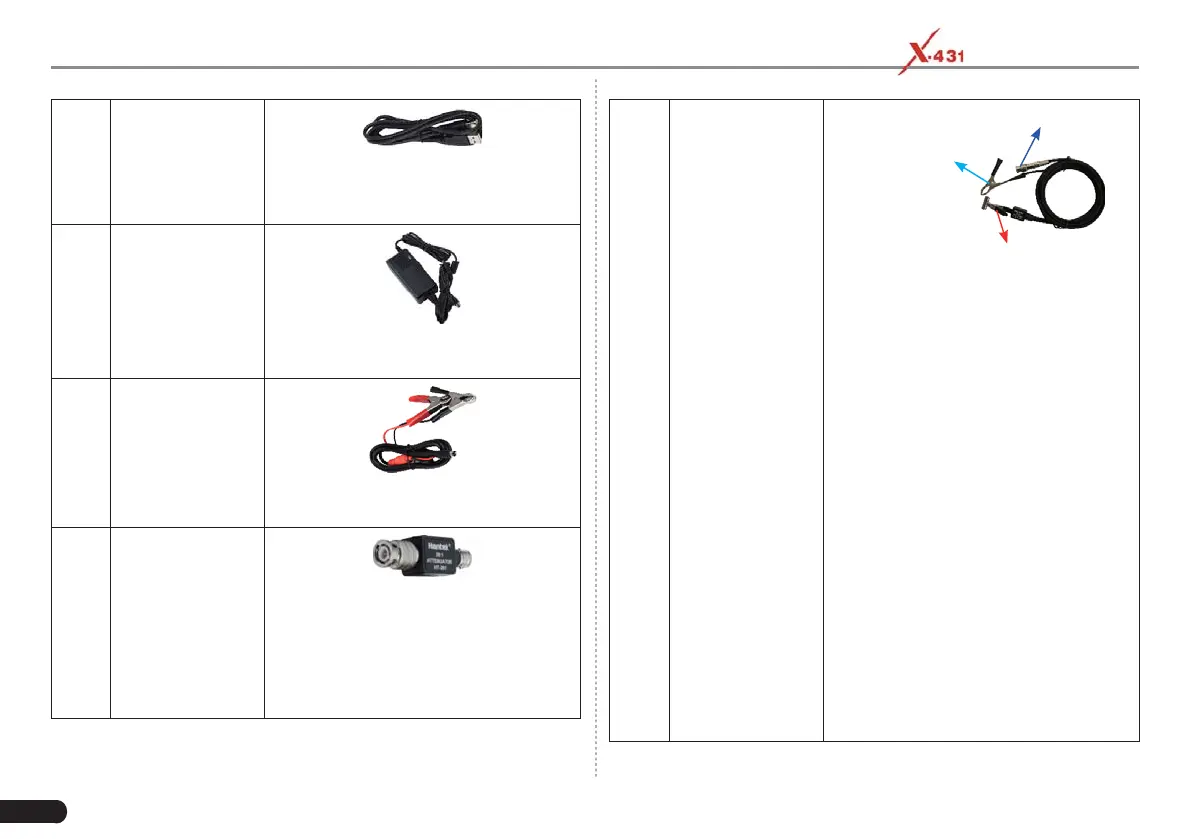

3 Data Cable
Connects the Scopebox and diagnostic
tool so that the sampled signal can be
displayed on the diagnosƟ c tool.
4 Power adapter
To supply power to the Scopebox through
connection to AC outlet.
5
Battery clamps
cable
To supply power to the Scopebox through
connection to vehicle's battery.
6 20:1 Attenuator
It allows the Scopebox to measure fuel
injector and primary igniƟ on waveforms.
*Note: Please note this attenuator
should be not used for any high voltage
measurements other than fuel injectors
and primary ignition.
7
Secondary
ignition pick-up
BNC Connector
Crocodile Clip
High-voltage Clip
This ignition pick-up is applied in the
following situaƟ ons: Secondary-distributor
igniƟ on analysis, Secondary-simultaneous
ignition analysis and Secondary-direct
igniƟ on analysis.
It has three ends: BNC connector (for
connecƟ ng to CH1/CH2/CH3/CH4),
crocodile clip (for Grounding) and high-
voltage clip (for connecƟ ng high-voltage
line), near which has an aƩ enuator
equipped for high-pressure aƩ enuaƟ on
to prevent the Scopebox from being
impacted.
*Notes:
1). The high voltage clip should be
clamped on the insulated lead (COP
Extension Cord, see Item 8) instead
of on the spark plug to prevent
breakdown and electric shock.
2). Please try to keep an instance of 2 inch
from other high-voltage line to avoid
the interference.
To Next Page
