LAUNCH PAD V
User's Manual
73
6 External trigger
External trigger signal
(*It only applies if the
Scopebox failed to trigger the signal itself.)
7
B-shaped data I/
O port
Connect to the diagnostic tool via data
cable so that the signal can be displayed on
the tool.
8 Power interface
To provide power to it via the power adapter
or battery clamps cable.
9
Communication
indicator
It blinks in process of data communication.
10 Running LED
It remains steady green after the Scopebox
is running.
11 Power LED
It keeps solid red after the Scopebox is
powered on.
7.3.2.2 Scopebox accessories
The Scopebox includes the auto test leads, secondary pickup cable
for 4-channel oscilloscope, crocodile clips for 4-channel oscilloscope,
etc. See the packing list attached to the product for the detailed
accessories.

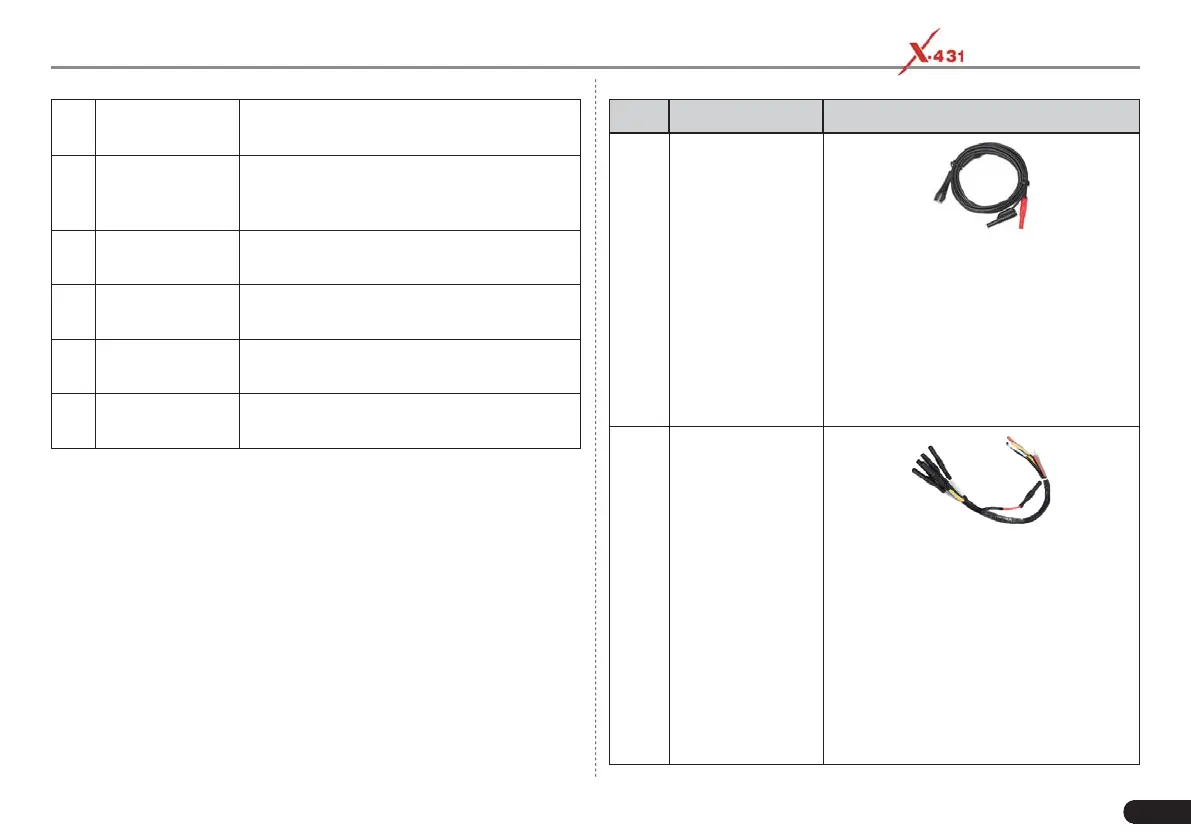

No. Name Description
1
BNC to 4mm Test
Leads
Test lead of a male BNC connector to (2)
4mm connectors. It is a kind of special line
for assisting automobile Scopebox to test
various types of signals. 4mm connectors
are coded in two colors: black (earth
wire) and red (positive pole which should
be connected with the 6-way Breakout
Leads). Moreover, it can also work with
the 20:1 Attenuator.
2
6-way Breakout
Leads
Each lead has 6 blades wired to 6 sockets,
allowing you to insert it between a plug
and socket pair, other ends are 6 (4 mm)
sockets which can be connected to the
BNC to 4mm Test Lead.
With these 6-way leads, you will be able to
test most of the sensors and actuators on
all makes and models of vehicle, including
MAP, temperature, throƩ le posiƟ on and
airfl ow sensors, fuel pumps, primary
igniƟ on circuits and fuel injectors.
