69
*Notes:
• Please start the engine before test.
• It is unnecessary to perform this test after finishing battery health test,
but battery test must be done before undergoing this test.
Follow the steps below to proceed:

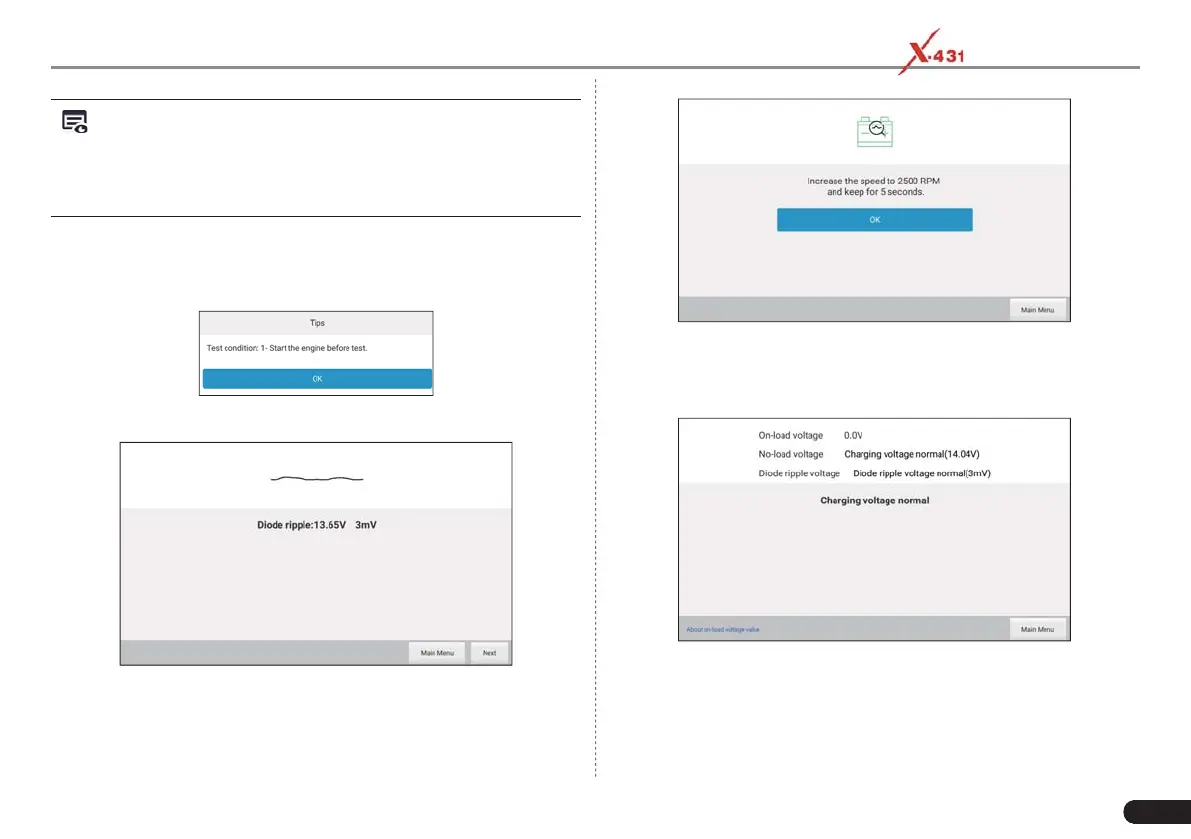

1. Tap "Charging Health Test" on the battery main menu, the following
operation tips will pop up on the screen.
2. Start the engine and tap "OK" to charge the battery.
3. After detecting the charging voltage and diode ripple, tap "Next" to
go to the next step.
4. Follow the prompts on the screen to increase the speed to 2500
RPM and keep for 5 seconds. Tap "OK", the screen will display the
test result.

Launch X-431 PAD V Specifications

General

Operating System	Android 9.0
Processor	Octa-core 2.0 GHz
RAM	4 GB
Storage	64 GB
Resolution	1920 x 1200
Battery	7000 mAh
Display	10.1 inch
Connectivity	Wi-Fi, Bluetooth
Ports	USB, HDMI
Operating Voltage	9V - 36V
Supported Protocols	OBDII, CAN
