2.2.2 Installation Space
Reserve enough surrounding space for effective cooling.


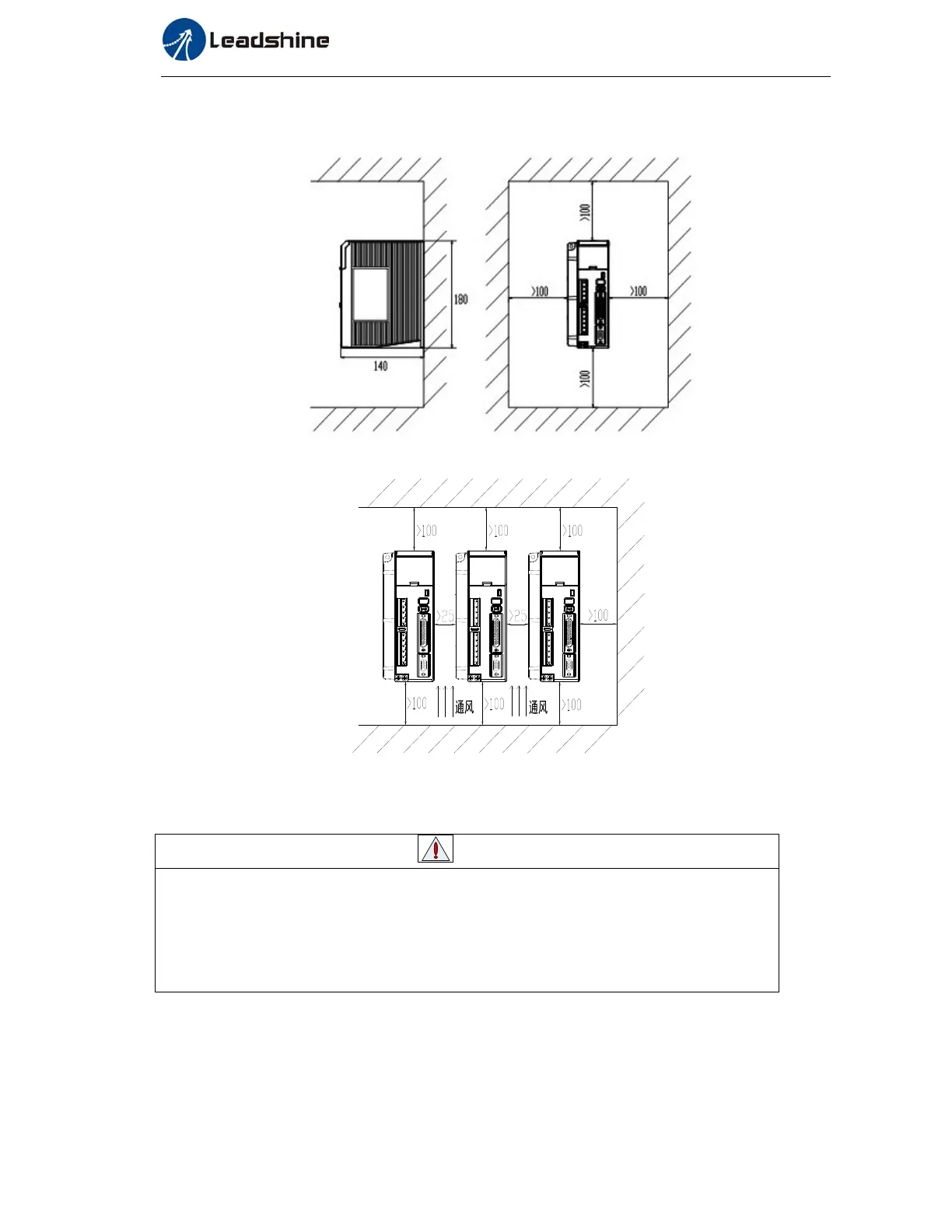

Figure2.2InstallationSpaceforSingleDriver

Figure2.3InstallationSpaceforseveral Drivers
2.3 Servo Motor Installation
Notice
 Don’t hold the product by the cable, motor shaft or encoder while transporting it.
 No knocking motor shaft or encoders, prevent motor by vibration or shock.
 The motor shaft can’t bear the load beyond the limits.
 Motor shaft does not bear the axial load, radial load, otherwise you may damage the motor.
 Use a flexible with high stiffness designed exclusively for servo application in order to make
a radial thrust caused by micro misalignment smaller than the permissible value. 
 Install must be steady, prevent drop from vibrating.
