UserManualforELD2Servo
_END means that path is E-stop.
5．Test run

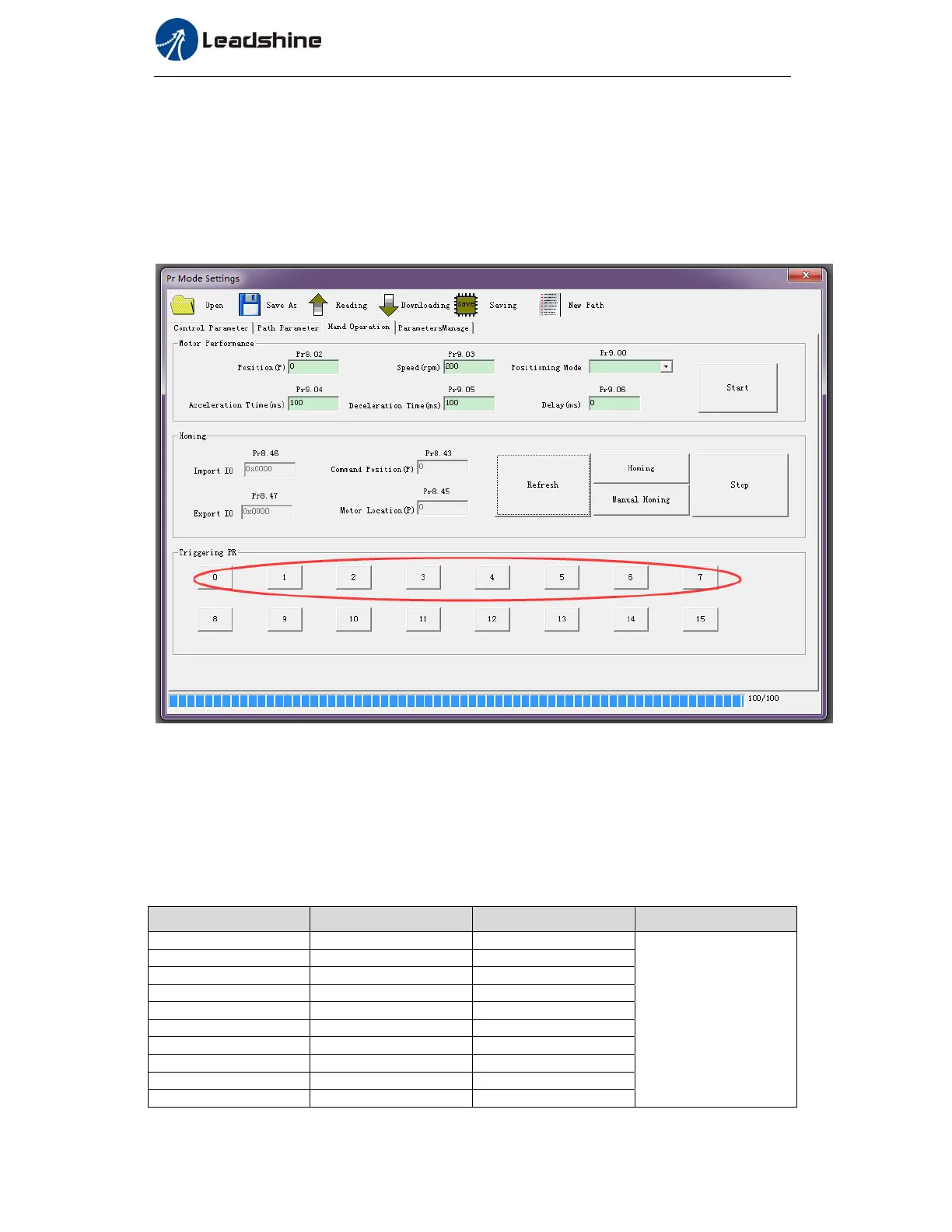

After confirming that the parameters are set correctly, the test begins. The interface is shown
below
Click the number marked red in the figure and click start to run according to the speed in the path
parameter configuration diagram. Click the corresponding number and click to run at the configured
speed. If not, check that the parameters are set correctly
PR-mode manual operation diagram
7.6 RS485 Parameter address
Following are E LD2 parameter address，apply to DSP software version V2.10
【monitor d28 no=LdxxxF，of which “xxx” is DSP software version number】，communication protocol
is Modbus RTU protocol.
Parameter Address （decimalism） Address（HEX） Data Width
Pr0.00~Pr0.24 0~24 0x0~0x18
16 bit data
Pr1.00~Pr1.39 25~64 0x19~0x40
Pr2.00~Pr2.29 65~94 0x41~0x5E
Pr3.00~Pr3.29 95~124 0x5F~0xD6
Pr4.00~Pr4.49 125~174 0x7D~0xFE
Pr5.00~Pr5.39 175~214 0xAF~0xD6
Pr6.00~Pr6.39 215~254 0xD7~0xFE
Pr7.00~Pr7.91 255~349 0xFF~0x15D
Pr8.00~Pr8.49 24576~24625 0x6000~0x6031
Pr9.00~Pr9.127 25088~25215 0x6200~0x627F
