42
UserManualforELD2Servo
Chapter 5 Alarm and Processing
5.1 Alarm List
Protection function is activated when an error occurs, the driver will stop the rotation of servo motor, and
the protuner software will automatically display the corresponding fault error code. The history of the error
can be viewed on data monitoring mode. error logging submenu displays like:“
”.
The error code displays like:
E
‐‐‐
Figure5‐1PanelAlarmDisplay

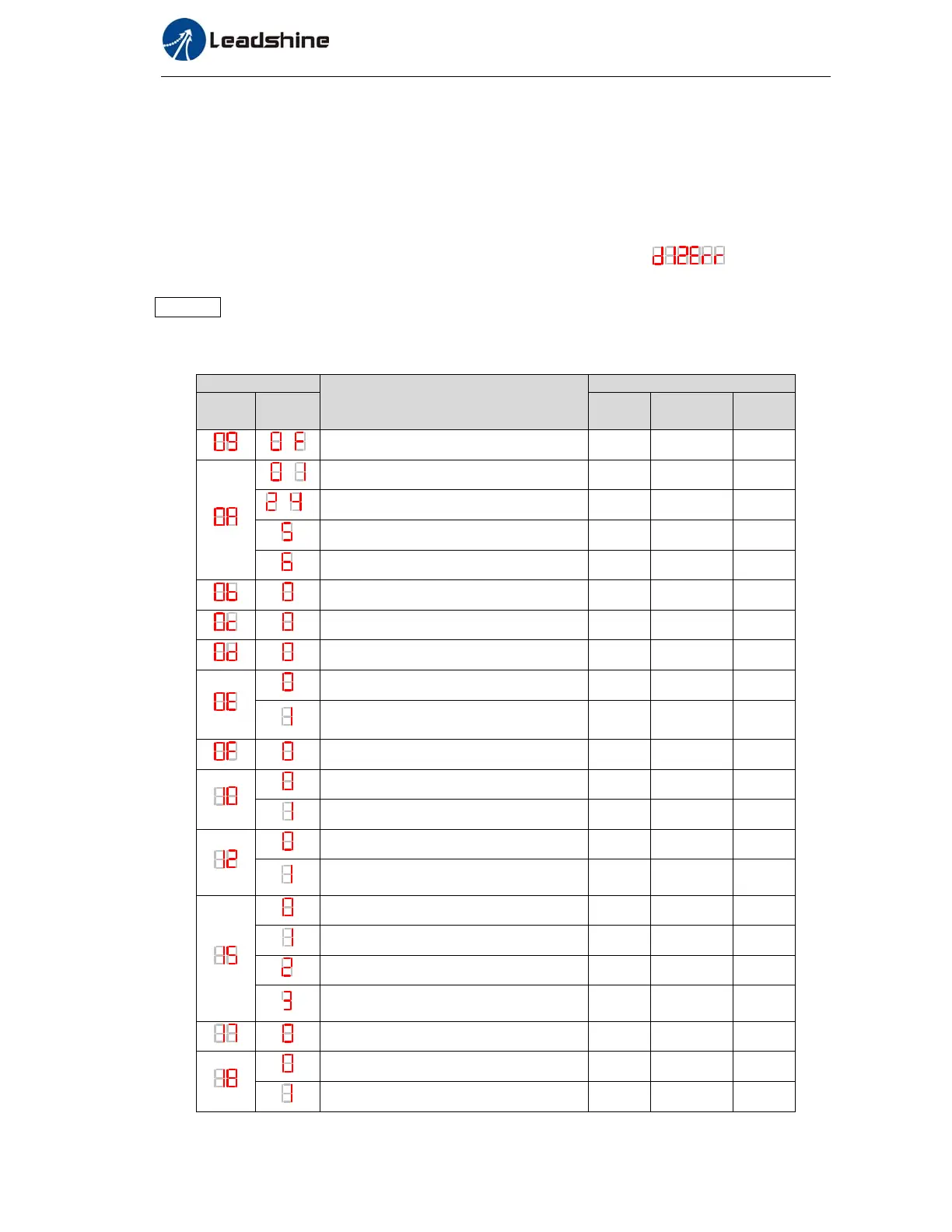

Table5.1ErrorCodeList
Error code
content
Attribute
Main Sub history
Immediate
stop
Canbe
cleared
~
FPGA communication error
●
~
Current detection circuit error
●
~
Analog input circuit error
●
DC bus circuit error
●
Temperature detection circuit error
●
Control power under-voltage
●
DC bus over-voltage
●●
DC bus under-voltage
●●
Over-current
●
over -current of intelligent power
module(IPM)
●
Driver over-heat
● ●
Motor over-load
●●
Motor overload/driver overload
Resistor discharged circuit overload
● ●
over -current of intelligent power
module(IPM)
Encoder wiring error
●
Encoder communication error
Encoder initial position error
●
Multiple turn absolute value encoder
battery error
Encoder data error
● ●
Too large position pulse deviation
● ● ●
Too large velocity deviation
● ● ●
