UserManualforELD2Servo
Chapter 2 Installation
2.1 Storage and Installation Circumstance
Table2.1ServoDriver,ServoMotorStorageCircumstanceRequirement
Item ELD2 series driver ELDM low voltage servo motor
Temperature -20-80℃ -25-70℃
Humility Under 90%RH (free from condensation) Under 80%RH(free from condensation)
Atmospheric
environment
Indoor(no exposure)no corrosive gas or
flammable gas, no oil or dust
Indoor(no exposure)no corrosive gas or
flammable gas, no oil or dust
Altitude Lower than 1000m Lower than 2500m
Vibration Less than 0.5G (4.9
m
/s
2
) 10-60Hz (non-continuous working)
Protection
level
IP00(no protection) IP54

Table2.2ServoDriver,ServoMotorInstallationCircumstanceRequirement
Item ELD2 series driver ELDM low voltage servo motor
Temperature
0‐55℃‐25‐40℃
Humility
Under90%RH(free from condensation) Under90%RH(free from condensation)
Atmospheric
environment
Indoor(no exposure)no corrosive gas or
flammable gas, no oil or dust
Indoor(no exposure)no corrosive gas or
flammable gas, no oil or dust
Altitude Lower than 1000m Lower than 2500m
Vibration Less than 0.5G (4.9
m
/s
2
) 10-60Hz (non-continuous working)
Protection
level
IP00(no protection) IP54
2.2 Servo Driver Installation
Notice
 Must install in control cabinet with sufficient safeguarding grade.
 Must install with specified direction and intervals, and ensure good cooling condition.
 Don’t install them on inflammable substance or near it to prevent fire hazard.

2.2.1 Installation Method
Install in vertical position ,and reserve enough space around the servo driver for ventilation.
Here is the installation diagram:


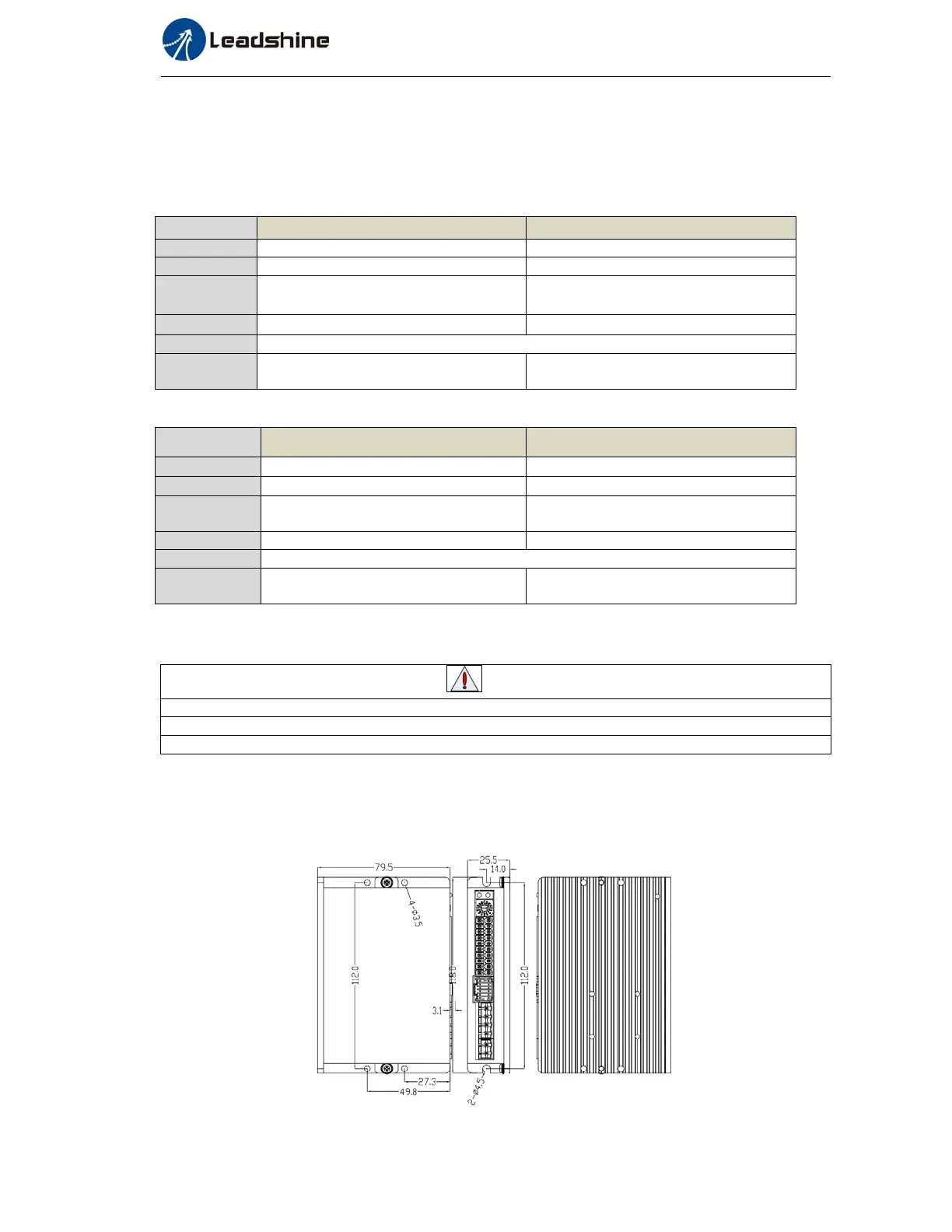

Figure2.1installationmethodofdriverELD2‐400
