WaveSurfer DSO
WS-OM-E Rev B 33

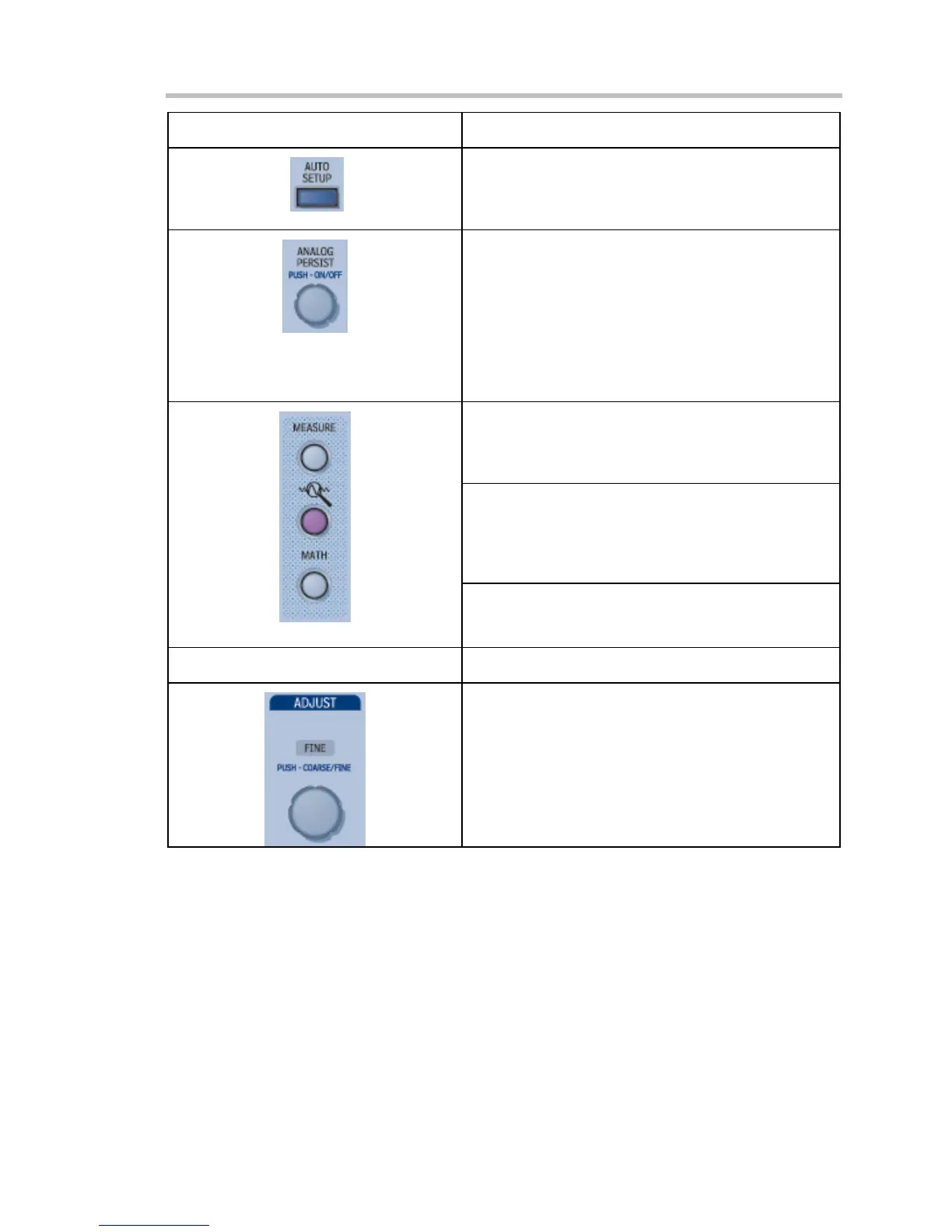

Special Features:
Auto Setup automatically sets the scope's horizontal
timebase (acquisition system), vertical gain and offset,
as well as trigger conditions, to display a wide variety
of signals.
Analog Persist provides a three dimensional view of
the signal: time, voltage, and a third dimension related
to the frequency of occurrence, as shown by a color-
graded (thermal) or intensity-graded (analog) display.
Push the button to turn persistence on, then continue
pushing the button to cycle through analog and color-
graded persistence, and finally to turn persistence off.
When color-graded persistence is selected, you can
rotate the knob to vary the saturation level.
Pushing the Measure button opens the Measure
dialog, which enables you to set up six parameter
measurements with statistics. Push again to close the
measure dialog.
The QuickZoom button toggles zooms of all displayed
channel traces on and off. If there is a math trace
displayed when you push this button, the math trace
will be automatically turned off to free a slot for a
zoom trace.
Pushing the Math button opens the Math setup dialog
and turns on the math trace. Push again to close the
Math dialog.
General Control:
By default, the A
DJUST knob makes coarse
adjustments (that is, digits to the left of the decimal
point). Press the A
DJUST knob to toggle to Fine and
adjust digits to the right of the decimal point. To enter
exact values, you can also display a keypad by
touching twice inside a data entry field. Then use the
keypad to type in the value.
