WaveSurfer DSO
WS-OM-E Rev B 43
Restoring Software
Restarting the Application

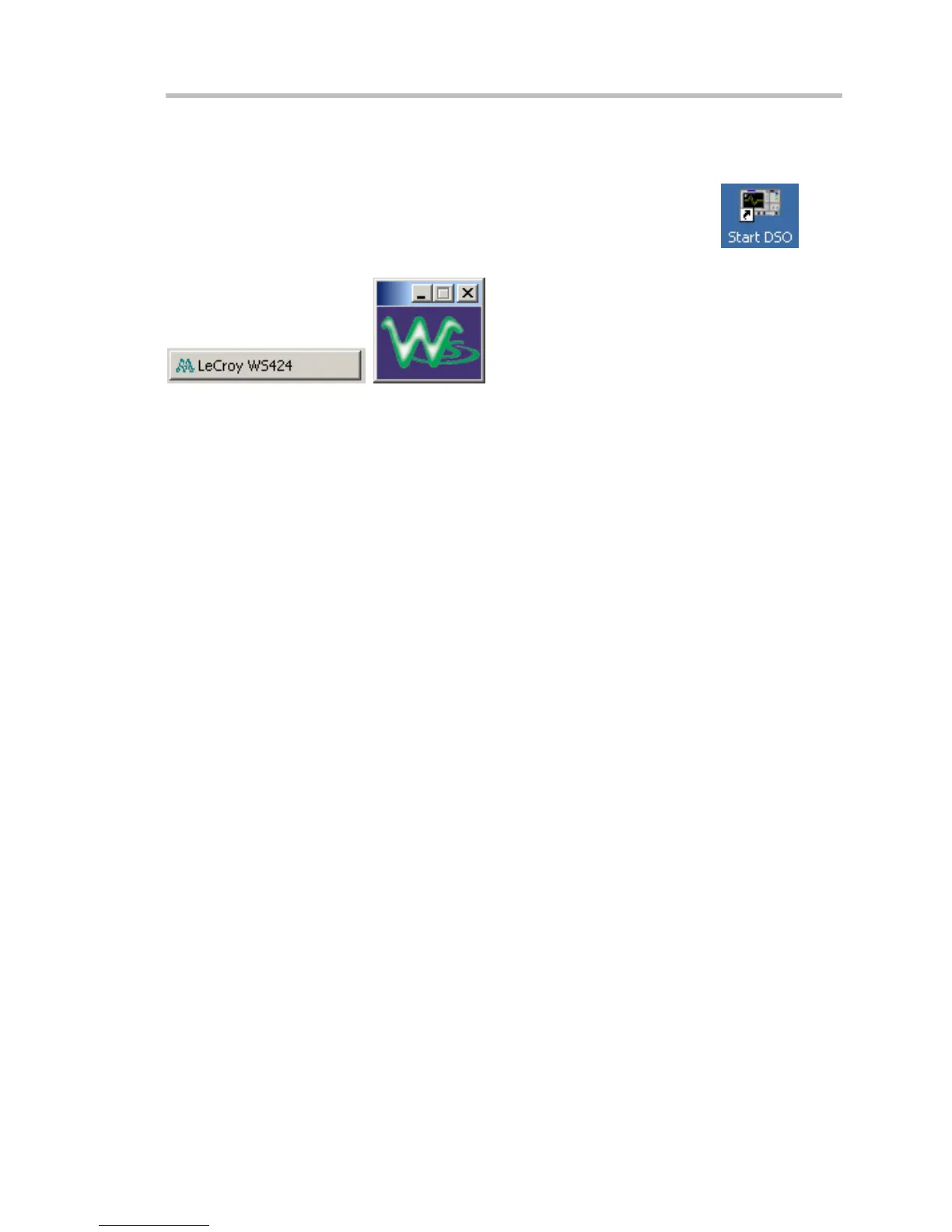

Upon initial power-up, the scope will load the instrument application software automatically. If you
exit the application and want to reload it, touch the shortcut icon on the desktop:
.
If you minimize the application, touch the appropriate task bar or desktop button to maximize it:
.
Restarting the Operating System
If you need to restart the Windows® operating system, you will have to reboot the scope by
pressing and holding in the power switch for 10 seconds, then turning the power back on.
CONNECTING TO A SIGNAL
ProBus Interface
LeCroy's ProBus® probe system provides a complete measurement solution from probe tip to
oscilloscope display. ProBus allows you to control transparent gain and offset directly from your
front panel. It is particularly useful for voltage, differential, and current active probes. It uploads
gain and offset correction factors from the ProBus EPROMs and automatically compensates to
achieve fully calibrated measurements.
This intelligent interconnection between your instrument and a wide range of accessories offers
important advantages over standard BNC and probe ring connections. ProBus ensures correct
input coupling by auto-sensing the probe type, thereby eliminating the guesswork and errors that
occur when attenuation or amplification factors are set manually.
