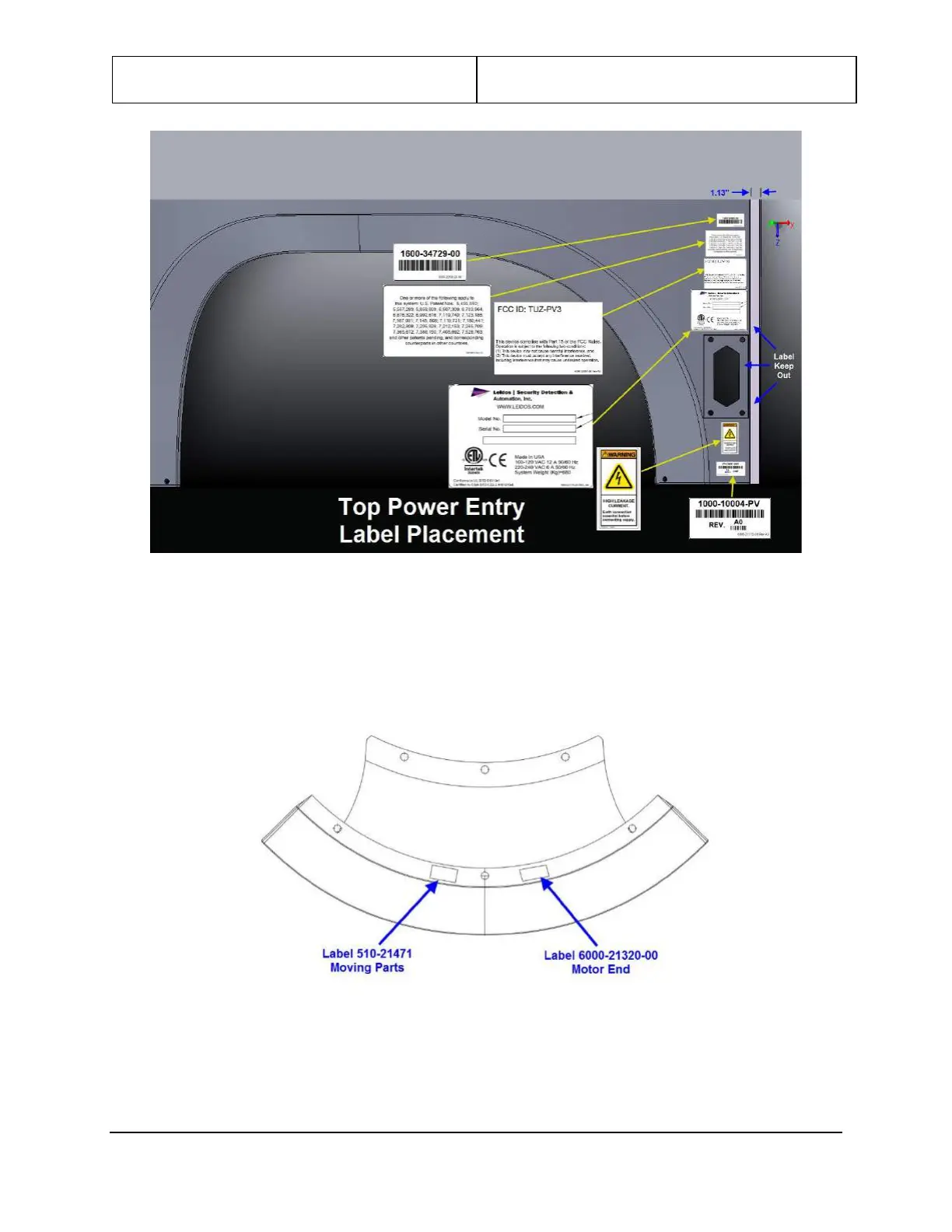

Figure 116: Labeling for Top Power Entry
9. Ensure the labels are pressed onto the panel with no bubbles or edges sticking up.
10. Add labels 6000-21320-00 and 510-21471 to the one entrance/exit panel that covers the motor
end of the upper frame. See Figure 117.
Figure 117: Label position for Entrance/Exit Panel on Motor End
