5.0 Genie Lift Assembly
NOTE:
Genie Lift equipment requires inspection to be performed by a qualified inspection technician on an
annual basis at a minimum. Each owner of Genie Lift equipment should have it inspected and tested.
If inspection is required, hire a local inspection company to have the Genie Lifts inspected and tested
per local country laws and regulations.
PRE-USE INSPECTION REQUIREMENT:
After assembling a Genie Lift and prior to use for the first time at a field site location, the Leidos user
must perform a written inspection of the Genie Lift. The Genie Lift Pre-Use Inspection Form must be
completed in its entirety prior to use and is provided in Appendix G or form # 8200-21134-09.
Return the form to Leidos Security Detection & Automation, Inc., EH&S Department after use on-site.
Forms can be faxed to 781-939-3996 or emailed to: joel.sadler@leidos.com.
5.1 Genie Lift Components

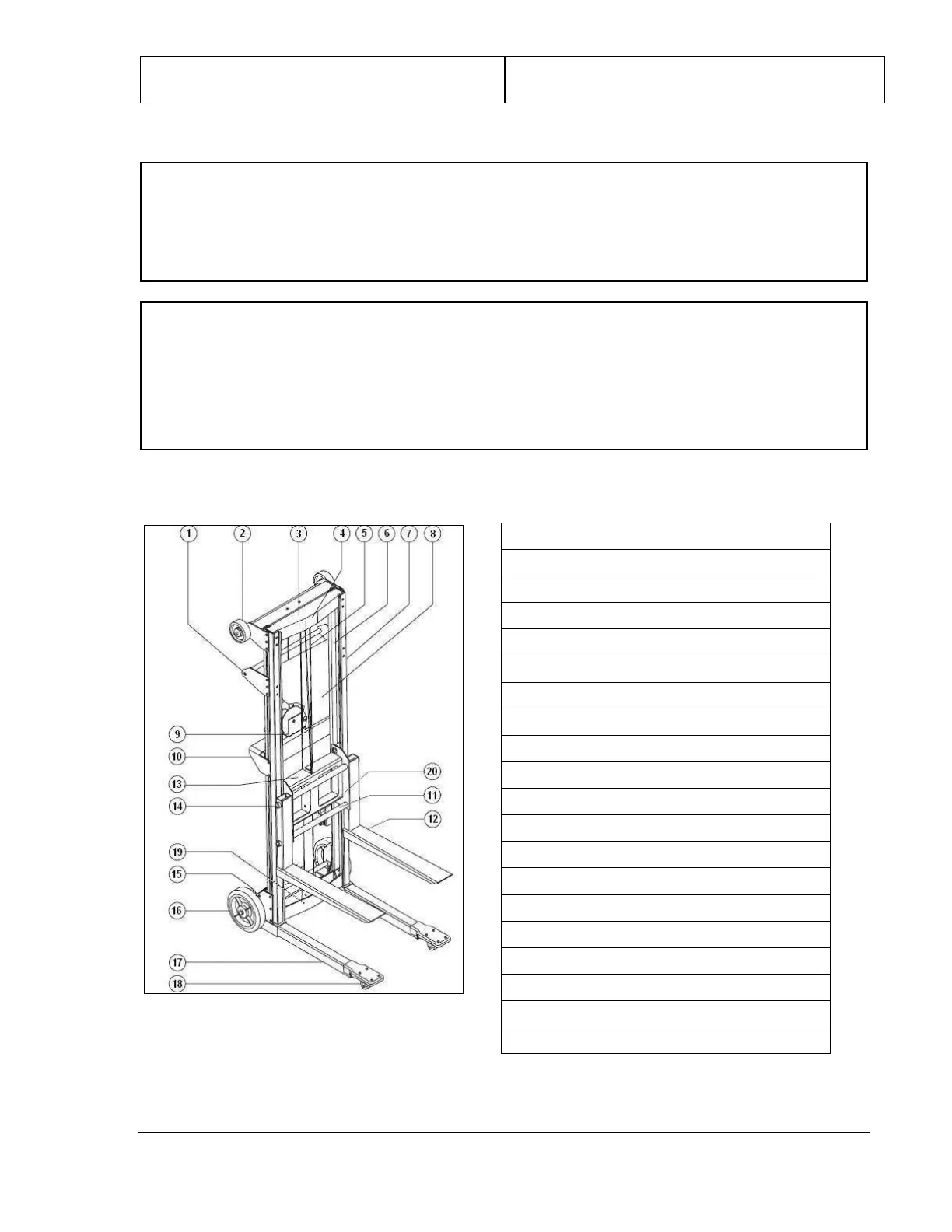

Figure 9: Genie Lift Components
1 Handle
2 Loading wheel
3 Upper inner frame pulley
4 Cable anchor
5 Cable
6 Inner frame
7 Outer frame
8 Decal plate
9 Winch
10 Winch mounting bracket
11 Fork mounting tube
12 Standard fork (modified fork not pictured)
13 Carriage
14 Fork lock pin
15 Leg lock pin (behind solid rubber wheel)
16 Solid rubber wheel
17 Leg – standard base
18 Caster – 2-inch dual wheel
19 Lower inner frame pulley
20 Carriage lock bar
