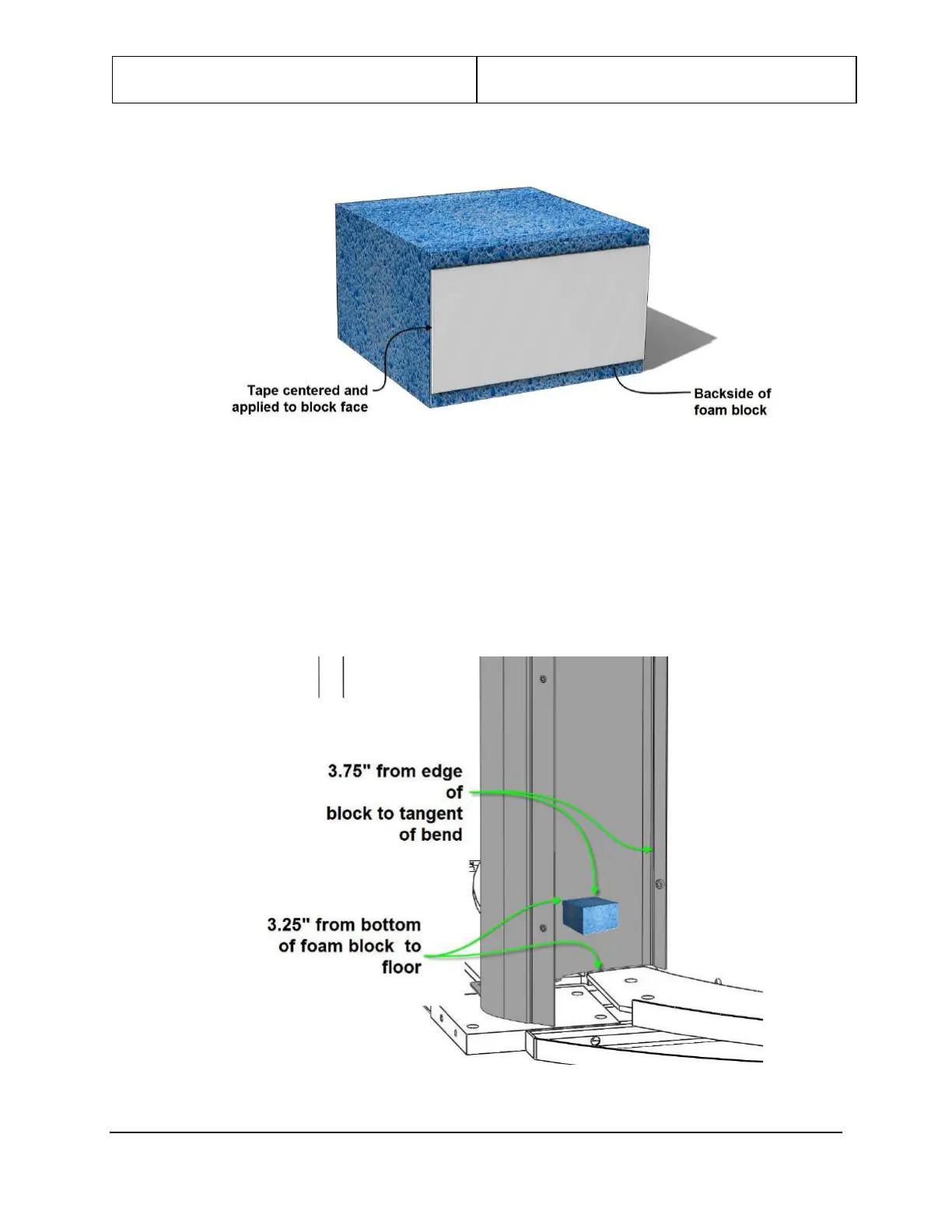

Figure 103: Foam Block
10. Pull the backing off of the double sided foam tape on the back of the foam block.
11. Place the foam block with the double sided tape so that the foam block edges aligns with the mark
put previously on the endcap face (see the following figures).
12. Place the barcode label for P/N 3000-22208-00 above the block on the endcay as shown in
Figure 105.
Figure 104: Foam Block Placement
