Leidos ProVision 3 - Figure 90: Ramp Assembly

To Next Page

To Previous Page

ProVision 3 Installation Manual

8100-35521-00

Rev. A1

Leidos Security Detection & Automation, Inc. – Proprietary Page 81 of 119

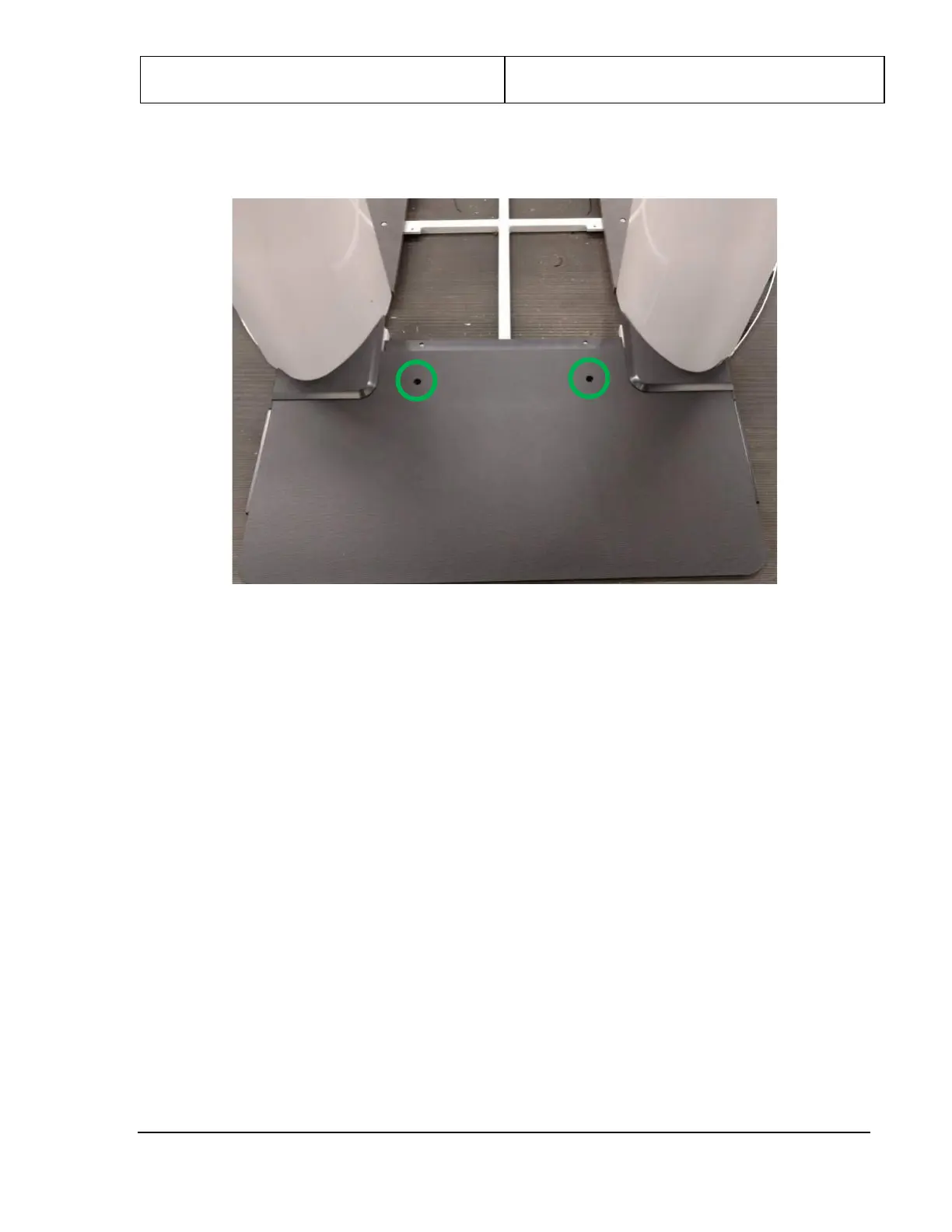

6. The ramp assembly is secured with two M8 x 25mm SHC screws (0201-10018-25) as shown circled

in green in the following figure. Tighten the screws but do not over-tighten.

Figure 90: Ramp Assembly

7. Repeat steps 4 and 5 for the other ramp assembly at the opposite end of the scanner.
