ProVision 3 Installation Manual

8100-35521-00

Rev. A1

Leidos Security Detection & Automation, Inc. – Proprietary Page 46 of 119

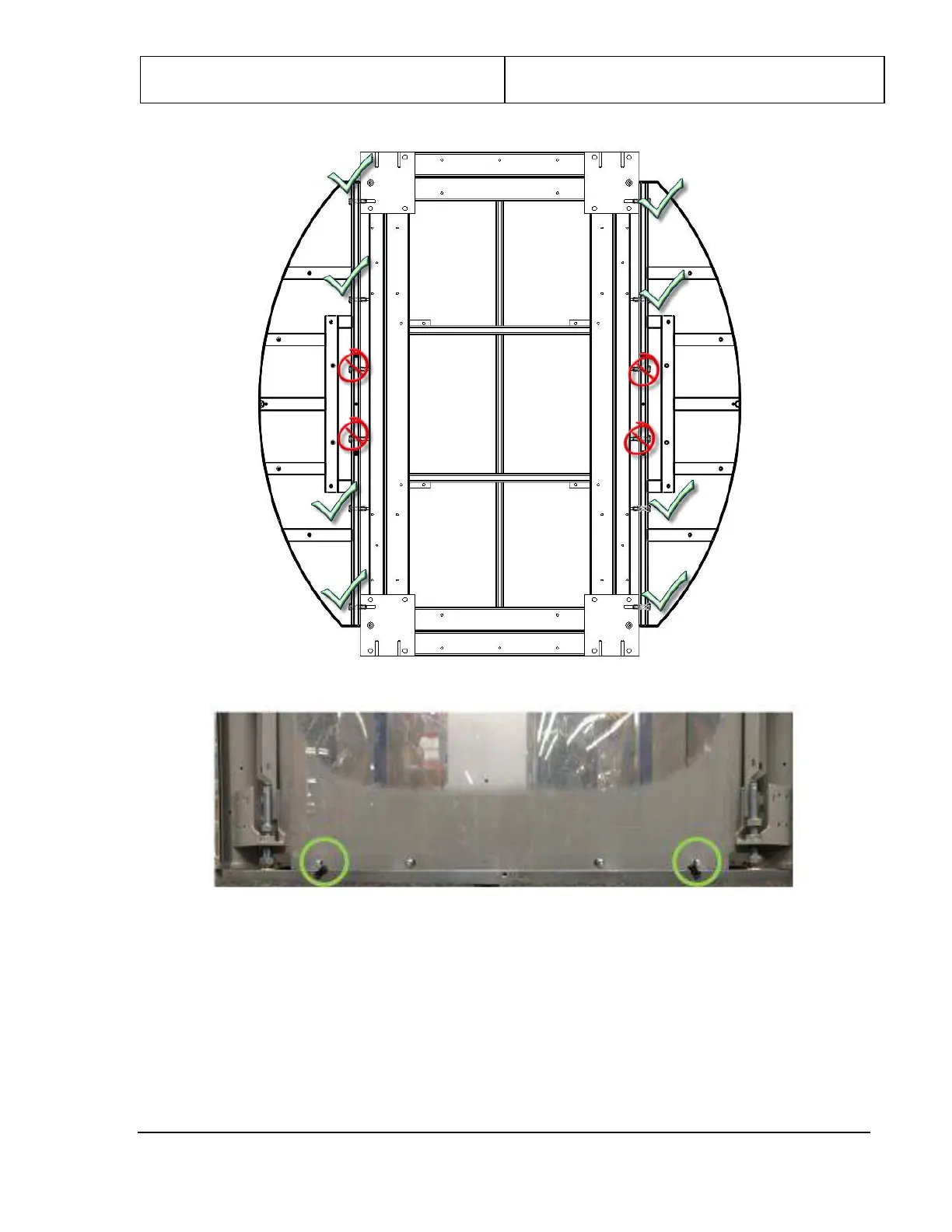

Figure 42: Bolt-On Side Frames

Figure 43: U-clip Installed on Frame

5. Repeat for the other frame along the other side.
