5.4008.8573.0 B
Safety 2-9
2.3.3 Safeguard on the Open Dump Pit

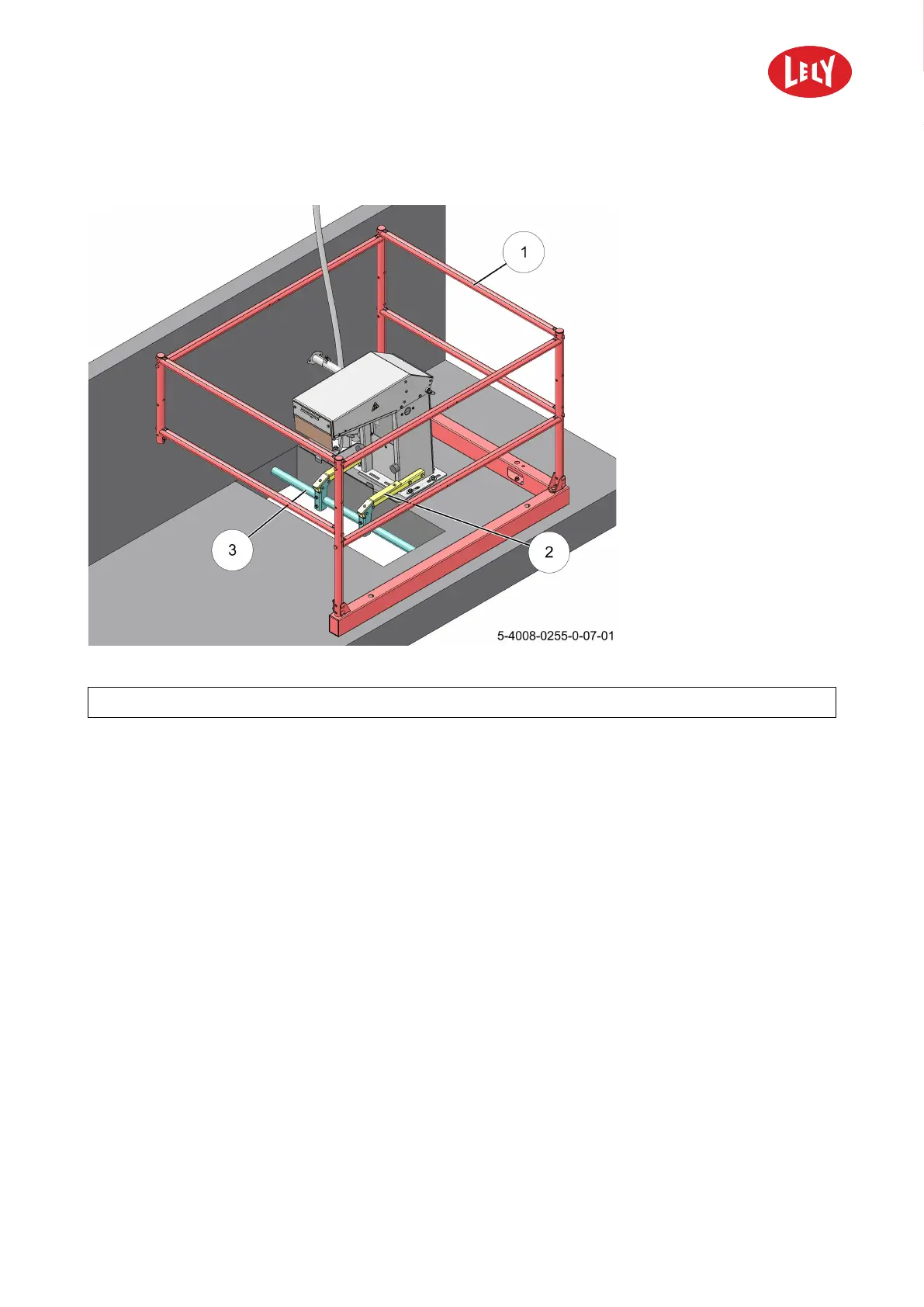

Figure 6. Dump pit
KEY: 1. Safeguard - 2. Brackets - 3. Bar
The safeguard (1) on a dump pit consists of metal bars that prevent people and animals from falling into
the dump pit.
The bar (3) that is connected to the brackets prevents people from falling in the dump pit during
maintenance. The brackets (2) prevent the machine from falling into the pit.
