5.4008.8573.0 B
4-2 Description and Operation
Three versions of the dump station are possible:
A syphon, if the collected manure is processed by the Lely Sphere.
A hole in the floor of 1200 mm x 500 mm (47.2 in x 19.7 in) in or near the barn.
A larger dump pit usually outside the barn.
4.2 Component Description
4.2.1 Barn Cleaner

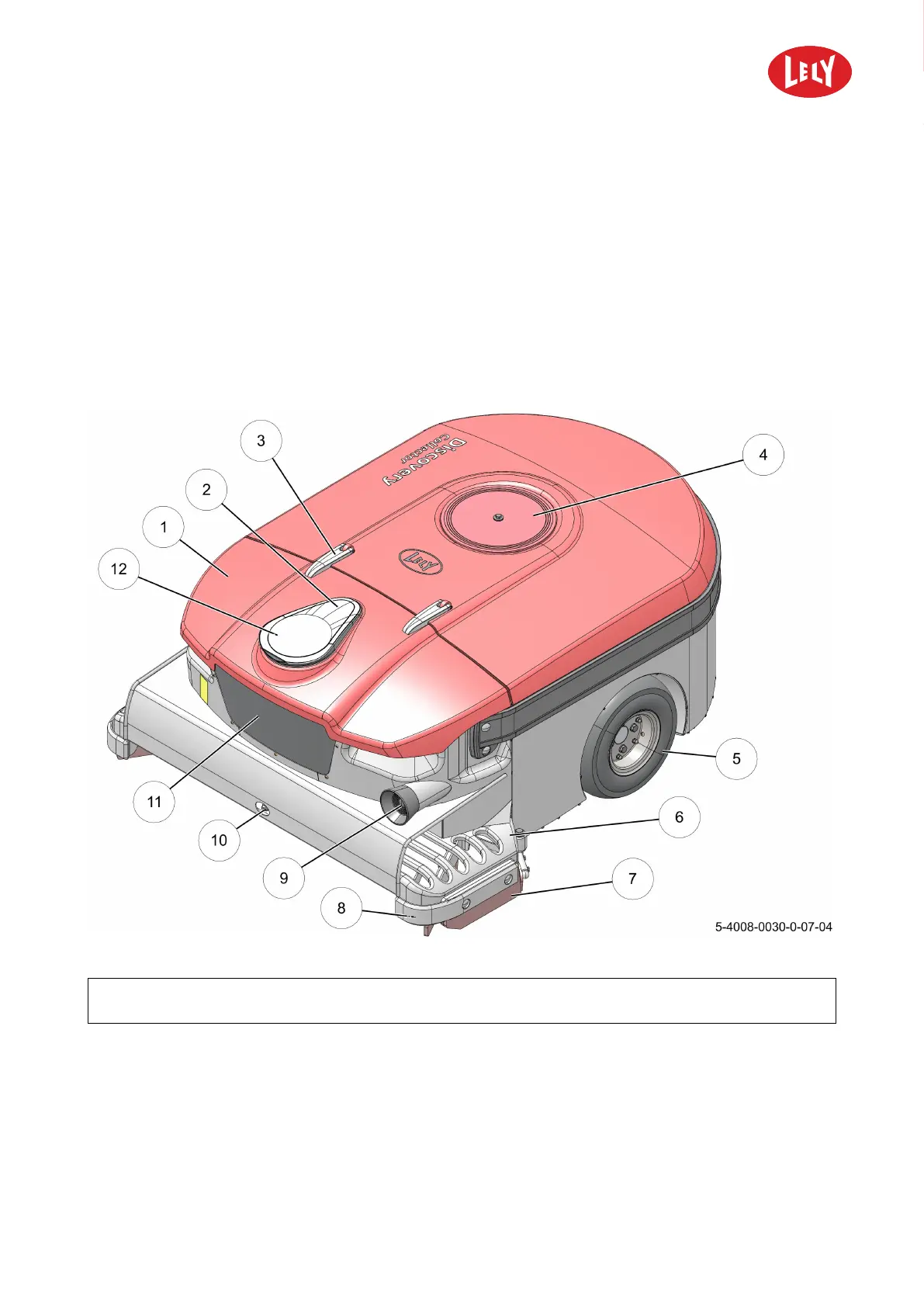

Figure 10. Overview front of the machine
KEY: 1. Top cover - 2. Antenna - 3. Hinge of the top cover - 4. Top air filter - 5. Wheel - 6. Safety guard - 7. Floor guide - 8. Wall
guide - 9. Water connector - 10. Front nozzle - 11. Front access panel - 12. Charge pad
