5.4008.8573.0 B
Description and Operation 4-9
The primary charger control box on the charger controls the primary pad. It has three indicator LEDs (6).
The lights are visible if you look on the left or right side along the machine. When the secondary control
box on the machine does not communicate with the chargers primary control box, the red LED will be
flashing to indicate that there is no communication. This is a normal behaviour when the machine is away
from the charger and does not indicate an error or failure.
The LEDs on the charger control box indicate the following:
Status
Power LED (green) Charging LED (blue)
Error or no connection
LED (Red)
No input
Off Off Off
Ready
On
Off Off
Charging
On
Flash Off
Charging complete
On On
Off
Error/not connected
On
Off Flash
On top of the charger control box there is an On/Off button to force charging to start when the battery of
the machine is completely discharged and unable to communicate.

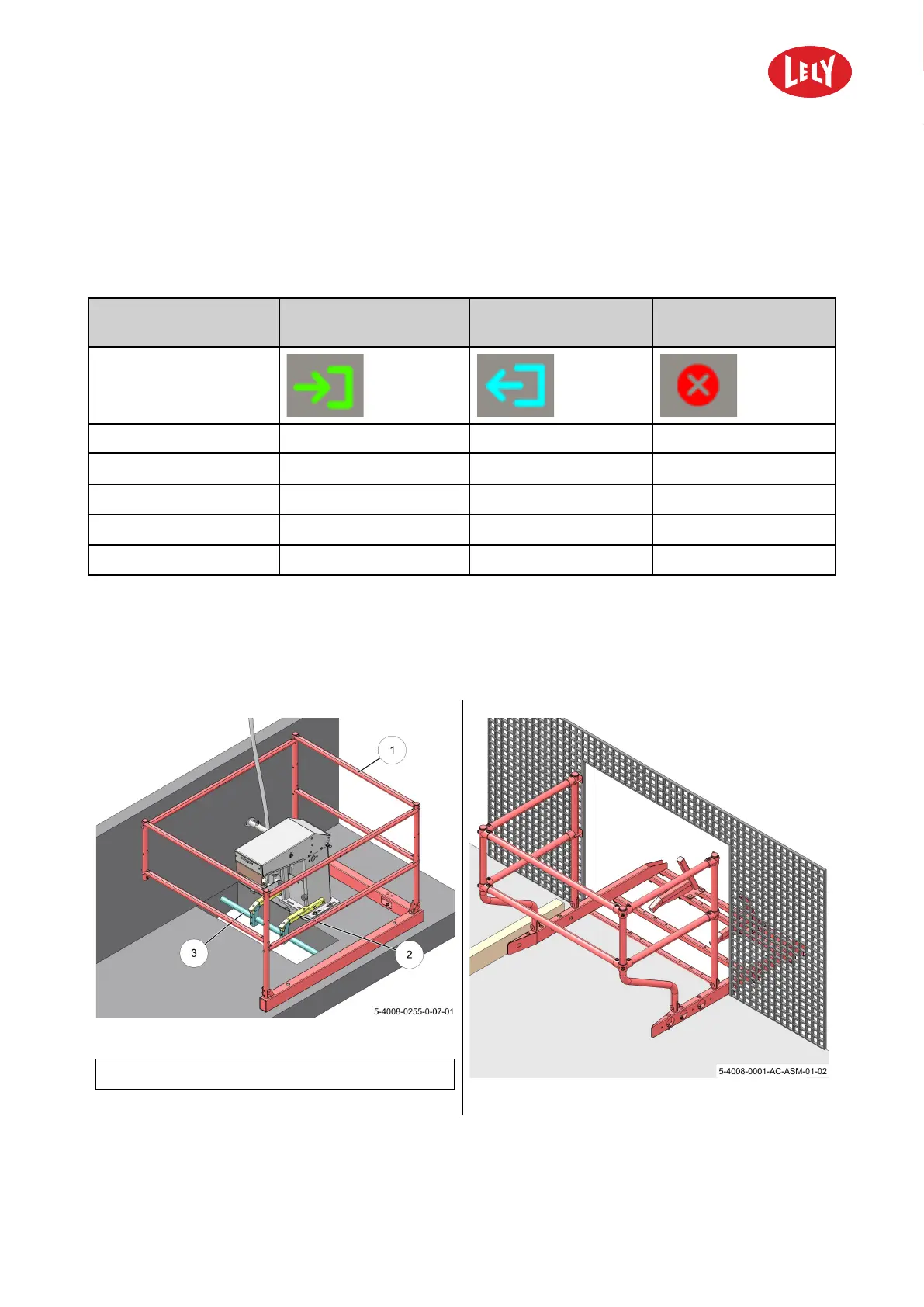

4.2.4 Dump Station
Figure 15. Dump station in the barn
KEY: 1. Safeguard - 2. Brackets - 3. Bar
Figure 16. Large pit outside the barn
The machine dumps the collected manure in a hole in the barn floor or outside the barn in a large pit. A
hole in the barn can be open or a syphon can be installed. Be aware that from an open hole without a
in novators in agriculture
