5.4008.8573.0 B
Maintenance 6-7
2. Manually drive the machine to the dump pit and empty the machine.
3. Manually drive the machine away from the charger to disconnect it.
4. Manually drive the machine to a clean and quiet location, which is safe away from manure gasses.
5. Block the cow traffic.
6. Switch off the machine.
Remove and Clean

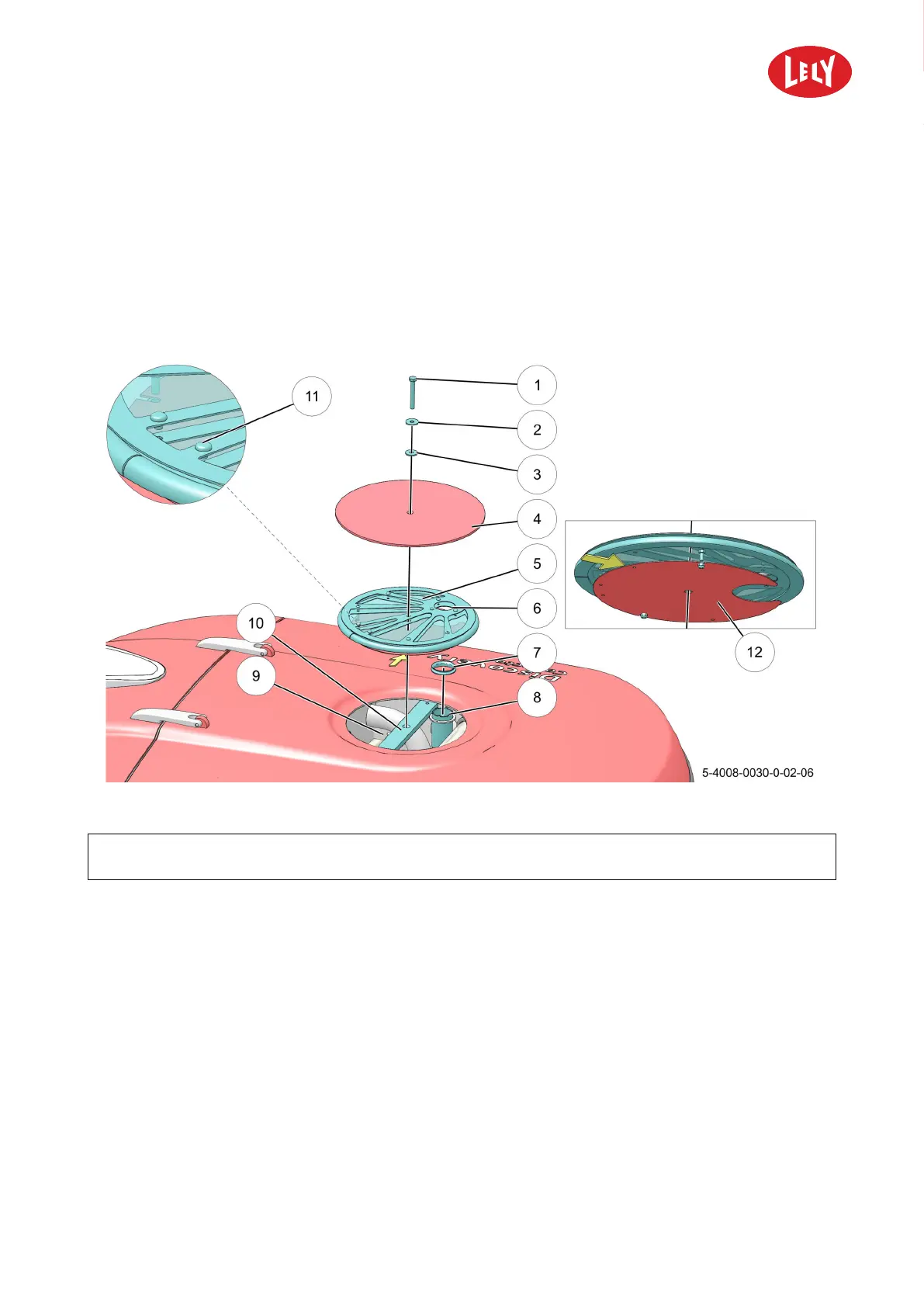

Figure 31. Clean the top air filter
KEY: 1. Bolt - 2. Washer - 3. Seal - 4. Cover - 5. Air filter - 6. Air hole - 7. Seal - 8. Air tube - 9. Manure tank - 10. Bracket - 11. Nail -
12. Splash plate (filter protector)
1. Remove the bolt (1), washer (2) and the seal (3).
2. Remove the top air filter cover (4).
3. Remove the air filter (5).
4. Clean the air filter (5) with water.
5. Clean between the air filter and the splash plate (12).
in novators in agriculture
